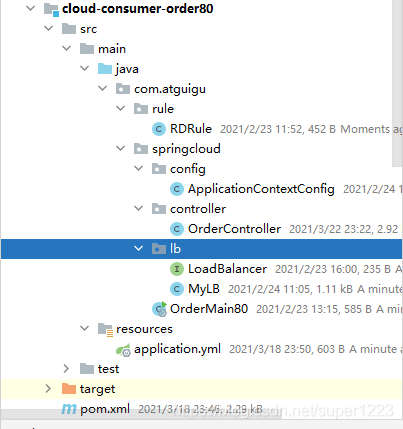

文件目录结构

文件目录结构很重要，特别注意的是rule文件要放在主启动类上一级位置，才能够扫描。

写pom

1. <dependencies>
2. <!–springboot 2.2.2–>
3. <dependency>
4. <groupId>org.springframework.boot</groupId>
5. <artifactId>spring-boot-starter-web</artifactId>
6. </dependency>
7. <!–Spring cloud Hoxton.SR1–>
8. <dependency>
9. <groupId>org.springframework.boot</groupId>
10. <artifactId>spring-boot-starter-actuator</artifactId>
11. </dependency>
12. <!–Spring cloud alibaba 2.1.0.RELEASE–>
13. <dependency>
14. <groupId>org.projectlombok</groupId>
15. <artifactId>lombok</artifactId>
16. <optional>true</optional>
17. </dependency>
18. <dependency>
19. <groupId>org.springframework.boot</groupId>
20. <artifactId>spring-boot-starter-test</artifactId>
21. <scope>test</scope>
22. </dependency>
23. <!–Eureka-Client–>
24. <dependency>
25. <groupId>org.springframework.cloud</groupId>
26. <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
27. </dependency>

因为eureka的依赖已经整合了ribbon的依赖，所以不用额外引入新的东西。

改yml

1. server:
2. port: 80
3. spring:
4. application:
5. name: cloud–book–consumer
6. eureka:
7. client:
8. register–with–eureka: false
9. fetch–registry: true
10. service–url:
11. defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka

主启动

1. @SpringBootApplication
2. @EnableEurekaClient
3. @RibbonClient(name = "CLOUD-BOOK-SERVICE", configuration = LoadBalanceRule.class) //更换轮询算法
4. public class RestTemplateMain80 {
5. public static void main(String[] args) {
6. SpringApplication.run(RestTemplateMain80.class,args);
7. }
8. }

业务逻辑

rules层

在图示文件目录下新建LoadBalanceRule.class，用于更换负载均衡算法。

1. @Configuration
2. public class LoadBalanceRule {
3. @Bean
4. public IRule iRule() {
5. // 定义为随机
6. return new RandomRule();
7. }
8. }

config层

开启restTemplate负载均衡
在config文件夹下创建LoadBalanceConfig.class

1. @Configuration
2. public class LoadBalanceConfig {
3. @Bean
4. @LoadBalanced //开启负载均衡
5. public RestTemplate getReatTemplate(){
6. return new RestTemplate();
7. }
8. }

controller层

新建BookController.class
写业务代码

1. @RestController
2. @Slf4j
3. public class BookController {
4. @Resource
5. private RestTemplate restTemplate;
7. public static final String PAYMENT_URL = "http://CLOUD-BOOK-SERVICE";
9. @GetMapping(value = "restTemplate/book/getAllBooks")//只要json数据时
10. public CommonResult getAllBooks(){
11. return restTemplate.getForObject(PAYMENT_URL+"/book/getAllBooks",CommonResult.class);
12. }
14. @GetMapping("restTemplate/book/getAllBooks2") //需要知道更多数据时，使用getForEntity方法
15. public CommonResult getAllBooks2(){
16. ResponseEntity<CommonResult> resultResponseEntit = restTemplate.getForEntity(PAYMENT_URL+"/book/getAllBooks",CommonResult.class);
17. if (resultResponseEntit.getStatusCode().is2xxSuccessful()){
18. log.info(resultResponseEntit.getStatusCode()+"\\t"+resultResponseEntit.getHeaders());
19. return resultResponseEntit.getBody();
20. }else {
21. return new CommonResult<>(444,"操作失败");
22. }
23. }
24. @GetMapping(value = "restTemplate/book/index")
25. public String index() {
26. return restTemplate.getForObject(PAYMENT_URL+"/book/index",String.class);
27. }
28. }

使用restTemplate+Ribboin实现服务调用和负载均衡完成。

手写Ribbon负载均衡算法 lb层

1.新建LoadBalancer接口，添加代码

1. public interface LoadBalancer {
2. ServiceInstance instances(List<ServiceInstance> serviceInstances);
3. }

2.新建实现类MyLB

1. @Component
2. public class MyLB implements LoadBalancer {
4. private AtomicInteger atomicInteger = new AtomicInteger(0);
5. //求第几次访问 自旋锁思想
6. public final int getAndIncrement(){
7. int current;
8. int next;
9. do {
10. current = this.atomicInteger.get();
11. next = current >=2147483647 ? 0 : current+1;
12. }while(!this.atomicInteger.compareAndSet(current,next));
13. System.out.println("***第几次访问next->"+next);
14. return next;
15. }
17. //负载均衡算法,实现roundRobin算法
18. @Override
19. public ServiceInstance instances(List<ServiceInstance> serviceInstances) {
21. int index = getAndIncrement() % serviceInstances.size();
23. return serviceInstances.get(index);
24. }
25. }

修改BookController

1. @RestController
2. @Slf4j
3. public class BookController {
4. @Resource
5. private RestTemplate restTemplate;
7. @Resource
8. private LoadBalancer loadBalancer;
10. @Resource
11. private DiscoveryClient discoveryClient;
13. public static final String PAYMENT_URL = "http://CLOUD-BOOK-SERVICE";
15. @GetMapping(value = "restTemplate/book/getAllBooks")//只要json数据时
16. public CommonResult getAllBooks(){
17. List<ServiceInstance> instances = discoveryClient.getInstances("CLOUD-BOOK-SERVICE");
18. if (instances == null || instances.size() <= 0){
19. return null;
20. }
21. ServiceInstance serviceInstance = loadBalancer.instances(instances);
22. URI uri = serviceInstance.getUri();
23. return restTemplate.getForObject(uri+"/book/getAllBooks",CommonResult.class);
24. }
26. @GetMapping(value = "restTemplate/book/index")
27. public String index() {
28. List<ServiceInstance> instances = discoveryClient.getInstances("CLOUD-BOOK-SERVICE");
29. if (instances == null || instances.size() <= 0){
30. return null;
31. }
32. ServiceInstance serviceInstance = loadBalancer.instances(instances);
33. URI uri = serviceInstance.getUri();
34. return restTemplate.getForObject(uri+"/book/index",String.class);
35. }
36. }

修改文件注解

• 删去主启动类的更换负载均衡算法注解

@RibbonClient(name = “CLOUD-BOOK-SERVICE”, configuration = LoadBalanceRule.class)

• 删去LoadBalanceConfig中开启负载均衡算法注解

@LoadBalanced

手写Ribbon算法并使用完成

以上就是Ribbon和RestTemplate实现服务调用与负载均衡的详细内容，更多关于Ribbon和RestTemplate服务与负载的资料请关注快网idc其它相关文章！
