引言

我们想要网格的服务发现、路由、熔断降级、负载均衡，这些流量治理都在数据面Envoy中执行才行。Envoy也提供的Filter机制来做这些功能，通常有以下方式：

• 通过C++代码自定义filter重新编译Envoy
• 使用Lua脚本扩展filter
• 使用wasm扩展Envoy

一、wasm工作原理

第一种C++编译学习成本过高，维护也困难，第二种适合用于实现简单功能可以，第三种是重点发展方向通过其他语言编写filter，通过wasm编译运行嵌入在Envoy中运行，通过可移植的二进制指令实现，以下特性：

动态加载到Envoy中执行

• 无需修改Envoy代码容易维护
• 支持较多开发语言比如tinygo
• 进程级隔离在VM沙箱运行部影响Envoy进程

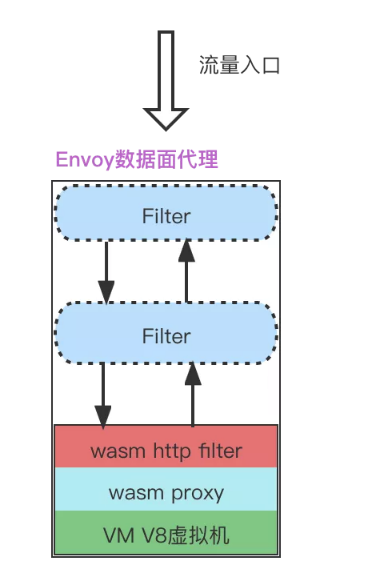

• 流量进过Envoy示意图:

二、wasm安装过程

安装Isito1.9.9

当前最新版本为v0.0.33，支持的Istio为1.9.X

1. https://github.com/solo-io/wasm/releases/

卸载原来的istio1.10版本，安装1.9.9

1. istioctl x uninstall –purge

istio1.9.9安装路径，具体安装过程见前面文章

1. https://github.com/istio/istio/releases/download/1.9.9/istio-1.9.9-linux-amd64.tar.gz

声明式挂载wasme

下面有详细的安装建议，生产环境建议使用声明式挂载：

1. https://docs.solo.io/web-assembly-hub/latest/tutorial_code/wasme_operator/

1.安装Wasme CRDs

1. kubectl apply -f https://github.com/solo-io/wasm/releases/latest/download/wasme.io_v1_crds.yaml
3. # kubectl apply -f wasme.io_v1_crds.yaml
4. customresourcedefinition.apiextensions.k8s.io/filterdeployments.wasme.io created

2.安装Operator components

1. kubectl apply -f https://github.com/solo-io/wasm/releases/latest/download/wasme-default.yaml
3. # kubectl apply -f wasme-default.yaml
4. namespace/wasme created
5. serviceaccount/wasme-operator created
6. serviceaccount/wasme-cache created
7. configmap/wasme-cache created
8. clusterrole.rbac.authorization.k8s.io/wasme-operator created
9. clusterrole.rbac.authorization.k8s.io/wasme-cache created
10. clusterrolebinding.rbac.authorization.k8s.io/wasme-operator created
11. clusterrolebinding.rbac.authorization.k8s.io/wasme-cache created
12. daemonset.apps/wasme-cache created
13. deployment.apps/wasme-operator created

3.校验是否安装成功

1. # kubectl get pod -n wasme
2. NAME READY STATUS RESTARTS AGE
3. wasme-cache-96mnm 1/1 Running 0 23s
4. wasme-cache-ktnpb 1/1 Running 0 23s
5. wasme-cache-w929m 1/1 Running 0 23s
6. wasme-operator-75bbf94974-nb684 1/1 Running 0 23s

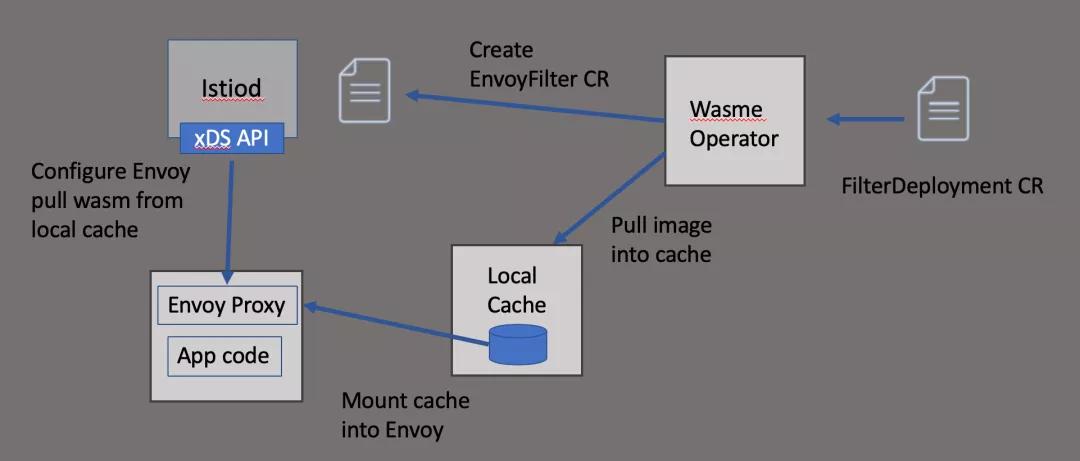

挂载工作原理

命令行安装

官方安装文档

1. https://docs.solo.io/web-assembly-hub/latest/tutorial_code/getting_started/

网络好的可以使用快速安装命令

1. curl -sL https://run.solo.io/wasme/install | sh

从install_cli.sh安装脚本看做了什么事情

1. if [ \”$(uname -s)\” = \”Darwin\” ]; then OS=darwin // Mac为darwinelse OS=linuxfi// 更名和授予执行权限cd \”$HOME\”mkdir -p \”.wasme/bin\”mv \”${tmp}/${filename}\” \”.wasme/bin/wasme\”chmod +x \”.wasme/bin/wasme\”// 添加到环境变量export PATH=\\$HOME/.wasme/bin:\\$PATH\”

Mac可以下载wasme-darwin-amd64，照着安装就是了。

1. export PATH=$PATH:/Users/yongliang/work/software_install/wasme/binsource ~/.bash_profilechmod +x /Users/yongliang/work/software_install/wasme/bin/wasmewasme –versionwasme version 0.0.33

三、wasm生成Filter

官方使用指南参见：

1. https://docs.solo.io/web-assembly-hub/latest/tutorial_code/build_tutorials/building_assemblyscript_filters/

先试用tinygo做个示例看看效果

1. wasme init melon-filterUse the arrow keys to navigate: ↓ ↑ → ← ? What language do you wish to use for the filter: cpp rust assemblyscript ▸ tinygo

执行后：

1. wasme init melon-filter✔ tinygo✔ istio:1.7.x, gloo:1.6.x, istio:1.8.x, istio:1.9.x

目录结构

1. -rw-r–r– 1 yongliang staff 83 11 15 19:26 go.mod-rw-r–r– 1 yongliang staff 676 11 15 19:26 go.sum-rw-r–r– 1 yongliang staff 1707 11 15 19:26 main.go-rw-r–r– 1 yongliang staff 162 11 15 19:26 runtime-config.json

runtime-config.json是wamse构建filter使用的，必须包含rootIds字段

1. { \”type\”: \”envoy_proxy\”, \”abiVersions\”: [\”v0-4689a30309abf31aee9ae36e73d34b1bb182685f\”, \”v0.2.1\”], \”config\”: { \”rootIds\”: [ \”root_id\” ] }}

main.go是生成的示例代码，主要在返回response头部Header添加了信息，修改成「”hello“，“melon”」

1. func (ctx *httpHeaders) OnHttpResponseHeaders(numHeaders int, endOfStream bool) types.Action { if err := proxywasm.SetHttpResponseHeader(\”hello\”, \”melon\”); err != nil { proxywasm.LogCriticalf(\”failed to set response header: %v\”, err) } return types.ActionContinue}

四、wasm构建Filter

Filter构建

构建的过程耗时较长，多等一会

1. wasme build tinygo /Users/yongliang/GoLandProjects/melon-filter -t xxx/base/melon-add-header:v0.1Unable to find image \’quay.io/solo-io/ee-builder:0.0.33\’ locally0.0.33: Pulling from solo-io/ee-builderdf27e1f7c31e: Pull complete 0a8813a60e2e: Pull complete 3c2cba919283: Pull complete 26f4837a47c0: Pull complete dd7b292cf068: Pull complete 4a4d78f042bc: Pull complete 9108a736d6a0: Pull complete 70ac09daaa76: Pull complete 809bdff17a4d: Pull complete 31fc029d676e: Pull complete 85533903f7c2: Pull complete f87e543b124a: Pull complete 93d78f561264: Pull complete 8ba3d0f61e41: Pull complete d511201136be: Pull complete Digest: sha256:94b6ce4624b0c4ed4cfa4f311c8af57083b538949b5c88ce62ef984f9b81ef66Status: Downloaded newer image for quay.io/solo-io/ee-builder:0.0.33Building with tinygo…go: downloading github.com/tetratelabs/proxy-wasm-go-sdk v0.1.1INFO[2146] adding image to cache… filter file=/tmp/wasme066130090/filter.wasm tag=\”xxx/base/melon-add-header:v0.1\”INFO[2146] tagged image digest=\”sha256:750d63889653e7117fcbc0831f10f0e1d3f7ec0c82fe5787b71d08a783e3393f\” image=\”xxx/base/melon-add-header:v0.1\”

构建完成，生成镜像

1. wasme listNAME TAG SIZE SHA UPDATEDxxxx/base/melon-add-header v0.1 247.6 kB 750d6388 15 Nov 21 20:23 CST

备注：官方构建教程参见

1. https://docs.solo.io/web-assembly-hub/latest/tutorial_code/build_tutorials/building_assemblyscript_filters/

镜像推送

将构建好的镜像需要推送到远程仓库

1. wasme push xxx/base/melon-add-header:v0.1INFO[0000] Pushing image xxxn/base/melon-add-header:v0.1 INFO[0004] Pushed xxx/base/melon-add-header:v0.1 INFO[0004] Digest: sha256:27aecb092318b2f922204ce722a34e5c2866baa168cf2f9f00c303b1982cfa9a

备注：官方推送教程参见

1. https://docs.solo.io/web-assembly-hub/latest/tutorial_code/push_tutorials/basic_push/

五、Filter生效部署

通过Kubernetes的自定义资源，通过FilterDeployment来实现，下面是melon-add-header.yaml内容

1. apiVersion: wasme.io/v1kind: FilterDeploymentmetadata: name: melon-add-header namespace: defaultspec: deployment: istio: kind: Deployment filter: image: xxx/base/melon-add-header:v0.1

执行部署命令

1. kubectl apply -f melon-add-header.yamlfilterdeployment.wasme.io/melon-add-header created

备注：官方教程参见

1. https://docs.solo.io/web-assembly-hub/latest/tutorial_code/wasme_operator/

六、生效验证

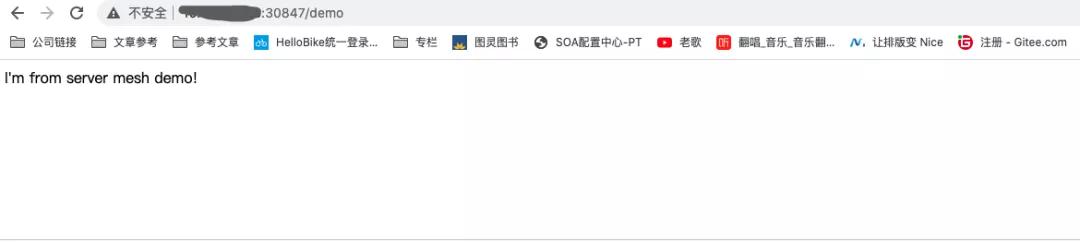

1.访问网格Mesh服务

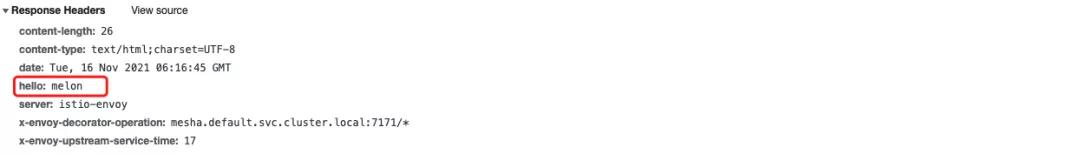

2.检验Response Headers添加了「hello:melon」
