IOS 绘制三角形的实例详解

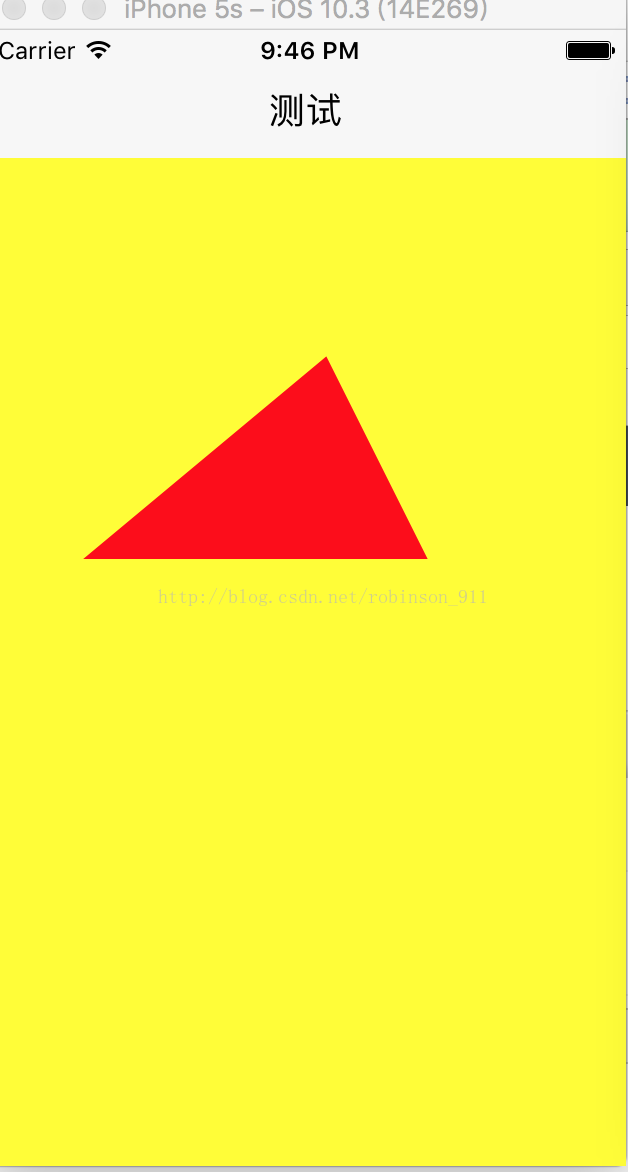

先上效果图
上面三角形的代码
?
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
|
- (void)ljTestView
{
CGPoint piont1;
piont1.x = 170;
piont1.y = 100;
CGPoint piont2;
piont2.x = 50;
piont2.y = 200;
CGPoint piont3;
piont3.x = 220;
piont3.y = 200;
ljDrawRect *_ljView = [[ljDrawRect alloc]initStartPoint:piont1 middlePoint:piont2 endPoint:piont3 color:[UIColor redColor]];
_ljView.frame = CGRectMake(0, 64, kDEVICEWIDTH, kDEVICEHEIGHT - 64);
_ljView.backgroundColor = [UIColor yellowColor];
[self.view addSubview:_ljView];
}
|
画三角形的类
?
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
|
#import "ljDrawRect.h"
@interface ljDrawRect ()
{
CGPoint _startPoint;
CGPoint _middlePoint;
CGPoint _endPoint;
UIColor *_color;
}
@end
@implementation ljDrawRect
#pragma mark -
#pragma mark - method
- (instancetype)initStartPoint:(CGPoint)startPoint
middlePoint:(CGPoint)middlePoint
endPoint:(CGPoint)endPoint
color:(UIColor*)color
{
self = [super init];
if (self)
{
_startPoint = startPoint;
_middlePoint = middlePoint;
_endPoint = endPoint;
_color = color;
self.backgroundColor = [UIColor clearColor];
}
return self;
}
- (void)drawRect:(CGRect)rect
{
CGContextRef context = UIGraphicsGetCurrentContext();
CGContextBeginPath(context);//标记
CGContextMoveToPoint(context, _startPoint.x, _startPoint.y);
CGContextAddLineToPoint(context,_middlePoint.x, _middlePoint.y);
CGContextAddLineToPoint(context,_endPoint.x, _endPoint.y);
CGContextClosePath(context);//路径结束标志，不写默认封闭
[_color setFill]; //设置填充色
[_color setStroke];//边框也设置为_color，否则为默认的黑色
CGContextDrawPath(context, kCGPathFillStroke);//绘制路径path
}
@end
|
如有疑问请留言或者到本站社区交流讨论，感谢阅读，希望能帮助到大家，谢谢大家对本站的支持！
