本文实例为大家分享了iOS实现圆环比例图的具体代码，供大家参考，具体内容如下

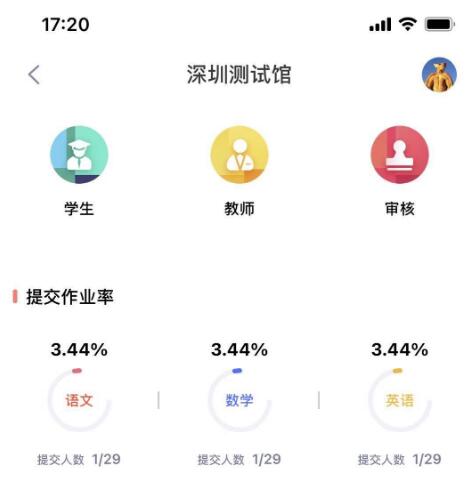

实现效果
实现方法
1. SSTCircleProgressView
?
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
|
@interface SSTCircleProgressView : UIView
/**
*进度条的角的类型
*/
@property (nonatomic,copy) CAShapeLayerLineCap lineCap;
/**
*进度条显示的文字
*/
@property (nonatomic,copy) NSString *progressLabelText;
/**
*进度条显示的文字的颜色
*/
@property (nonatomic,copy) UIColor *progressLabelTextColor;
/**
*进度条宽度
*/
@property (nonatomic,assign) CGFloat progressLineWidth;
/**
* 背景线条宽度
*/
@property (nonatomic,assign) CGFloat backgroundLineWidth;
/**
* 进度百分比
*/
@property (nonatomic,assign) CGFloat percentage;
/**
* 背景填充颜色
*/
@property (nonatomic,strong) UIColor *backgroundStrokeColor;
/**
* 进度条填充颜色
*/
@property (nonatomic,strong) UIColor *progressStrokeColor;
/**
* 距离边框边距偏移量
*/
@property (nonatomic,assign) CGFloat offset;
- (void)setProgress:(CGFloat)percentage animated:(BOOL)animated;
@end
|
?
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
|
#import "SSTCircleProgressView.h"
#define kDuration 1.0
#define kDefaultLineWidth 10
@interface SSTCircleProgressView()
@property (nonatomic,strong) CAShapeLayer *backgroundLayer;
@property (nonatomic,strong) CAShapeLayer *progressLayer;
@property (nonatomic,strong) UILabel *progressLabel;
@property (nonatomic,strong) NSTimer *timer;
@property (nonatomic,assign) CGFloat startAngle ; // M_PI*2
@property (nonatomic,assign) CGFloat endAngle ;
@end
@implementation SSTCircleProgressView
- (instancetype)initWithFrame:(CGRect)frame
{
self = [super initWithFrame:frame];
if (self) {
[self setBackgroundColor:[UIColor clearColor]];
[self createSubViews];
//init default variable
self.backgroundLineWidth = kDefaultLineWidth;
self.progressLineWidth = kDefaultLineWidth;
self.percentage = 0;
self.offset = 0;
self.startAngle = -M_PI_2;
self.endAngle = 0;
}
return self;
}
- (void)createSubViews
{
//self.progressLabel.text = @"0%";
self.progressLabel.textAlignment = NSTextAlignmentCenter;
self.progressLabel.font = FONTBOLD(12);
[self addSubview:self.progressLabel];
_backgroundLayer = [CAShapeLayer layer];
_backgroundLayer.frame = self.bounds;
_backgroundLayer.fillColor = nil;
_backgroundLayer.strokeColor = [UIColor lightGrayColor].CGColor;
_progressLayer = [CAShapeLayer layer];
_progressLayer.frame = self.bounds;
_progressLayer.fillColor = nil;
_progressLayer.strokeColor = [UIColor redColor].CGColor;
[self.layer addSublayer:_backgroundLayer];
[self.layer addSublayer:_progressLayer];
}
-(void)setProgressLabelText:(NSString *)progressLabelText{
_progressLabelText = progressLabelText;
self.progressLabel.text = progressLabelText;
}
-(void)setProgressLabelTextColor:(UIColor *)progressLabelTextColor{
_progressLabelTextColor = progressLabelTextColor;
self.progressLabel.textColor = progressLabelTextColor;
}
#pragma mark - Draw CircleLine
- (void)setBackgroundCircleLine
{
UIBezierPath *path = [UIBezierPath bezierPath];
path = [UIBezierPath bezierPathWithArcCenter:CGPointMake(self.center.x - self.frame.origin.x, self.center.y - self.frame.origin.y)
radius:(self.frame.size.width - _backgroundLineWidth)/2 - _offset
startAngle:self.startAngle
endAngle:self.endAngle
clockwise:NO];
_backgroundLayer.path = path.CGPath;
}
- (void)setProgressCircleLine
{
UIBezierPath *path = [UIBezierPath bezierPath];
path = [UIBezierPath bezierPathWithArcCenter:CGPointMake(self.center.x - self.frame.origin.x, self.center.y - self.frame.origin.y)
radius:(self.frame.size.width - _progressLineWidth)/2 - _offset
startAngle:self.startAngle
endAngle:self.endAngle
clockwise:NO];
_progressLayer.path = path.CGPath;
}
#pragma mark - Lazy Load
- (UILabel *)progressLabel
{
if (!_progressLabel) {
_progressLabel = [[UILabel alloc]initWithFrame:CGRectMake((self.bounds.size.width -100)/2, (self.bounds.size.height - 100)/2, 100, 100)];
}
return _progressLabel;
}
- (void)setBackgroundLineWidth:(CGFloat)backgroundLineWidth
{
_backgroundLineWidth = backgroundLineWidth;
_backgroundLayer.lineWidth = _backgroundLineWidth;
[self setBackgroundCircleLine];
}
-(void)setLineCap:(CAShapeLayerLineCap)lineCap{
_progressLayer.lineCap = lineCap;
[self setProgressCircleLine];
}
- (void)setProgressLineWidth:(CGFloat)progressLineWidth
{
_progressLineWidth = progressLineWidth;
_progressLayer.lineWidth = _progressLineWidth;
[self setProgressCircleLine];
}
- (void)setPercentage:(CGFloat)percentage {
_percentage = percentage;
}
- (void)setBackgroundStrokeColor:(UIColor *)backgroundStrokeColor {
_backgroundStrokeColor = backgroundStrokeColor;
_backgroundLayer.strokeColor = _backgroundStrokeColor.CGColor;
}
- (void)setProgressStrokeColor:(UIColor *)progressStrokeColor
{
_progressStrokeColor = progressStrokeColor;
_progressLayer.strokeColor = _progressStrokeColor.CGColor;
}
#pragma mark - progress animated YES or NO
- (void)setProgress:(CGFloat)percentage animated:(BOOL)animated
{
self.percentage = percentage;
_progressLayer.strokeEnd = _percentage;
if (animated) {
CABasicAnimation *animation = [CABasicAnimation animationWithKeyPath:@"strokeEnd"];
animation.fromValue = [NSNumber numberWithFloat:0.0];
animation.toValue = [NSNumber numberWithFloat:_percentage];
animation.duration = kDuration;
[_progressLayer addAnimation:animation forKey:@"strokeEndAnimation"];
}else{
[CATransaction begin];
[CATransaction setDisableActions:YES];
_progressLabel.text = [NSString stringWithFormat:@"%.0f%%",_percentage*100];
[CATransaction commit];
}
}
|
以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持快网idc。
