iOS画出精美的图表方法示例

前言

ios端画图表的库很多,今天给大家介绍一款很有名的库 – charts

借助charts,我们可以画出很精美的折线图、柱状图、饼状图、k线、雷达、混合图表等等

github地址

1.集成charts

这里只是做一个简略说明,具体的可以参考官方的集成方法 charts

如果使用的swift开发,可以直接import charts

如果使用oc开发,则需要混编,建立projectname-bridging-header.h桥接文件,这里详细介绍混编开发

利用cocoapods,在podfile文件中写入 : pod 'charts',然后pod install
在桥接文件中@import charts;
在需要使用charts的文件中,#import "projectname-bridging-header.h",就可以使用charts中的代码了

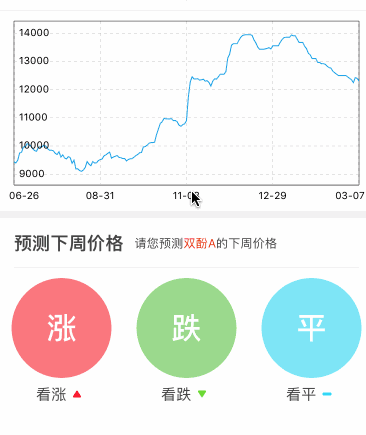

2.折线图

//初始化折线图

- (linechartview *)linechartview{

if(!_linechartview){

_linechartview = [[linechartview alloc] initwithframe:cgrectzero];

[_linechartview setextraoffsetswithleft:15 top:0 right:15 bottom:10];//距离边缘的间隙

_linechartview.delegate = self;//设置代理

_linechartview.backgroundcolor = [uicolor whitecolor];

_linechartview.nodatatext = @"暂无此产品的价格趋势";

_linechartview.nodatafont = [uifont systemfontofsize:15];

_linechartview.nodatatextcolor = hexcolor(0x444444);

_linechartview.chartdescription.enabled = yes;

_linechartview.scaleyenabled = no;//取消y轴缩放

_linechartview.scalexenabled = no;//取消x轴缩放

_linechartview.doubletaptozoomenabled = no;//取消双击缩放

_linechartview.dragenabled = yes;//启用拖拽

_linechartview.dragdecelerationenabled = yes;//拖拽后是否有惯性效果

_linechartview.dragdecelerationfrictioncoef = 0.9;//拖拽后惯性效果的摩擦系数(0~1)，数值越小，惯性越不明显

//描述及图例样式

[_linechartview setdescriptiontext:@""];

_linechartview.legend.enabled = no;

//设置左侧y轴

_linechartview.rightaxis.enabled = yes;//绘制右边轴

chartyaxis *leftaxis = _linechartview.leftaxis;//获取左边y轴

leftaxis.labelcount = 5;

//y轴label数量，数值不一定，如果forcelabelsenabled等于yes, 则强制绘制制定数量的label, 但是可能不平均

leftaxis.forcelabelsenabled = no;//不强制绘制指定数量的labe

leftaxis.axislinewidth = 0.6; //设置y轴线宽

leftaxis.axislinecolor = [uicolor blackcolor]; //设置y轴颜色

// leftaxis.axisminvalue = 0;//设置y轴的最小值

//leftaxis.axismaxvalue = 105;//设置y轴的最大值

leftaxis.inverted = no;//是否将y轴进行上下翻转

leftaxis.axislinecolor = [uicolor blackcolor];//y轴颜色

leftaxis.labelposition = yaxislabelpositioninsidechart;//label位置

leftaxis.labeltextcolor = [uicolor blackcolor];//文字颜色

leftaxis.labelfont = [uifont systemfontofsize:10.0f];//文字字体

//leftaxis.valueformatter = [[symbolsvalueformatter alloc]init];//设置y轴的数据格式

leftaxis.gridlinedashlengths = @[@3.0f, @3.0f];//设置虚线样式的网格线

leftaxis.gridcolor = [uicolor colorwithred:200/255.0f green:200/255.0f blue:200/255.0f alpha:1];//网格线颜色

leftaxis.gridantialiasenabled = yes;//开启抗锯齿

//设置z轴

chartyaxis *rightaxis = _linechartview.rightaxis;//获取右边z轴

rightaxis.axislinewidth = 0.6;

rightaxis.axislinecolor = [uicolor blackcolor];//z轴颜色

rightaxis.drawgridlinesenabled = no;

rightaxis.drawlabelsenabled = no;

//设置x轴

chartxaxis *xaxis = _linechartview.xaxis;

xaxis.valueformatter = self; //这里才是最最最最最最关键的代码

xaxis.granularityenabled = yes;//设置重复的值不显示

xaxis.labelcount = 5;

xaxis.spacemin = 0; //设置坐标轴额外的最小空间

xaxis.forcelabelsenabled = yes;

xaxis.labelposition = xaxislabelpositionbottom;//设置x轴数据在底部

xaxis.labeltextcolor = [uicolor blackcolor];//文字颜色

xaxis.axislinewidth = 0.6;

xaxis.axislinecolor = [uicolor blackcolor]; //x轴的颜色

xaxis.gridlinedashlengths = @[@3.0f, @3.0f];//设置虚线样式的网格线

xaxis.gridcolor = [uicolor colorwithred:200/255.0f green:200/255.0f blue:200/255.0f alpha:1];//网格线颜色

xaxis.gridantialiasenabled = yes;//开启抗锯齿

//_linechartview.maxvisiblecount = 999;//设置能够显示的数据数量

//设置浮层

_linechartview.drawmarkers = yes;

chartmarkerview * makerview = [[chartmarkerview alloc]init];

makerview.offset = cgpointmake(-self.subpriceview.frame.size.width,-self.subpriceview.frame.size.height/2);

makerview.chartview = _linechartview;

_linechartview.marker = makerview;

[makerview addsubview:self.subpriceview];

}

return _linechartview;

}

//折线图的数据源

- (linechartdata *)getlinedata{

if(self.pricetrenddatasource.count == 0) return nil;

//x轴上面需要显示的数据

nsmutablearray *xvals = [nsmutablearray array];

//对应y轴上面需要显示的数据,价格

nsmutablearray *yvals = [nsmutablearray array];

nsinteger index = 0;

for (pricetrendmodel * model in self.pricetrenddatasource) {

[xvals addobject:[nsstring stringwithformat:@"%@",model.trend_x]];

chartdataentry *entry_y = [[chartdataentry alloc] initwithx:index y:model.trend_y];

[yvals addobject:entry_y];

index ++;

}

linechartdataset *lineset = [[linechartdataset alloc] initwithvalues:yvals label:@""];

lineset.mode = linechartmodecubicbezier;

lineset.linewidth = 1.0f;

lineset.drawvaluesenabled = no;

lineset.valuecolors = @[[uicolor purplecolor]]; //折线上的数值的颜色

[lineset setcolor:hexcolor(0x24a5ea)]; //折线本身的颜色

lineset.drawsteppedenabled = no;//是否开启绘制阶梯样式的折线图

lineset.drawcirclesenabled = no;

lineset.drawfilledenabled = no;//是否填充颜色

lineset.circleradius = 1.0f;

lineset.drawcircleholeenabled = no;

lineset.circleholeradius = 0.0f;

lineset.circleholecolor = [uicolor whitecolor];

lineset.highlightenabled = yes;//选中拐点,是否开启高亮效果(显示十字线)

//lineset.highlightcolor = hexcolor(0xc83c23);//点击选中拐点的十字线的颜色

lineset.highlightcolor = [hexcolor(0x444444) colorwithalphacomponent:0.5];//点击选中拐点的十字线的颜色

lineset.highlightlinewidth = 0.5;//十字线宽度

//lineset.highlightlinedashlengths = @[@5,@5]; //设置十字线的虚线宽度

lineset.valuefont = [uifont systemfontofsize:12];

lineset.axisdependency = axisdependencyleft;

linechartdata *linedata = [[linechartdata alloc] initwithdataset:lineset];

return linedata;

}

3.饼状图

//初始化饼状图

- (piechartview *)piechartview{

if (!_piechartview) {

_piechartview = [[piechartview alloc] initwithframe:cgrectzero];

_piechartview.backgroundcolor = [uicolor whitecolor];

//基本样式

//[_piechartview setextraoffsetswithleft:30 top:10 right:30 bottom:10];//饼状图距离边缘的间隙

[_piechartview setextraoffsetswithleft:0 top:0 right:0 bottom:0];//饼状图距离边缘的间隙

_piechartview.usepercentvaluesenabled = no;//是否根据所提供的数据, 将显示数据转换为百分比格式

_piechartview.dragdecelerationenabled = yes;//拖拽饼状图后是否有惯性效果

_piechartview.drawslicetextenabled = no;//是否显示区块文本

//空心样式

_piechartview.drawholeenabled = yes;//饼状图是否是空心

_piechartview.holeradiuspercent = 0.8;//空心半径占比

_piechartview.holecolor = [uicolor clearcolor];//空心颜色

_piechartview.transparentcircleradiuspercent = 0.52;//半透明空心半径占比

_piechartview.transparentcirclecolor = [uicolor colorwithred:210/255.0 green:145/255.0 blue:165/255.0 alpha:0.3];//半透明空心的颜色

//设置空心文字

if (_piechartview.isdrawholeenabled == yes) {

_piechartview.drawcentertextenabled = yes;//是否显示中间文字

//普通文本

//_piechartview.centertext = @"资产";//中间文字

//富文本

nsmutableattributedstring *centertext = [[nsmutableattributedstring alloc] initwithstring:@"收支详情"];

[centertext setattributes:@{nsfontattributename: [uifont boldsystemfontofsize:18],

nsforegroundcolorattributename: hexcolor(0x444444)}

range:nsmakerange(0, centertext.length)];

_piechartview.centerattributedtext = centertext;

}

//设置饼状图描述

_piechartview.descriptiontext = @"";

//_piechartview.descriptionfont = [uifont systemfontofsize:10];

//_piechartview.descriptiontextcolor = [uicolor graycolor];

//设置图例样式

_piechartview.legend.maxsizepercent = 0;//图例在饼状图中的大小占比, 这会影响图例的宽高

_piechartview.legend.formtotextspace = 5;//文本间隔

_piechartview.legend.yentryspace = 12;//10;

_piechartview.legend.xentryspace = 15;

_piechartview.legend.font = [uifont systemfontofsize:10];//字体大小

_piechartview.legend.textcolor = [uicolor graycolor];//字体颜色

_piechartview.legend.position = chartlegendpositionbelowchartcenter;//图例在饼状图中的位置

_piechartview.legend.form = chartlegendformcircle;//图示样式: 方形、线条、圆形

_piechartview.legend.formsize = 0;//图示大小

}

return _piechartview;

}

//饼状图的数据源

- (piechartdata *)getpiedata{

//每个区块的金额数

nsmutablearray * moneyarray = [nsmutablearray arraywitharray:@[@33.33,@66.66]];

//每个区块的名称或描述

//nsarray * xvals = @[@"充值诚意金",@"充值会员费",@"赠送诚意金",@"赠送会员费",@"被冻结资金"];

// nsmutablearray * xvals = [nsmutablearray array];

//每个区块的颜色

nsmutablearray *colors = [[nsmutablearray alloc] init];

switch (_forecasttype) {

case forecastpricetypeup:{

[colors addobject:hexcolor(0xff1f32)];

[moneyarray removeallobjects];

[moneyarray addobject:@(self.forecastmodel.uprate)];

[moneyarray addobject:@(1 - self.forecastmodel.uprate)];

break;

}

case forecastpricetypedown:{

[colors addobject:hexcolor(0x5fd954)];

[moneyarray removeallobjects];

[moneyarray addobject:@(self.forecastmodel.downrate)];

[moneyarray addobject:@(1 - self.forecastmodel.downrate)];

break;

}

case forecastpricetypelevel:{

[colors addobject:hexcolor(0x00d6f6)];

[moneyarray removeallobjects];

[moneyarray addobject:@(self.forecastmodel.rate)];

[moneyarray addobject:@(1 - self.forecastmodel.rate)];

break;

}

default:

break;

}

[colors addobject:hexcolor(0xf2f2f2)];

//每个区块的数据

nsmutablearray *yvals = [[nsmutablearray alloc] init];

for (int i = 0; i < moneyarray.count; i++) {

double randomval = [moneyarray[i] doublevalue];

//barchartdataentry *entry = [[barchartdataentry alloc] initwithvalue:randomval xindex:i];

//chartdataentry * entry = [[chartdataentry alloc] initwithvalue:randomval xindex:i];

chartdataentry * entry = [[chartdataentry alloc] initwithx:i y:randomval];

[yvals addobject:entry];

}

//dataset

//piechartdataset *dataset = [[piechartdataset alloc] initwithyvals:yvals label:@""];

piechartdataset *dataset = [[piechartdataset alloc] initwithvalues:yvals label:@""];

dataset.drawvaluesenabled = no;//是否绘制显示数据

dataset.colors = colors;//区块颜色

dataset.slicespace = 3;//相邻区块之间的间距

dataset.selectionshift = 2;//选中区块时, 放大的半径

dataset.xvalueposition = piechartvaluepositioninsideslice;//名称位置

dataset.yvalueposition = piechartvaluepositionoutsideslice;//数据位置

//数据与区块之间的用于指示的折线样式

dataset.valuelinepart1offsetpercentage = 0.85;//折线中第一段起始位置相对于区块的偏移量, 数值越大, 折线距离区块越远

dataset.valuelinepart1length = 0.5;//折线中第一段长度占比

dataset.valuelinepart2length = 0.4;//折线中第二段长度最大占比

dataset.valuelinewidth = 1;//折线的粗细

dataset.valuelinecolor = [uicolor browncolor];//折线颜色

dataset.valuelinevariablelength = yes;

//data

//piechartdata *data = [[piechartdata alloc] initwithxvals:xvals dataset:dataset];

piechartdata *data = [[piechartdata alloc] initwithdataset:dataset];

nsnumberformatter *formatter = [[nsnumberformatter alloc] init];

formatter.numberstyle = kcfnumberformatterdecimalstyle;//nsnumberformatterpercentstyle;

[formatter setpositiveformat:@"###,##0.00;"];

formatter.maximumfractiondigits = 2;//小数位数

formatter.multiplier = @1.f;

formatter.paddingposition = kcfnumberformatterpadbeforesuffix;

formatter.positivesuffix = @"元";

//[data setvalueformatter:formatter];//设置显示数据格式

[data setvaluetextcolor:[uicolor browncolor]];

[data setvaluefont:[uifont systemfontofsize:10]];

return data;

}

总结

以上就是这篇文章的全部内容了，希望本文的内容对大家的学习或者工作具有一定的参考学习价值，如果有疑问大家可以留言交流，谢谢大家对快网idc的支持。
