swiftui 为我们提供了各种梯度选项，所有这些选项都可以通过多种方式使用。
gradient 渐变器
a color gradient represented as an array of color stops, each having a parametric location value.
gradient是一组颜色的合集，每个颜色都忽略位置参数
lineargradient 线性渐变器
线性渐变器拥有沿轴进行渐变函数，我们可以自定义设置颜色空间、起点和终点。
下面我们看看lineargradient效果
?
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
|
import swiftui
struct lineview: view {
var gradient: gradient {
let stops: [gradient.stop] = [
.init(color: .red, location: 0.5),
.init(color: .yellow, location: 0.5)
]
return gradient(stops: stops)
}
var body: some view {
zstack {
lineargradient(gradient: gradient,
startpoint: .top,
endpoint: .trailing)
.edgesignoringsafearea(.all)
image("1")
.resizable()
.aspectratio(contentmode: .fit)
.clipshape(circle())
.overlay(circle()
.stroke(linewidth: 8)
.foregroundcolor(.white))
.frame(width: 250)
text("洛神赋图")
.padding()
.foregroundcolor(.white)
.cornerradius(8)
.background(lineargradient(gradient: gradient(colors: [.white, .black]), startpoint: .top, endpoint: .bottom))
.offset(y:-280)
}
}
}
|
?
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
|

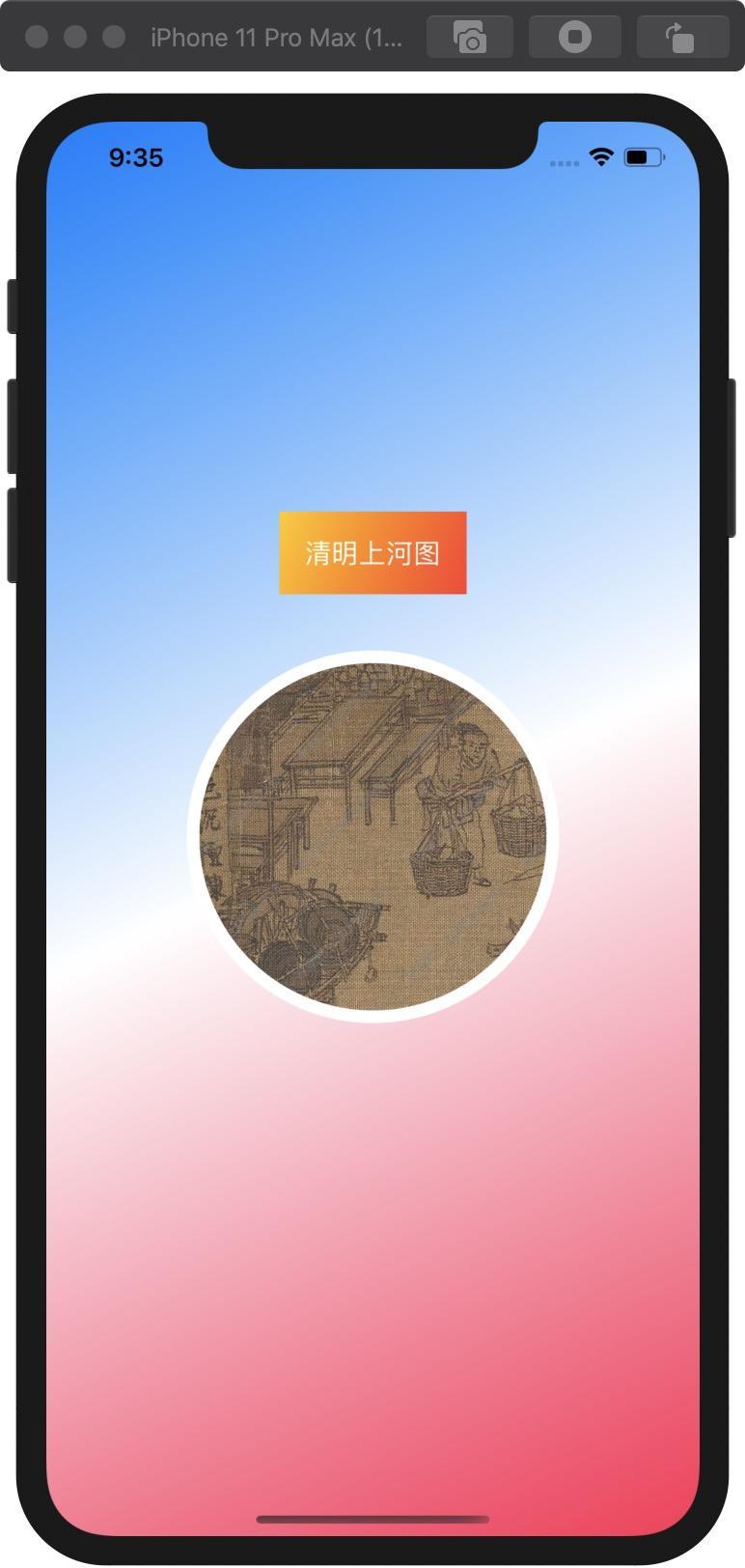

import swiftui
struct linegradient3color: view {
var body: some view {
zstack {
lineargradient(gradient:
gradient(
colors: [.blue, .white, .pink]),
startpoint: .topleading,
endpoint: .bottomtrailing)
.edgesignoringsafearea(.all)
image("2")
.resizable()
.aspectratio(contentmode: .fit)
.clipshape(circle())
.overlay(circle()
.stroke(linewidth: 8)
.foregroundcolor(.white))
.frame(width: 250)
text("清明上河图")
.padding()
.foregroundcolor(.white)
.cornerradius(8)
.background(lineargradient(gradient: gradient(
colors: [.yellow, .red]),
startpoint: .topleading,
endpoint: .bottomtrailing))
.offset(y:-180)
}
}
}
|

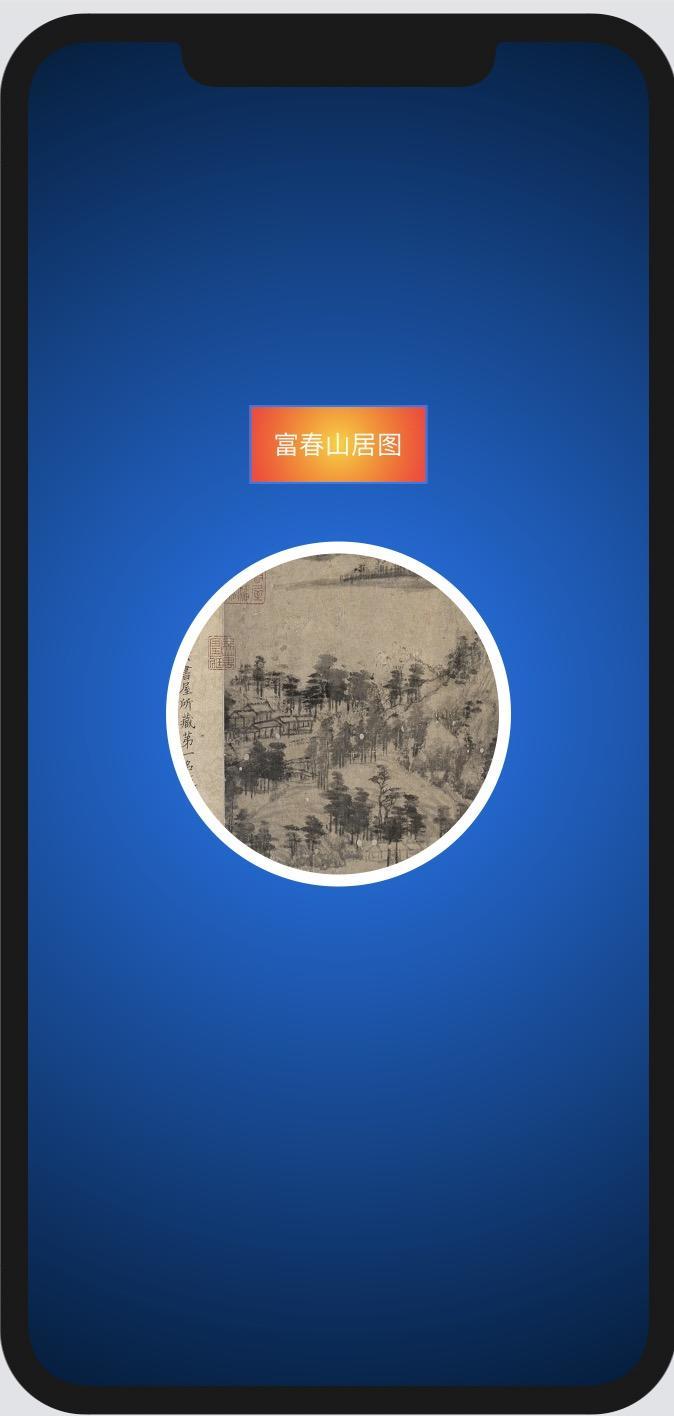

radial gradient 径向渐变
在径向渐变中，我们必须指定起始半径点，端半径点与中心点，从径向渐变开变.
?
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
|
import swiftui
struct radialview: view {
var body: some view {
zstack {
radialgradient(gradient: gradient(
colors: [.blue, .black]),
center: .center,
startradius: 2,
endradius: 650)
.edgesignoringsafearea(.all)
image("3")
.resizable()
.aspectratio(contentmode: .fit)
.clipshape(circle())
.overlay(circle()
.stroke(linewidth: 8)
.foregroundcolor(.white))
.frame(width: 250)
text("富春山居图")
.padding()
.foregroundcolor(.white)
.cornerradius(8)
.background(
radialgradient(gradient: gradient(
colors: [.yellow, .red]),
center: .center,
startradius: 2,
endradius: 60))
.offset(y:-180)
}
}
}
|

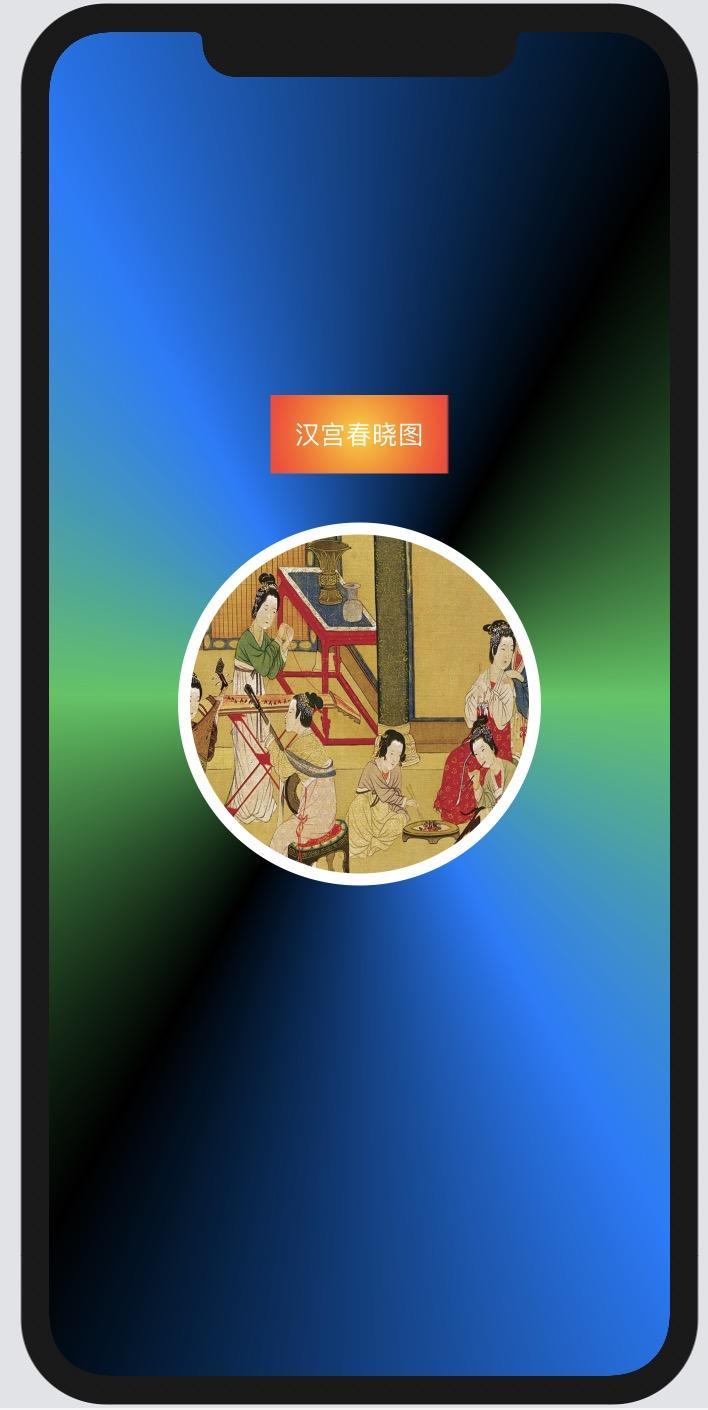

angular gradient
在角渐变中，我们只需要通过中心点。
?
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
|
import swiftui
struct angularview: view {
var body: some view {
zstack {
angulargradient(gradient: gradient(
colors: [.green, .blue, .black, .green, .blue, .black, .green]),
center: .center)
.edgesignoringsafearea(.all)
image("4")
.resizable()
.aspectratio(contentmode: .fit)
.clipshape(circle())
.overlay(circle()
.stroke(linewidth: 8)
.foregroundcolor(.white))
.frame(width: 250)
text("汉宫春晓图")
.padding()
.foregroundcolor(.white)
.cornerradius(8)
.background(
radialgradient(gradient: gradient(
colors: [.yellow, .red]),
center: .center,
startradius: 2,
endradius: 60))
.offset(y:-180)
}
}
|
以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持快网idc。
