iOS自定义雷达扫描扩散动画

本文实例为大家分享了iOS实现雷达扫描扩散动画的具体代码，供大家参考，具体内容如下

自己自定义了一个雷达扫描/扩散效果的View。

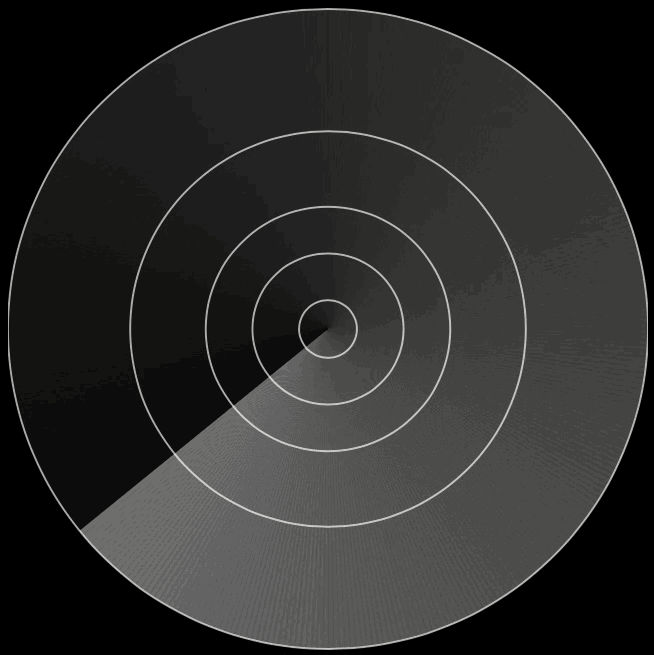

扫描View 效果如下：

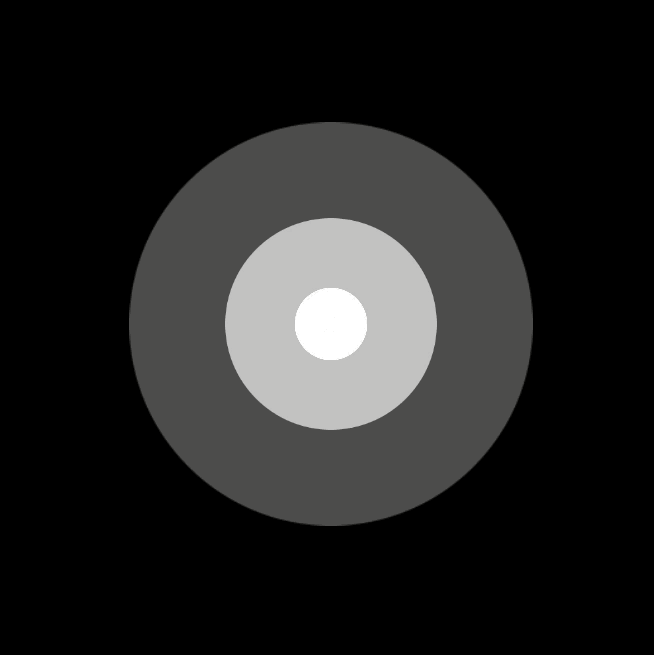

扩散View 效果如下：

自定义的代码如下：

1. RadarView.h

#import <UIKit/UIKit.h>

typedef NS_ENUM(NSInteger, RadarViewType) {

RadarViewTypeScan,

RadarViewTypeDiffuse

};

@interface RadarView : UIView

/** 雷达空心圆圈的颜色 */

@property (nonatomic, strong) UIColor * radarLineColor;

/** 扇形开始颜色必须由RGBA值初始化

* [UIColor colorWithRed: green: blue: alpha:]

*/

@property (nonatomic, strong) UIColor * startColor;

/** 扇形结束颜色必须由RGBA值初始化

* [UIColor colorWithRed: green: blue: alpha:]

*/

@property (nonatomic, strong) UIColor * endColor;

/**

*

* @param radius 半径

* @param angle 角度

* @param radarLineNum 雷达线数量

* @param hollowRadius 空心圆半径

*

* @return 扫描雷达 View

*/

+ (RadarView *)scanRadarViewWithRadius:(CGFloat)radius

angle:(int)angle

radarLineNum:(int)radarLineNum

hollowRadius:(CGFloat)hollowRadius;

/**

*

* @param startRadius 扩散圆起始的半径

* @param endRadius 扩散圆消失的半径

* @param circleColor 扩散圆的颜色

*

* @return 扩散雷达 View

*/

+ (RadarView *)diffuseRadarViewWithStartRadius:(CGFloat)startRadius

endRadius:(CGFloat)endRadius

circleColor:(UIColor *)circleColor;

/**

* 展示在targerView上

*

* @param targerView <#targerView description#>

*/

- (void)showTargetView:(UIView *)targerView;

- (void)dismiss;

/** 开始扫描动画 */

- (void)startAnimatian;

/** 停止扫描动画 */

- (void)stopAnimation;

@end

2. RadarView.m

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

#import "RadarView.h"

#define CenterX self.bounds.size.width*0.5

#define CenterY self.bounds.size.height*0.5

#define DefaultRadarLineColor [UIColor colorWithWhite:1 alpha:0.7]

#define DefaultStartColor [UIColor colorWithRed:1 green:1 blue:1 alpha:0.5]

#define DefaultEndColor [UIColor colorWithRed:1 green:1 blue:1 alpha:0]

#define DefaultCircleColor [UIColor colorWithWhite:1 alpha:0.5]

@interface RadarView ()

#pragma mark - 扫描类型的RadarView 属性

/** 扇形半径 */

@property (nonatomic, assign) CGFloat sectorRadius;

/** 扇形角度 */

@property (nonatomic, assign) int angle;

/** 雷达空心圆圈的数量 */

@property (nonatomic, assign) int radarLineNum;

/** 中心空心圆的半径 (一般这里放置一个圆形的头像) */

@property (nonatomic, assign) int hollowRadius;

#pragma mark - 扩散类型的RadarView 属性

/** 扩散动画起始的半径 */

@property (nonatomic, assign) CGFloat startRadius;

/** 扩散动画结束的半径 */

@property (nonatomic, assign) CGFloat endRadius;

/** 圆圈的颜色 */

@property (nonatomic, strong) UIColor * circleColor;

@property (nonatomic, strong) NSTimer * timer;

@property (nonatomic, assign) RadarViewType radarViewType;

@end

@implementation RadarView

+ (RadarView *)scanRadarViewWithRadius:(CGFloat)radius angle:(int)angle radarLineNum:(int)radarLineNum hollowRadius:(CGFloat)hollowRadius {

return [[self alloc] initWithRadius:radius angle:angle radarLineNum:radarLineNum hollowRadius:hollowRadius];

}

- (instancetype)initWithRadius:(CGFloat)radius

angle:(int)angle

radarLineNum:(int)radarLineNum

hollowRadius:(CGFloat)hollowRadius {

if (self = [super init]) {

self.radarViewType = RadarViewTypeScan;

self.sectorRadius = radius;

self.frame = CGRectMake(0, 0, radius*2, radius*2);

self.angle = angle;

self.radarLineNum = radarLineNum-1;

self.hollowRadius = hollowRadius;

self.backgroundColor = [UIColor clearColor];

}

return self;

}

+ (RadarView *)diffuseRadarViewWithStartRadius:(CGFloat)startRadius endRadius:(CGFloat)endRadius circleColor:(UIColor *)circleColor {

return [[self alloc] initWithStartRadius:startRadius endRadius:endRadius circleColor:circleColor];

}

- (instancetype)initWithStartRadius:(CGFloat)startRadius endRadius:(CGFloat)endRadius circleColor:(UIColor *)circleColor {

if (self = [super init]) {

self.radarViewType = RadarViewTypeDiffuse;

self.frame = CGRectMake(0, 0, endRadius*2, endRadius*2);

self.startRadius = startRadius;

self.endRadius = endRadius;

self.circleColor = circleColor;

self.backgroundColor = [UIColor clearColor];

}

return self;

}

// Only override drawRect: if you perform custom drawing.

// An empty implementation adversely affects performance during animation.

- (void)drawRect:(CGRect)rect {

// Drawing code

if (_radarViewType == RadarViewTypeScan) {

if (!_startColor) {

_startColor = DefaultStartColor;

}

if (!_endColor) {

_endColor = DefaultEndColor;

}

if (!_radarLineColor) {

_radarLineColor = DefaultRadarLineColor;

}

// 画雷达线

[self drawRadarLine];

CGContextRef context = UIGraphicsGetCurrentContext();

// 把要画的扇形分开画，一次画1°,每次的颜色渐变

for (int i = 0; i < _angle; i++) {

UIColor * color = [self colorWithCurrentAngleProportion:i*1.0/_angle];

[self drawSectorWithContext:context color:color startAngle:-90-i];

}

/** 画扇形 */

- (void)drawSectorWithContext:(CGContextRef)context

color:(UIColor *)color

startAngle:(CGFloat)startAngle {

//画扇形，也就画圆，只不过是设置角度的大小，形成一个扇形

CGContextSetFillColorWithColor(context, color.CGColor);//填充颜色

CGContextSetLineWidth(context, 0);//线的宽度

//以self.radius为半径围绕圆心画指定角度扇形

CGContextMoveToPoint(context, CenterX, CenterY);

CGContextAddArc(context, CenterX, CenterY, _sectorRadius, startAngle * M_PI / 180, (startAngle-1) * M_PI / 180, 1);

CGContextClosePath(context);

CGContextDrawPath(context, kCGPathFillStroke); //绘制路径

}

/** 画雷达线 */

- (void)drawRadarLine {

CGFloat minRadius = (_sectorRadius-_hollowRadius)*(pow(0.618, _radarLineNum-1));

/** 画围着空心半径的第一个空心圆，此圆不在计数内 */

[self drawLineWithRadius:_hollowRadius+minRadius*0.382];

for (int i = 0; i < _radarLineNum; i++) {

[self drawLineWithRadius:_hollowRadius + minRadius/pow(0.618, i)];

}

/** 画空心圆 */

- (void)drawLineWithRadius:(CGFloat)radius {

CAShapeLayer *solidLine = [CAShapeLayer layer];

CGMutablePathRef solidPath = CGPathCreateMutable();

solidLine.lineWidth = 1.0f ;

solidLine.strokeColor = _radarLineColor.CGColor;

solidLine.fillColor = [UIColor clearColor].CGColor;

CGPathAddEllipseInRect(solidPath, nil, CGRectMake(self.bounds.size.width*0.5-radius, self.bounds.size.height*0.5-radius, radius*2, radius*2));

solidLine.path = solidPath;

CGPathRelease(solidPath);

[self.layer addSublayer:solidLine];

}

#pragma mark - 展示

- (void)showTargetView:(UIView *)targerView {

self.center = targerView.center;

[targerView addSubview:self];

}

#pragma mark -

- (void)dismiss {

[self removeFromSuperview];

}

#pragma mark - 开始动画

- (void)startAnimatian {

if (_radarViewType == RadarViewTypeScan) {

CABasicAnimation* rotationAnimation;

rotationAnimation = [CABasicAnimation animationWithKeyPath:@"transform.rotation.z"];

rotationAnimation.toValue = [NSNumber numberWithFloat: 1 * M_PI * 2.0 ];

rotationAnimation.duration = 2;

rotationAnimation.cumulative = YES;

rotationAnimation.repeatCount = INT_MAX;

[self.layer addAnimation:rotationAnimation forKey:@"rotationAnimation"];

} else {

[self diffuseAnimation];

_timer = [NSTimer scheduledTimerWithTimeInterval:0.5 target:self selector:@selector(diffuseAnimation) userInfo:nil repeats:YES];

}

#pragma mark - 结束动画

- (void)stopAnimation {

if (_radarViewType == RadarViewTypeScan) {

[self.layer removeAnimationForKey:@"rotationAnimation"];

} else {

[_timer invalidate];

_timer = nil;

}

- (UIColor *)colorWithCurrentAngleProportion:(CGFloat)angleProportion {

NSArray * startRGBA = [self RGBA_WithColor:_startColor];

NSArray * endRGBA = [self RGBA_WithColor:_endColor];

CGFloat currentR = [startRGBA[0] floatValue] - ([startRGBA[0] floatValue]-[endRGBA[0] floatValue]) * angleProportion;

CGFloat currentG = [startRGBA[1] floatValue] - ([startRGBA[1] floatValue]-[endRGBA[1] floatValue]) * angleProportion;

CGFloat currentB = [startRGBA[2] floatValue] - ([startRGBA[2] floatValue]-[endRGBA[2] floatValue]) * angleProportion;

CGFloat currentA = [startRGBA[3] floatValue] - ([startRGBA[3] floatValue]-[endRGBA[3] floatValue]) * angleProportion;

return [UIColor colorWithRed:currentR green:currentG blue:currentB alpha:currentA];

}

/**

* 将UIColor对象解析成RGBA 值的数组

*

* @param color UIColor对象，有RGBA值初始化的

*[UIColor colorWithRed:rValue green:gValue blue:bValue alpha:aValue]

*

* @return 包含RGBA值得数组[rValue, gValue, bValue, aValue]

*/

- (NSArray *)RGBA_WithColor:(UIColor *)color {

NSString * colorStr = [NSString stringWithFormat:@"%@", color];

//将RGB值描述分隔成字符串

NSArray * colorValueArray = [colorStr componentsSeparatedByString:@" "];

NSString * R = colorValueArray[1];

NSString * G = colorValueArray[2];

NSString * B = colorValueArray[3];

NSString * A = colorValueArray[4];

return @[R, G, B, A];

}

/** 画圆 */

- (UIImage *)drawCircle {

UIGraphicsBeginImageContext(CGSizeMake(_endRadius*2, _endRadius*2));

CGContextRef context = UIGraphicsGetCurrentContext();

CGContextMoveToPoint(context, CenterX, CenterY);

CGContextSetFillColorWithColor(context, _circleColor.CGColor);

CGContextAddArc(context, CenterX, CenterY, _endRadius, 0, -2*M_PI, 1);

CGContextFillPath(context);

UIImage * img = UIGraphicsGetImageFromCurrentImageContext();

UIGraphicsEndImageContext();

return img;

}

- (void)diffuseAnimation {

UIImageView * imgView = [[UIImageView alloc] init];

imgView.image = [self drawCircle];

imgView.frame = CGRectMake(0, 0, _startRadius, _startRadius);

imgView.center = CGPointMake(CenterX, CenterY);

[self addSubview:imgView];

[UIView animateWithDuration:2 delay:0 options:UIViewAnimationOptionCurveEaseIn animations:^{

imgView.frame = CGRectMake(0, 0, _endRadius*2, _endRadius*2);

imgView.center = CGPointMake(CenterX, CenterY);

imgView.alpha = 0;

} completion:^(BOOL finished) {

[imgView removeFromSuperview];

}];

}

@end

3. ViewController.m 中使用的代码：
