本文研究的主要是java fastdfs客户端使用实例的相关内容，具体实现如下。
什么是fastdfs？
fastdfs是用c语言编写的一款开源的分布式文件系统。fastdfs为互联网量身定制，充分考虑了冗余备份、负载均衡、线性扩容等机制，并注重高可用、高性能等指标，使用fastdfs很容易搭建一套高性能的文件服务器集群提供文件上传、下载等服务。

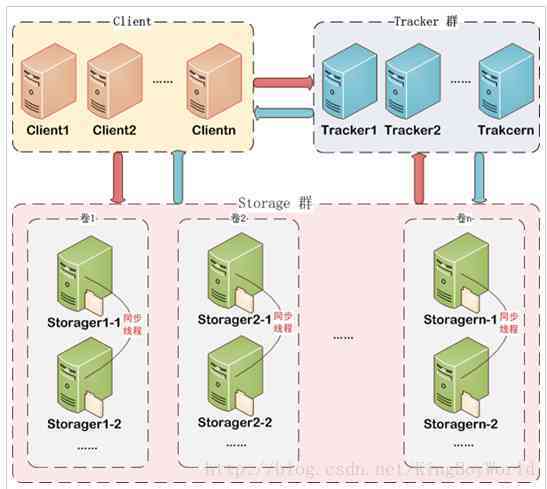

fastdfs架构
fastdfs架构包括 tracker server和storage server。客户端请求tracker server进行文件上传、下载，通过tracker server调度最终由storage server完成文件上传和下载。tracker server作用是负载均衡和调度，通过tracker server在文件上传时可以根据一些策略找到storage server提供文件上传服务。可以将tracker称为追踪服务器或调度服务器。storage server作用是文件存储，客户端上传的文件最终存储在storage服务器上，storage server没有实现自己的文件系统而是利用操作系统 的文件系统来管理文件。可以将storage称为存储服务器。
实例
一、创建一个maven的webproject，叫
file-manager:mvnarchetype:create-dgroupid=platform.activity.filemanager-dartifactid=file-manager-darchetypeartifactid=maven-archetype-webapp
二、定义一个fastdfs的客户端文件fdfs_client.conf：
?
|
1
2
3
4
5
6
7
8
9
10
11
|
class="properties" name="code">connect_timeout = 2
network_timeout = 30
charset = utf-8
http.tracker_http_port = 8080
http.anti_steal_token = no
http.secret_key = fastdfs1234567890
tracker_server = 192.168.1.156:22122
#tracker_server = 192.168.1.188:22122
#storage_server = 192.168.1.155:23000 #no need here
|
三、定义一个配置接口：
?
|
1
2
3
4
5
6
7
8
9
10
11
|
package com.chuanliu.platform.activity.fm.manager;
import java.io.serializable;
public interface filemanagerconfig extends serializable {
public static final string file_default_width = "120";
public static final string file_default_height = "120";
public static final string file_default_author = "diandi";
public static final string protocol = "http://";
public static final string separator = "/";
public static final string tracker_ngnix_port = "8080";
public static final string client_config_file = "fdfs_client.conf";
}
|
四、封装一个fastdfs文件bean
?
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
|
package com.chuanliu.platform.activity.fm.manager;
public class fastdfsfile implements filemanagerconfig {
private static final long serialversionuid = -996760121932438618l;
private string name;
private byte[] content;
private string ext;
private string height = file_default_height;
private string width = file_default_width;
private string author = file_default_author;
public fastdfsfile(string name, byte[] content, string ext, string height,string width, string author) {
super();
this.name = name;
this.content = content;
this.ext = ext;
this.height = height;
this.width = width;
this.author = author;
}
public fastdfsfile(string name, byte[] content, string ext) {
super();
this.name = name;
this.content = content;
this.ext = ext;
}
public byte[] getcontent() {
return content;
}
public void setcontent(byte[] content) {
this.content = content;
}
public string getext() {
return ext;
}
public void setext(string ext) {
this.ext = ext;
}
public string getheight() {
return height;
}
public void setheight(string height) {
this.height = height;
}
public string getwidth() {
return width;
}
public void setwidth(string width) {
this.width = width;
}
public string getauthor() {
return author;
}
public void setauthor(string author) {
this.author = author;
}
public string getname() {
return name;
}
public void setname(string name) {
this.name = name;
}
}
|
五、定义核心的filemanager类，里面包含有上传、删除、获取文件的方法：
?
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
|
package com.chuanliu.platform.activity.fm.manager;
import java.io.file;
import java.io.ioexception;
import org.apache.log4j.logger;
import org.csource.common.namevaluepair;
import org.csource.fastdfs.clientglobal;
import org.csource.fastdfs.fileinfo;
import org.csource.fastdfs.serverinfo;
import org.csource.fastdfs.storageclient;
import org.csource.fastdfs.storageserver;
import org.csource.fastdfs.trackerclient;
import org.csource.fastdfs.trackerserver;
import com.chuanliu.platform.activity.basic.util.loggerutils;
public class filemanager implements filemanagerconfig {
private static final long serialversionuid = 1l;
private static logger logger = logger.getlogger(filemanager.class);
private static trackerclient trackerclient;
private static trackerserver trackerserver;
private static storageserver storageserver;
private static storageclient storageclient;
static {
// initialize fast dfs client configurations
try {
string classpath = new file(filemanager.class.getresource("/").getfile()).getcanonicalpath();
string fdfsclientconfigfilepath = classpath + file.separator + client_config_file;
logger.info("fast dfs configuration file path:" + fdfsclientconfigfilepath);
clientglobal.init(fdfsclientconfigfilepath);
trackerclient = new trackerclient();
trackerserver = trackerclient.getconnection();
storageclient = new storageclient(trackerserver, storageserver);
}
catch (exception e) {
loggerutils.error(logger, e);
}
}
public static string upload(fastdfsfile file) {
loggerutils.info(logger, "file name: " + file.getname() + "file length: " + file.getcontent().length);
namevaluepair[] meta_list = new namevaluepair[3];
meta_list[0] = new namevaluepair("width", "120");
meta_list[1] = new namevaluepair("heigth", "120");
meta_list[2] = new namevaluepair("author", "diandi");
long starttime = system.currenttimemillis();
string[] uploadresults = null;
try {
uploadresults = storageclient.upload_file(file.getcontent(), file.getext(), meta_list);
}
catch (ioexception e) {
logger.error("io exception when uploadind the file: " + file.getname(), e);
}
catch (exception e) {
logger.error("non io exception when uploadind the file: " + file.getname(), e);
}
logger.info("upload_file time used: " + (system.currenttimemillis() - starttime) + " ms");
if (uploadresults == null) {
loggerutils.error(logger, "upload file fail, error code: " + storageclient.geterrorcode());
}
string groupname = uploadresults[0];
string remotefilename = uploadresults[1];
string fileabsolutepath = protocol + trackerserver.getinetsocketaddress().gethostname()
+ separator
+ tracker_ngnix_port
+ separator
+ groupname
+ separator
+ remotefilename;
loggerutils.info(logger, "upload file successfully!!! " +"group_name: " + groupname + ", remotefilename:"
+ " " + remotefilename);
return fileabsolutepath;
}
public static fileinfo getfile(string groupname, string remotefilename) {
try {
return storageclient.get_file_info(groupname, remotefilename);
}
catch (ioexception e) {
logger.error("io exception: get file from fast dfs failed", e);
}
catch (exception e) {
logger.error("non io exception: get file from fast dfs failed", e);
}
return null;
}
public static void deletefile(string groupname, string remotefilename) throws exception {
storageclient.delete_file(groupname, remotefilename);
}
public static storageserver[] getstorestorages(string groupname) throws ioexception {
return trackerclient.getstorestorages(trackerserver, groupname);
}
public static serverinfo[] getfetchstorages(string groupname, string remotefilename) throws ioexception {
return trackerclient.getfetchstorages(trackerserver, groupname, remotefilename);
}
}
|
六、unit test测试类
?
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
|
package manager;
import java.io.file;
import java.io.fileinputstream;
import org.csource.fastdfs.fileinfo;
import org.csource.fastdfs.serverinfo;
import org.csource.fastdfs.storageserver;
import org.junit.test;
import org.springframework.util.assert;
import com.chuanliu.platform.activity.fm.manager.fastdfsfile;
import com.chuanliu.platform.activity.fm.manager.filemanager;
/**
* @author josh wang(sheng)
*
* @email josh_wang23@hotmail.com
*/
public class testfilemanager {
@test
public void upload() throws exception {
file content = new file("c:\\\\520.jpg");
fileinputstream fis = new fileinputstream(content);
byte[] file_buff = null;
if (fis != null) {
int len = fis.available();
file_buff = new byte[len];
fis.read(file_buff);
}
fastdfsfile file = new fastdfsfile("520", file_buff, "jpg");
string fileabsolutepath = filemanager.upload(file);
system.out.println(fileabsolutepath);
fis.close();
}
@test
public void getfile() throws exception {
fileinfo file = filemanager.getfile("group1", "m00/00/00/wkgbm1n1-cianrlmaabygpyzdlw073.jpg");
assert.notnull(file);
string sourceipaddr = file.getsourceipaddr();
long size = file.getfilesize();
system.out.println("ip:" + sourceipaddr + ",size:" + size);
}
@test
public void getstorageserver() throws exception {
storageserver[] ss = filemanager.getstorestorages("group1");
assert.notnull(ss);
for (int k = 0; k < ss.length; k++){
system.err.println(k + 1 + ". " + ss[k].getinetsocketaddress().getaddress().gethostaddress() + ":" + ss[k].getinetsocketaddress().getport());
}
}
@test
public void getfetchstorages() throws exception {
serverinfo[] servers = filemanager.getfetchstorages("group1", "m00/00/00/wkgbm1n1-cianrlmaabygpyzdlw073.jpg");
assert.notnull(servers);
for (int k = 0; k < servers.length; k++) {
system.err.println(k + 1 + ". " + servers[k].getipaddr() + ":" + servers[k].getport());
}
}
}
|
总结
以上就是本文关于java fastdfs客户端使用实例代码的全部内容，希望对大家有所帮助。感兴趣的朋友可以继续参阅本站其他相关专题，如有不足之处，欢迎留言指出。感谢朋友们对本站的支持！
原文链接：http://www.cnblogs.com/go4mi/p/5809541.html
