C++制作俄罗斯方块

2025-05-27 0 86

缘起:

  在玩Codeblocks自带的俄罗斯方块时觉得不错,然而有时间限制。所以想自己再写一个。

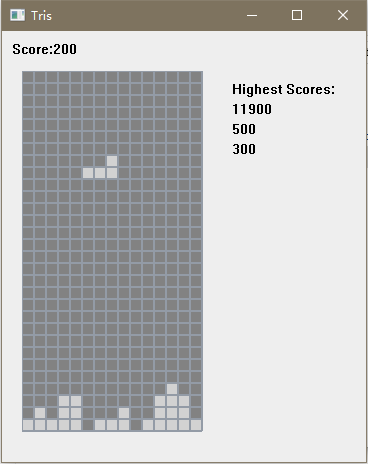

程序效果:

C++制作俄罗斯方块

主要内容:

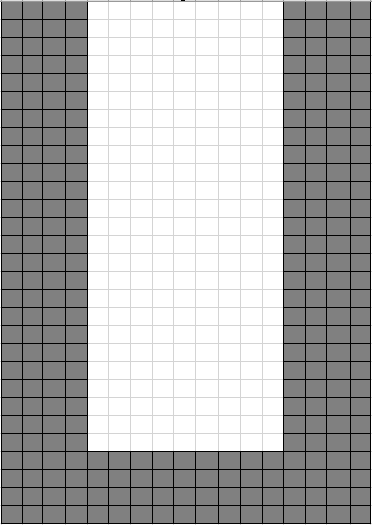

  程序中有一个board数组,其中有要显示的部分,也有不显示的部分,不显示的部分都存储1。

  如下图:

C++制作俄罗斯方块

  shape采用4*4数组(shape)保存。如:

    0 0 0 0
    0 1 0 0
    1 1 1 0
    0 0 0 0

  另外用变量row和column保存shape数组左上角在board中的位置。

  每次下落或左右移动,先对row和column做出改变,然后检测当前row和column下,shape是否重合了为1的格子,如果有重合,就说明shape出界了或者到达下落最低点,则要恢复row和column值。另外,如果是下落,还要将shape放在board上,并产生新的shape。

  旋转时,先对shape数组进行旋转操作,然后检测重合,如果有重合,则反向旋转回来。

代码:

?

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

517

518

519

520

521

522

523

524

525

526

527

528

529

530

531

532

533

534

535

536

537

538

539

540

541

542

543

544

545

546

547

548

549

550

551

552

553
#if defined(UNICODE) && !defined(_UNICODE)

#define _UNICODE

#elif defined(_UNICODE) && !defined(UNICODE)

#define UNICODE

#endif

#include <tchar.h>

#include <windows.h>

#include <pthread.h>

#include <stdio.h>

#include <time.h>

/*-----------------宏定义--------------------------------------------------------*/

#define WIDTH 180

#define HEIGHT 400

#define LONG_SLEEP 300

#define BKCOLOR RGB(238,238,238)//背景色

/*-----------------变量----------------------------------------------------------*/

static int shapes[7][4][4];//存储7个形状

static int high_score[4]= {0,0,0,0};//前三个元素存储最高分,最后一个元素存储此次得分

static int **shape;//当前形状

static int **board;

static int M=15;//显示的列数

static int N=30;//显示的行数

static int MM=M+8;//board的列数

static int NN=N+4;//board的行数

static int LEFT=4;//显示的最左一列

static int RIGHT=LEFT+M-1;//显示的最右一列

static int TOP=0;//显示的最上一列

static int BOTTOM=N-1;//显示的最下一列

static int score=0;

static int row=0;//形状所在行

static int column=MM/2;//形状坐在列

static bool is_pause=false;

static HBRUSH grey_brush =CreateSolidBrush (RGB(210,210,210));

static HBRUSH white_brush =CreateSolidBrush (RGB(130,130,130));

static HBRUSH bk_brush =CreateSolidBrush (BKCOLOR);

static HPEN hPen = CreatePen(PS_SOLID,1,RGB(147,155,166));

static int lattices_top=40;//上面留白

static int lattices_left=20;//左侧留白

static int width=WIDTH/M;//每个格子的宽度

static int height=(HEIGHT-lattices_top)/N;//每个格子的高度

/*-----------------函数-----------------------------------------------------------*/

void add_score() ;

bool check_is_lose() ;

void clear_up() ;//消除没有空格子的行

void* down_thread_function(void * args) ;//形状下落进程要执行的函数

void exit_game(HWND hwnd) ;

void give_new_shape() ;//随机生成一个新形状

int handle_key(HWND hwnd,WPARAM wParam) ;

int init_down_thread(HWND hwnd) ;//初始化形状下落进程

int init_game(HWND hwnd) ;//初始化游戏程序

void init_play() ;//初始化游戏数据

bool is_legel() ;//检测形状在当前位置是否合法(即是否重合了非空的格子)

int load_scores(int* a) ;//读取游戏最高分数据

int load_shape() ;//从文件中加载7个形状

void lose_game(HWND hwnd) ;

int move_down(HWND hwnd) ;//形状下落

int move_lr(HWND hwnd,int lr) ;//形状左右移动

void paint_lattice(HDC hdc,int x,int y,int color) ;//显示一个格子

void paint_UI(HDC hdc) ;//画界面

void reset_rc() ;

void rerotate_matrix(int mn) ;//顺时针旋转一个行列数为mn的方阵

void rotate_matrix(int mn) ;//逆时针旋转一个行列数为mn的方阵

int rotate_shape(HWND hwnd) ;//旋转当前形状并更新界面

bool save_score(HWND hwnd) ;//保存最高分数据

void shape_to_ground() ;//当前形状落地之后,更新board

bool sort_scores(int* a) ;//对最高分和此次得分排序,若创造新纪录则返回true

void update_UI(HWND hwnd) ;//更新界面,仅更新Rect区域(形状所在的那几行)内

void update_UI_all(HWND hwnd) ;//更新界面,更新整个界面

int write_scores(int* a) ;//写最高分数据

/* Declare Windows procedure */

LRESULT CALLBACK WindowProcedure (HWND, UINT, WPARAM, LPARAM);

/* Make the class name into a global variable */

TCHAR szClassName[ ] = _T("Tris");

int WINAPI WinMain (HINSTANCE hThisInstance,

HINSTANCE hPrevInstance,

LPSTR lpszArgument,

int nCmdShow) {

HWND hwnd; /* This is the handle for our window */

MSG messages; /* Here messages to the application are saved */

WNDCLASSEX wincl; /* Data structure for the windowclass */

/* The Window structure */

wincl.hInstance = hThisInstance;

wincl.lpszClassName = szClassName;

wincl.lpfnWndProc = WindowProcedure; /* This function is called by windows */

wincl.style = CS_DBLCLKS; /* Catch double-clicks */

wincl.cbSize = sizeof (WNDCLASSEX);

/* Use default icon and mouse-pointer */

wincl.hIcon = LoadIcon (NULL, IDI_APPLICATION);

wincl.hIconSm = LoadIcon (NULL, IDI_APPLICATION);

wincl.hCursor = LoadCursor (NULL, IDC_ARROW);

wincl.lpszMenuName = NULL; /* No menu */

wincl.cbClsExtra = 0; /* No extra bytes after the window class */

wincl.cbWndExtra = 0; /* structure or the window instance */

/* Use Windows's default colour as the background of the window */

wincl.hbrBackground =bk_brush;

/* Register the window class, and if it fails quit the program */

if (!RegisterClassEx (&wincl))

return 0;

/* The class is registered, let's create the program*/

hwnd = CreateWindowEx (

0, /* Extended possibilites for variation */

szClassName, /* Classname */

_T("Tris"), /* Title Text */

WS_OVERLAPPEDWINDOW, /* default window */

CW_USEDEFAULT, /* Windows decides the position */

CW_USEDEFAULT, /* where the window ends up on the screen */

WIDTH+200, /* The programs width */

HEIGHT+70, /* and height in pixels */

HWND_DESKTOP, /* The window is a child-window to desktop */

NULL, /* No menu */

hThisInstance, /* Program Instance handler */

NULL /* No Window Creation data */

);

/* Make the window visible on the screen */

ShowWindow (hwnd, nCmdShow);

/* Run the message loop. It will run until GetMessage() returns 0 */

while (GetMessage (&messages, NULL, 0, 0)) {

/* Translate virtual-key messages into character messages */

TranslateMessage(&messages);

/* Send message to WindowProcedure */

DispatchMessage(&messages);

}

/* The program return-value is 0 - The value that PostQuitMessage() gave */

return messages.wParam;

}

//从文件中加载7个形状

int load_shape() {

FILE* f=fopen("shapes.txt","rb");

if(f==NULL) {

return -1;

}

for(int i=0; i<7; i++) {

for(int j=0; j<4; j++) {

for(int k=0; k<4; k++) {

if(fscanf(f,"%d",&shapes[i][j][k])!=1) {

return -1;

}

}

}

}

fclose(f);

return 0;

}

//随机生成一个新形状

void give_new_shape() {

int shape_num=rand()%7;

for(int i=0; i<4; i++) {

for(int j=0; j<4; j++) {

shape[i][j]=shapes[shape_num][i][j];

}

}

}

void add_score() {

score+=100;

}

//消除没有空格子的行

void clear_up() {

for(int i=row; i<=row+3; i++) {

if(i>BOTTOM)continue;

bool there_is_blank=false;

for(int j=LEFT; j<=RIGHT; j++) {

if(board[i][j]==0) {

there_is_blank=true;

break;

}

}

if(!there_is_blank) {

add_score();

for(int r=i; r>=1; r--) {

for(int c=LEFT; c<=RIGHT; c++) {

board[r][c]=board[r-1][c];

}

}

}

}

}

//检测形状在当前位置是否合法(即是否重合了非空的格子)

bool is_legel() {

for(int i=0; i<4; i++) {

for(int j=0; j<4; j++) {

if(shape[i][j]==1&&board[row+i][column+j]==1) {

return false;

}

}

}

return true;

}

//逆时针旋转一个行列数为mn的方阵

void rotate_matrix(int mn) {

int** a=shape;

int s=0;

for(int n=mn; n>=1; n-=2) {

for(int i=0; i<n-1; i++) {

int t=a[s+i][s];

a[s+i][s]=a[s][s+n-i-1];

a[s][s+n-i-1]=a[s+n-i-1][s+n-1];

a[s+n-i-1][s+n-1]=a[s+n-1][s+i];

a[s+n-1][s+i]=t;

}

s++;

}

}

//顺时针旋转一个行列数为mn的方阵

void rerotate_matrix(int mn) {

int** a=shape;

int s=0;

for(int n=mn; n>=1; n-=2) {

for(int i=0; i<n-1; i++) {

int t=a[s+i][s];

a[s+i][s]=a[s+n-1][s+i];

a[s+n-1][s+i]=a[s+n-i-1][s+n-1];

a[s+n-i-1][s+n-1]=a[s][s+n-i-1];

a[s][s+n-i-1]=t;

}

s++;

}

}

//显示一个格子

void paint_lattice(HDC hdc,int x,int y,int color) {

if(x<TOP||x>BOTTOM||y<LEFT||y>RIGHT) {

return ;

}

x-=TOP;

y-=LEFT;

int left=lattices_left+y*width;

int right=lattices_left+y*width+width;

int top=lattices_top+x*height;

int bottom=lattices_top+x*height+height;

MoveToEx (hdc,left,top, NULL) ;

LineTo (hdc,right,top) ;

MoveToEx (hdc,left,top, NULL) ;

LineTo (hdc,left,bottom) ;

MoveToEx (hdc,left,bottom, NULL) ;

LineTo (hdc,right,bottom) ;

MoveToEx (hdc,right,top, NULL) ;

LineTo (hdc,right,bottom) ;

SelectObject(hdc, grey_brush);

if(color==0) {

SelectObject(hdc, white_brush);

}

Rectangle(hdc,left,top,right,bottom);

}

//更新界面,仅更新Rect区域(形状所在的那几行)内

void update_UI(HWND hwnd) {

static RECT rect;

rect.left=lattices_left;

rect.right=lattices_left+M*width+width;

rect.top=lattices_top+(row-1)*height;

rect.bottom=lattices_top+(row+4)*height;

InvalidateRect (hwnd,&rect, false) ;

}

//更新界面,更新整个界面

void update_UI_all(HWND hwnd) {

InvalidateRect (hwnd,NULL, false) ;

}

//画界面

void paint_UI(HDC hdc) {

SetBkColor(hdc,BKCOLOR);

SelectObject(hdc,hPen); //选用画笔

char score_str[20];

sprintf(score_str,"Score:%d",score);

TextOut(hdc,10,10,score_str,strlen(score_str));

sprintf(score_str,"Highest Scores:");

TextOut(hdc,WIDTH+50,50,score_str,strlen(score_str));

for(int i=0; i<3; i++) {

sprintf(score_str,"%d",high_score[i]);

TextOut(hdc,WIDTH+50,50+(i+1)*20,score_str,strlen(score_str));

}

for(int i=TOP; i<=BOTTOM; i++) {

for(int j=LEFT; j<=RIGHT; j++) {

paint_lattice(hdc,i,j,board[i][j]);

}

}

for(int i=0; i<4; i++) {

for(int j=0; j<4; j++) {

if(shape[i][j]==1)

paint_lattice(hdc,row+i,column+j,shape[i][j]);

}

}

}

//旋转当前形状并更新界面

int rotate_shape(HWND hwnd) {

int mn=4;

rotate_matrix(mn);

if(!is_legel()) {

rerotate_matrix(mn);

}

update_UI(hwnd);

}

void reset_rc() {

row=0;

column=MM/2-2;

}

//读取游戏最高分数据

int load_scores(int* a) {

FILE* f=fopen("scores.txt","r");

if(f==NULL)return -1;

fscanf(f,"%d%d%d",&a[0],&a[1],&a[2]);

return 0;

}

//初始化游戏数据

void init_play() {

load_scores(high_score);

for(int i=0; i<NN; i++) {

for(int j=0; j<MM; j++) {

board[i][j]=0;

}

}

for(int i=0; i<N; i++) {

for(int j=0; j<LEFT; j++) {

board[i][j]=1;

}

}

for(int i=0; i<N; i++) {

for(int j=RIGHT+1; j<MM; j++) {

board[i][j]=1;

}

}

for(int i=BOTTOM+1; i<NN; i++) {

for(int j=0; j<MM; j++) {

board[i][j]=1;

}

}

reset_rc();

score=0;

give_new_shape();

is_pause=false;

return ;

}

bool check_is_lose() {

if(row==0)return true;

return false;

}

//对最高分和此次得分排序,若创造新纪录则返回true

bool sort_scores(int* a) {

int temp=a[3];

for(int i=0; i<4; i++) {

for(int j=0; j<3; j++) {

if(a[j]<a[j+1]) {

int t=a[j];

a[j]=a[j+1];

a[j+1]=t;

}

}

}

if(temp>a[3])return true;

return false;

}

//写最高分数据

int write_scores(int* a) {

FILE* f=fopen("scores.txt","w");

if(f==NULL)return -1;

fprintf(f,"%d\\n%d\\n%d\\n",a[0],a[1],a[2]);

return 0;

}

//保存最高分数据

bool save_score(HWND hwnd) {

high_score[3]=score;

bool made_record=sort_scores(high_score);

if(write_scores(high_score)!=0) {

MessageBox(hwnd,"Write file error.Program will exit.","Error",NULL);

DestroyWindow(hwnd);

}

return made_record;

}

void lose_game(HWND hwnd) {

if(is_pause)return ;

is_pause=true;

char message[200]="You lose the Game.\\n";

char title[50]="Game Over";

if(save_score(hwnd)) {

strcat(message,"You have made a new record.\\n");

char score_str[100];

sprintf(score_str,"The Highest Scores:\\n%d\\n%d\\n%d\\n",high_score[0],high_score[1],high_score[2]);

strcat(message,score_str);

}

strcat(message,"\\nPlay again?\\n");

if(MessageBox(hwnd,message,title,MB_YESNO)==IDYES) {

init_play();

update_UI_all(hwnd);

} else {

exit(0);

}

}

void exit_game(HWND hwnd) {

is_pause=true;

char message[200]="";

char title[50]="Exit";

if(save_score(hwnd)) {

strcat(message,"You have made a new record.\\n");

char score_str[100];

sprintf(score_str,"The Highest Scores:\\n%d\\n%d\\n%d\\n",high_score[0],high_score[1],high_score[2]);

strcat(message,score_str);

MessageBox(hwnd,message,title,NULL);

}

exit(0);

}

//当前形状落地之后,更新board

void shape_to_ground() {

for(int i=0; i<4; i++) {

for(int j=0; j<4; j++) {

board[row+i][column+j]=shape[i][j]==1?1:board[row+i][column+j];

}

}

}

//形状下落

int move_down(HWND hwnd) {

row++;

if(!is_legel()) {

row--;

if(check_is_lose()) {

lose_game(hwnd);

return 0;

}

shape_to_ground();

clear_up();

update_UI_all(hwnd);

reset_rc();

give_new_shape();

}

update_UI(hwnd);

}

//进程参数结构体

struct thread_arg {

HWND arg_hwnd;

};

//形状下落进程要执行的函数

void* down_thread_function(void * args) {

thread_arg *arg=(thread_arg*)args;

HWND dhwnd=arg->arg_hwnd;

while(true) {

if(is_pause) {

Sleep(300);

continue;

}

move_down(dhwnd);

Sleep(LONG_SLEEP);

}

}

//初始化形状下落进程

int init_down_thread(HWND hwnd) {

int ret;

pthread_t t;

thread_arg *argp=new thread_arg;

argp->arg_hwnd=hwnd;

ret=pthread_create(&t,NULL,down_thread_function,argp);

delete argp;

if(ret!=0) {

return -1;

}

return 0;

}

//初始化游戏程序

int init_game(HWND hwnd) {

board=new int*[NN];

for(int i=0; i<NN; i++) {

board[i]=new int[MM];

}

shape=new int*[4];

for(int i=0; i<4; i++) {

shape[i]=new int[4];

}

srand(time(0));

if(load_shape()!=0) {

MessageBox(hwnd,"Read file error.Program will exit.","Error",NULL);

exit(-1);

}

init_play();

update_UI_all(hwnd);

if(init_down_thread(hwnd)!=0) {

MessageBox(hwnd,"Thread error.Program will exit.","Error",NULL);

exit(-1);

}

return 0;

}

//形状左右移动

int move_lr(HWND hwnd,int lr) {

int temp=column;

if(lr==0)column--;

else {

column++;

}

if(!is_legel()) {

column=temp;

}

update_UI(hwnd);

}

int handle_key(HWND hwnd,WPARAM wParam) {

if(wParam==VK_ESCAPE) {//ESC退出

exit_game(hwnd);

}

if(wParam==VK_SPACE) {//空格暂停

is_pause=!is_pause;

}

if(is_pause==true) {

Sleep(300);

return 0;

}

if(wParam==VK_UP) {

rotate_shape(hwnd);

}

if(wParam==VK_DOWN) {

move_down(hwnd);

}

if(wParam==VK_LEFT) {

move_lr(hwnd,0);

}

if(wParam==VK_RIGHT) {

move_lr(hwnd,1);

}

return 0;

}

/* This function is called by the Windows function DispatchMessage() */

HWND hwnd;

LRESULT CALLBACK WindowProcedure (HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam) {

static HDC hdc;

static HDC hdcBuffer;

static HBITMAP hBitMap;

static PAINTSTRUCT ps ;

switch (message) { /* handle the messages */

case WM_CREATE:

init_game(hwnd);

break;

case WM_KEYDOWN:

handle_key(hwnd,wParam);

break;

case WM_DESTROY:

exit_game(hwnd);

PostQuitMessage (0); /* send a WM_QUIT to the message queue */

break;

case WM_PAINT:

hdc = BeginPaint (hwnd, &ps) ;

paint_UI(hdc);

EndPaint (hwnd, &ps) ;

break;

default: /* for messages that we don't deal with */

return DefWindowProc (hwnd, message, wParam, lParam);

}

return 0;

}

收藏 (0) 打赏

感谢您的支持,我会继续努力的!

打开微信/支付宝扫一扫,即可进行扫码打赏哦,分享从这里开始,精彩与您同在
点赞 (0)

声明:本站所有文章,如无特殊说明或标注,均为本站原创发布。任何个人或组织,在未征得本站同意时,禁止复制、盗用、采集、发布本站内容到任何网站、书籍等各类媒体平台。如若本站内容侵犯了原著者的合法权益,可联系我们进行处理。

快网idc优惠网 建站教程 C++制作俄罗斯方块 https://www.kuaiidc.com/75214.html

相关文章

发表评论
暂无评论
