c语言同名标靶点自动匹配算法实现实例代码

2025-05-27 0 88

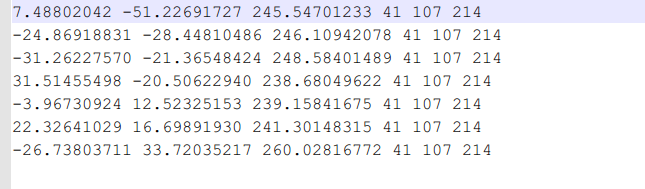

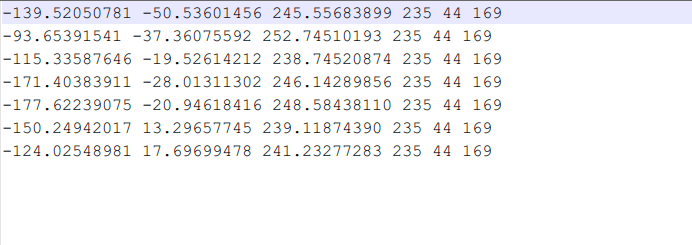

1.两个标靶数据

c语言同名标靶点自动匹配算法实现实例代码

c语言同名标靶点自动匹配算法实现实例代码

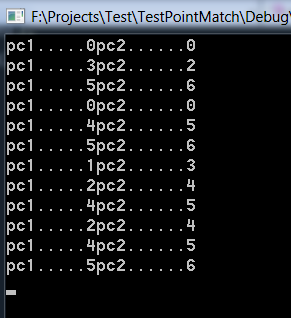

2.匹配结果

c语言同名标靶点自动匹配算法实现实例代码

3.代码

?

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92
#include <iostream>

#include <vector>

#include <math.h>

using namespace std;

struct Point

{

int id;

float x,y,z;

Point(int _id,float _x,float _y,float _z):id(_id),x(_x),y(_y),z(_z){}

};

struct Triangle

{

Point p1,p2,p3;

};

class PointCloud

{

public:

bool readFile(char *filename);

//void PointMatch(const PointCloud& pc1,const PointCloud &pc2);

vector<Point> pData;

int r,g,b;

};

bool PointCloud::readFile(char *filename)

{

if(filename==NULL)return false;

FILE *fp=fopen(filename,"r");

if (!fp)

{

printf("Load file %s failed\\n", filename);

return false;

}

char buffer[100];

int count=0;

while(!feof(fp))

{

fgets(buffer, 300, fp);

float x,y,z;

sscanf_s(buffer,"%f%f%f",&x,&y,&z);

Point p(count++,x,y,z);

pData.push_back(p);

}

pData.pop_back();

}

float calDis(const Point &p1,const Point &p2)

{

return sqrt((p2.x-p1.x)*(p2.x-p1.x)+(p2.y-p1.y)*(p2.y-p1.y)+(p2.z-p1.z)*(p2.z-p1.z));

}

void PointMatch(const PointCloud& pc1,const PointCloud &pc2)

{

for (int i=0;i<pc1.pData.size()-2;++i)

for(int j=i+1;j<pc1.pData.size()-1;++j)

for (int k=j+1;k<pc1.pData.size();++k)

{

Point p1=pc1.pData[i];

Point p2=pc1.pData[j];

Point p3=pc1.pData[k];

float s12=calDis(p1,p2);

float s13=calDis(p1,p3);

float s23=calDis(p2,p3);

for (int m=0;m<pc2.pData.size();++m)

for (int n=0;n<pc2.pData.size();++n)

for (int l=0;l<pc2.pData.size();++l)

{

if (n!=m&&m!=l&&n!=l)

{

Point _p1=pc2.pData[m];

Point _p2=pc2.pData[n];

Point _p3=pc2.pData[l];

float _s12=calDis(_p1,_p2);

float _s13=calDis(_p1,_p3);

float _s23=calDis(_p2,_p3);

if (fabs(s12-_s12)<0.45&&fabs(s13-_s13)<0.45&&fabs(s23-_s23)<0.45)

{

cout<<"pc1....."<<p1.id<<"pc2......"<<_p1.id<<endl;

cout<<"pc1....."<<p2.id<<"pc2......"<<_p2.id<<endl;

cout<<"pc1....."<<p3.id<<"pc2......"<<_p3.id<<endl;

}

}

}

}

}

int main()

{

char *file1="测试点云\\\\点云Mark0.txt";

char *file2="测试点云\\\\点云Mark1.txt";

PointCloud pc1,pc2;

pc1.readFile(file1);

pc2.readFile(file2);

PointMatch(pc1,pc2);

}

总结

以上就是本文关于c语言同名标靶点自动匹配算法实现实例代码的全部内容,希望对大家有所帮助。感兴趣的朋友可以继续参阅本站其他相关专题,如有不足之处,欢迎留言指出。感谢朋友们对本站的支持!
