PHP jpgraph库的配置及生成统计图表:折线图、柱状图、饼状图

jpgraph简介

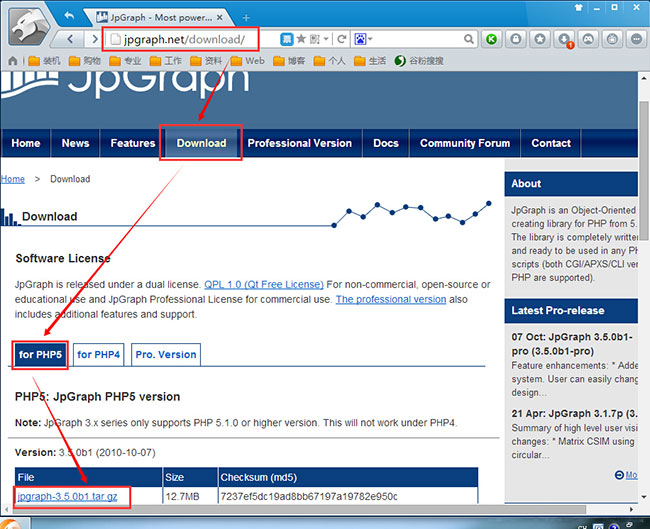

jpgraph是开源的php统计图表生成库，基于php的gd2图形库构建，把生成统计图的相关操作封装，隐藏了部分复杂的操作，使在php页面上输出统计图表变得更加容易。jpgraph的官方网站为：http://jpgraph.net，开发者可以在上面免费下载最新版的jpgraph和阅读相关帮助文档或示例程序。

jpgraph的配置

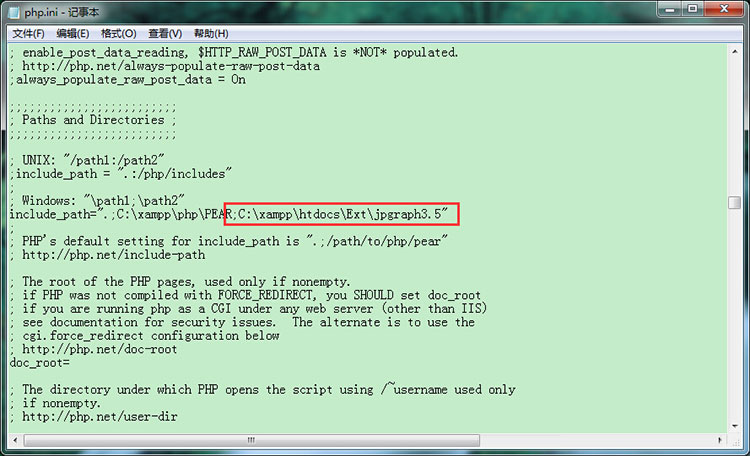

（1）修改文件php.ini

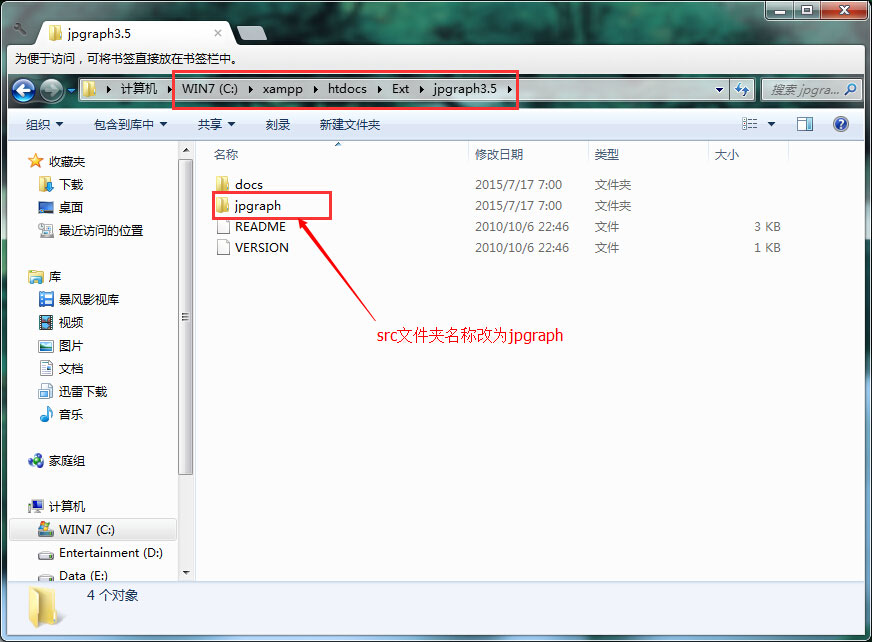

在include_path中添加jpgraph的目录路径，并将jpgraph解压后的src目录名称更改为jpgraph。

（2）检查php是否支持gd库

在php.ini文件中找到语句;extension=php_gd2.dll。把上述语句前的;号去掉，即去掉注释。如果因为php版本不同而找不到此语句，则可直接添加extension=php_gd2.dll

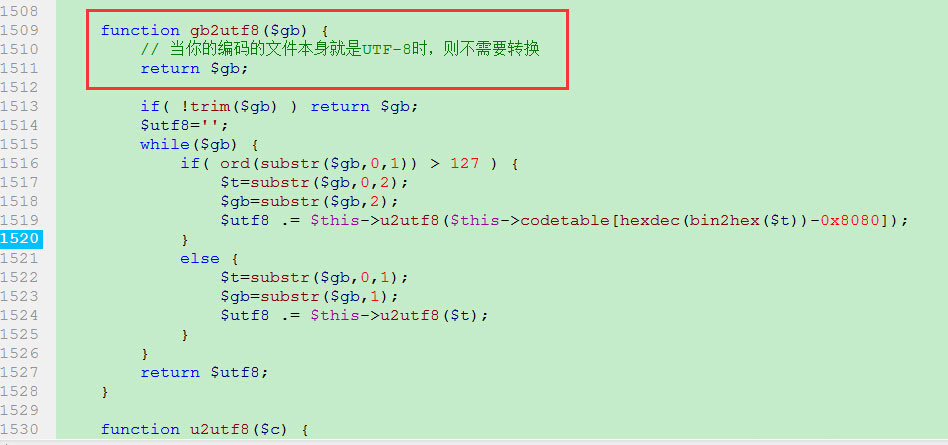

（3）修改文件jpgraph_gb2312.php

找到函数：function gb2utf8($gb)

把函数修改为：

function gb2utf8($gb) {

return $gb;

}

即不使用gb2编码方式转utf8方式的那段代码。

折线图

<?php

require_once ("jpgraph/jpgraph.php");

require_once ("jpgraph/jpgraph_line.php");

$data1 = array(523,634,371,278,685,587,490,256,398,545,367,577); //第一条曲线的数组

$graph = new graph(500,300);

$graph->setscale("textlin");

$graph->setshadow();

$graph->img->setmargin(60,30,30,70); //设置图像边距

$graph->graph_theme = null; //设置主题为null，否则value->show(); 无效

$lineplot1=new lineplot($data1); //创建设置两条曲线对象

$lineplot1->value->setcolor("red");

$lineplot1->value->show();

$graph->add($lineplot1); //将曲线放置到图像上

$graph->title->set("cdn流量图"); //设置图像标题

$graph->xaxis->title->set("月份"); //设置坐标轴名称

$graph->yaxis->title->set("流量(gbits)");

$graph->title->setmargin(10);

$graph->xaxis->title->setmargin(10);

$graph->yaxis->title->setmargin(10);

$graph->title->setfont(ff_simsun,fs_bold); //设置字体

$graph->yaxis->title->setfont(ff_simsun,fs_bold);

$graph->xaxis->title->setfont(ff_simsun,fs_bold);

$graph->xaxis->setticklabels($gdatelocale->getshortmonth());

$graph->stroke(); //输出图像

?>

柱状图

<?php

require_once ("jpgraph/jpgraph.php");

require_once ("jpgraph/jpgraph_bar.php");

$data = array(19,23,34,38,45,67,71,78,85,87,96,145);

$ydata = array("一","二","三","四","五","六","七","八","九","十","十一","十二");

$graph = new graph(500,300); //创建新的graph对象

$graph->setscale("textlin"); //刻度样式

$graph->setshadow(); //设置阴影

$graph->img->setmargin(40,30,40,50); //设置边距

$graph->graph_theme = null; //设置主题为null，否则value->show(); 无效

$barplot = new barplot($data); //创建barplot对象

$barplot->setfillcolor('blue'); //设置颜色

$barplot->value->show(); //设置显示数字

$graph->add($barplot); //将柱形图添加到图像中

$graph->title->set("cdn流量图");

$graph->xaxis->title->set("月份"); //设置标题和x-y轴标题

$graph->yaxis->title->set("流量(mbits)");

$graph->title->setcolor("red");

$graph->title->setmargin(10);

$graph->xaxis->title->setmargin(5);

$graph->xaxis->setticklabels($ydata);

$graph->title->setfont(ff_simsun,fs_bold); //设置字体

$graph->yaxis->title->setfont(ff_simsun,fs_bold);

$graph->xaxis->title->setfont(ff_simsun,fs_bold);

$graph->xaxis->setfont(ff_simsun,fs_bold);

$graph->stroke();

?>

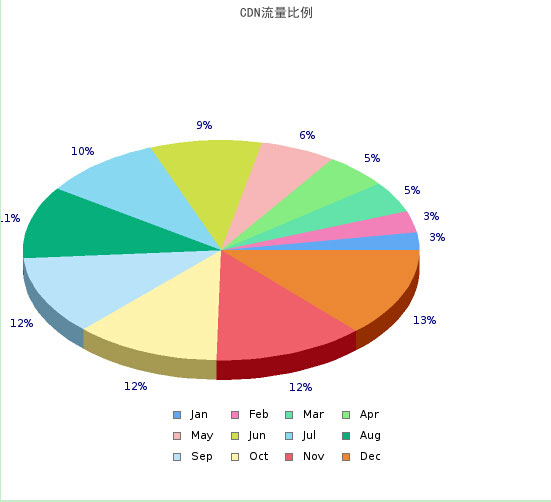

饼状图
