K8S部署Redis单节点Rdb数据持久化故障演练恢复

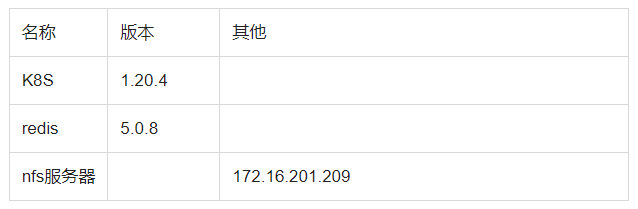

环境：

背景：采用NFS存储卷的方式持久化存储redis 需要保存的文件

一、部署NFS服务器

#服务器安装nfs服务，提供nfs存储功能
1、安装nfs-utils
yuminstallnfs-utils(centos)
或者apt-getinstallnfs-kernel-server(ubuntu)
2、启动服务
systemctlenablenfs-server
systemctlstartnfs-server
3、创建共享目录完成共享配置
mkdir/home/nfs#创建共享目录
4、编辑共享配置
vim/etc/exports
#语法格式：共享文件路径客户机地址（权限）#这里的客户机地址可以是IP,网段，域名,也可以是任意*
/home/nfs*(rw,async,no_root_squash)

服务自检命令
exportfs-arv
5、重启服务
systemctlrestartnfs-server
6、本机查看nfs共享目录
#showmount-e服务器IP地址(如果提示命令不存在，则需要yuminstallshowmount)
showmount-e127.0.0.1
/home/nfs*
7、客户端模拟挂载[所有k8s的节点都需要安装客户端]
[root@master-1~]#yuminstallnfs-utils（centos）
或者apt-getinstallnfs-common（ubuntu）
[root@master-1~]#mkdir/test
[root@master-1~]#mount-tnfs172.16.201.209:/home/nfs/test
#取消挂载
[root@master-1~]#umount/test

二、配置PV 动态供给(NFS StorageClass)，创建pvc

#部署NFS实现自动创建PV插件：一共设计到4个yaml 文件，官方的文档有详细的说明。

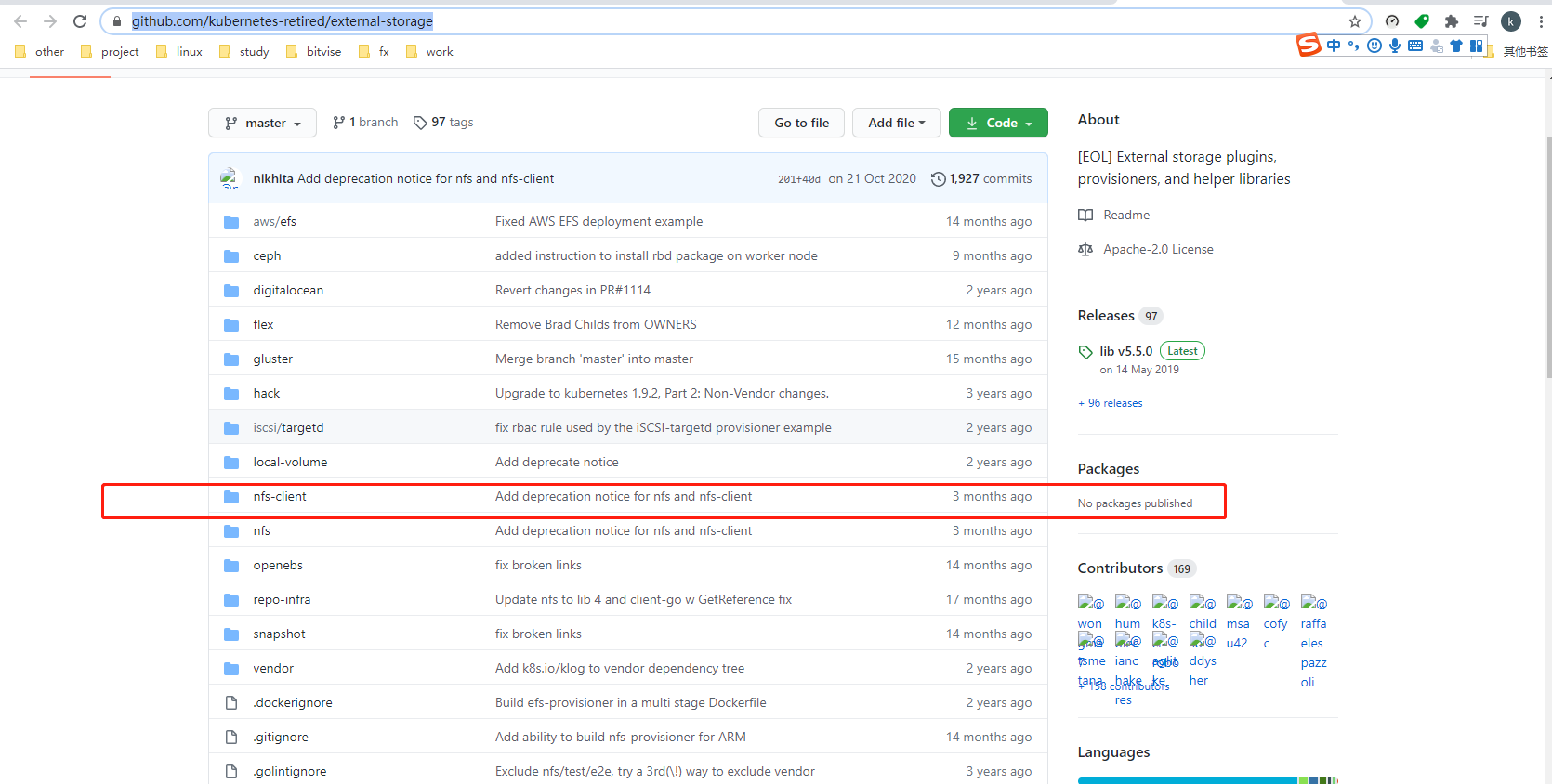

https://github.com/kubernetes-incubator/external-storage

root@k8s-master1:~#mkdir/root/pvc
root@k8s-master1:~#cd/root/pvc

创建rbac.yaml 文件

root@k8s-master1:pvc#catrbac.yaml
kind:ServiceAccount
apiVersion:v1
metadata:
name:nfs-client-provisioner
—
kind:ClusterRole
apiVersion:rbac.authorization.k8s.io/v1
metadata:
name:nfs-client-provisioner-runner
rules:
-apiGroups:[\”\”]
resources:[\”persistentvolumes\”]
verbs:[\”get\”,\”list\”,\”watch\”,\”create\”,\”delete\”]
-apiGroups:[\”\”]
resources:[\”persistentvolumeclaims\”]
verbs:[\”get\”,\”list\”,\”watch\”,\”update\”]
-apiGroups:[\”storage.k8s.io\”]
resources:[\”storageclasses\”]
verbs:[\”get\”,\”list\”,\”watch\”]
-apiGroups:[\”\”]
resources:[\”events\”]
verbs:[\”create\”,\”update\”,\”patch\”]
—
kind:ClusterRoleBinding
apiVersion:rbac.authorization.k8s.io/v1
metadata:
name:run-nfs-client-provisioner
subjects:
-kind:ServiceAccount
name:nfs-client-provisioner
namespace:default
roleRef:
kind:ClusterRole
name:nfs-client-provisioner-runner
apiGroup:rbac.authorization.k8s.io
—
kind:Role
apiVersion:rbac.authorization.k8s.io/v1
metadata:
name:leader-locking-nfs-client-provisioner
rules:
-apiGroups:[\”\”]
resources:[\”endpoints\”]
verbs:[\”get\”,\”list\”,\”watch\”,\”create\”,\”update\”,\”patch\”]
—
kind:RoleBinding
apiVersion:rbac.authorization.k8s.io/v1
metadata:
name:leader-locking-nfs-client-provisioner
subjects:
-kind:ServiceAccount
name:nfs-client-provisioner
#replacewithnamespacewhereprovisionerisdeployed
namespace:default
roleRef:
kind:Role
name:leader-locking-nfs-client-provisioner
apiGroup:rbac.authorization.k8s.io

创建deployment.yaml 文件

#官方默认的镜像地址，国内可能无法下载，可以使用 image:

fxkjnj/nfs-client-provisioner:latest

#定义NFS 服务器的地址，共享目录名称

root@k8s-master1:pvc#catdeployment.yaml
apiVersion:v1
kind:ServiceAccount
metadata:
name:nfs-client-provisioner
—
kind:Deployment
apiVersion:apps/v1
metadata:
name:nfs-client-provisioner
spec:
replicas:1
strategy:
type:Recreate
selector:
matchLabels:
app:nfs-client-provisioner
template:
metadata:
labels:
app:nfs-client-provisioner
spec:
serviceAccountName:nfs-client-provisioner
containers:
–name:nfs-client-provisioner
image:fxkjnj/nfs-client-provisioner:latest
volumeMounts:
–name:nfs-client-root
mountPath:/persistentvolumes
env:
–name:PROVISIONER_NAME
value:fuseim.pri/ifs
–name:NFS_SERVER
value:172.16.201.209
–name:NFS_PATH
value:/home/nfs
volumes:
–name:nfs-client-root
nfs:
server:172.16.201.209
path:/home/nfs

创建class.yaml

# archiveOnDelete: \”true\” 表示当PVC 删除后，后端数据不直接删除，而是归档

root@k8s-master1:pvc#catclass.yaml
apiVersion:storage.k8s.io/v1
kind:StorageClass
metadata:
name:managed-nfs-storage
provisioner:fuseim.pri/ifs#orchooseanothername,mustmatchdeployment\’senvPROVISIONER_NAME\’
parameters:
archiveOnDelete:\”true\”

创建pvc.yaml

#指定storageClassName 存储卷的名字

# requests:

storage: 100Gi 指定需要多大的存储

#注意，这里pvc ，我们创建在redis 命名空间下了，如果没有redis 还需要先创建才行， kubectl create namespace redis

root@k8s-master1:pvc#catpvc.yaml
apiVersion:v1
kind:PersistentVolumeClaim
metadata:
name:nfs-redis
namespace:redis
spec:
storageClassName:\”managed-nfs-storage\”
accessModes:
-ReadWriteMany
resources:
requests:
storage:100Gi

#部署
root@k8s-master1:pvc#kubectlapply-f.
#查看存储卷
root@k8s-master1:pvc#kubectlgetsc
NAMEPROVISIONERRECLAIMPOLICYVOLUMEBINDINGMODEALLOWVOLUMEEXPANSIONAGE
managed-nfs-storagefuseim.pri/ifsDeleteImmediatefalse25h
#查看pvc
root@k8s-master1:pvc#kubectlgetpvc-nredis
NAMESTATUSVOLUMECAPACITYACCESSMODESSTORAGECLASSAGE
nfs-redisBoundpvc-8eacbe25-3875-4f78-91ca-ba83b6967a8a100GiRWXmanaged-nfs-storage21h

三、编写redis yaml 文件

root@k8s-master1:~#mkdir/root/redis
root@k8s-master1:~#cd/root/redis

编写 redis.conf 配置文件，以configmap 的方式挂载到容器中

# require 配置redis 密码

#save 5 1 ，表示每5秒有一个key 变动就写入到 dump.rdb 文件中

# appendonly no ，表示下次可以使用dump.rdb 来恢复 redis 快照的数据

# 注意namespace 为redis

root@k8s-master1:redis#catredis-configmap-rdb.yml
kind:ConfigMap
apiVersion:v1
metadata:
name:redis-config
namespace:redis
labels:
app:redis
data:
redis.conf:|-
protected-modeno
port6379
tcp-backlog511
timeout0
tcp-keepalive300
daemonizeno
supervisedno
pidfile/data/redis_6379.pid
loglevelnotice
logfile\”\”
databases16
always-show-logoyes
save51
save30010
save6010000
stop-writes-on-bgsave-erroryes
rdbcompressionyes
rdbchecksumyes
dbfilenamedump.rdb
dir/data
replica-serve-stale-datayes
replica-read–onlyyes
repl-diskless-syncno
repl-diskless-sync-delay5
repl-disable-tcp-nodelayno
replica-priority100
requirepass123
lazyfree-lazy-evictionno
lazyfree-lazy-expireno
lazyfree-lazy-server-delno
replica-lazy-flushno
appendonlyno
appendfilename\”appendonly.aof\”
appendfsynceverysec
no-appendfsync-on-rewriteno
auto-aof-rewrite-percentage100
auto-aof-rewrite-min–size64mb
aof-load-truncatedyes
aof-use-rdb-preambleyes
lua-time-limit5000
slowlog-log-slower-than10000
slowlog-max-len128
latency-monitor-threshold0
notify-keyspace-events\”\”
hash-max-ziplist-entries512
hash-max-ziplist-value64
list-max-ziplist-size-2
list-compress-depth0
set–max-intset-entries512
zset-max-ziplist-entries128
zset-max-ziplist-value64
hll-sparse-max-bytes3000
stream-node-max-bytes4096
stream-node-max-entries100
activerehashingyes
client-output-buffer-limitnormal000
client-output-buffer-limitreplica256mb64mb60
client-output-buffer-limitpubsub32mb8mb60
hz10
dynamic-hzyes
aof-rewrite-incremental-fsyncyes
rdb-save-incremental-fsyncyes

编写 redis-deployment.yml

#注意namespace 为redis

root@k8s-master1:redis#catredis-deployment.yml
apiVersion:apps/v1
kind:Deployment
metadata:
name:redis
namespace:redis
labels:
app:redis
spec:
replicas:3
selector:
matchLabels:
app:redis
template:
metadata:
labels:
app:redis
spec:
#进行初始化操作，修改系统配置，解决Redis启动时提示的警告信息
initContainers:
–name:system-init
image:busybox:1.32
imagePullPolicy:IfNotPresent
command:
–\”sh\”
–\”-c\”
–\”echo2048>/proc/sys/net/core/somaxconn&&echonever>/sys/kernel/mm/transparent_hugepage/enabled\”
securityContext:
privileged:true
runAsUser:0
volumeMounts:
–name:sys
mountPath:/sys
containers:
–name:redis
image:redis:5.0.8
command:
–\”sh\”
–\”-c\”
–\”redis-server/usr/local/etc/redis/redis.conf\”
ports:
-containerPort:6379
resources:
limits:
cpu:1000m
memory:1024Mi
requests:
cpu:1000m
memory:1024Mi
livenessProbe:
tcpSocket:
port:6379
initialDelaySeconds:300
timeoutSeconds:1
periodSeconds:10
successThreshold:1
failureThreshold:3
readinessProbe:
tcpSocket:
port:6379
initialDelaySeconds:5
timeoutSeconds:1
periodSeconds:10
successThreshold:1
failureThreshold:3
volumeMounts:
–name:data
mountPath:/data
–name:config
mountPath:/usr/local/etc/redis/redis.conf
subPath:redis.conf
volumes:
–name:data
persistentVolumeClaim:
claimName:nfs-redis
–name:config
configMap:
name:redis-config
–name:sys
hostPath:
path:/sys

编写 redis-service.yml

#注意namespace 为redis

#部署
root@k8s-master1:~/kubernetes/redis#kubectlgetpod-nredis
NAMEREADYSTATUSRESTARTSAGE
redis-65f75db6bc-5skgr1/1Running021h
redis-65f75db6bc-75m8m1/1Running021h
redis-65f75db6bc-cp6cx1/1Running021h
root@k8s-master1:~/kubernetes/redis#kubectlgetsvc-nredis
NAMETYPECLUSTER-IPEXTERNAL-IPPORT(S)AGE
redis-frontNodePort10.0.0.1696379:36379/TCP22h

四、测试，访问

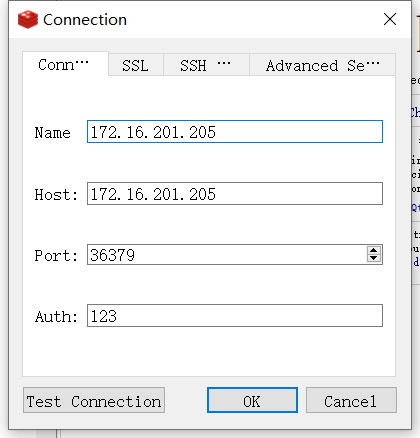

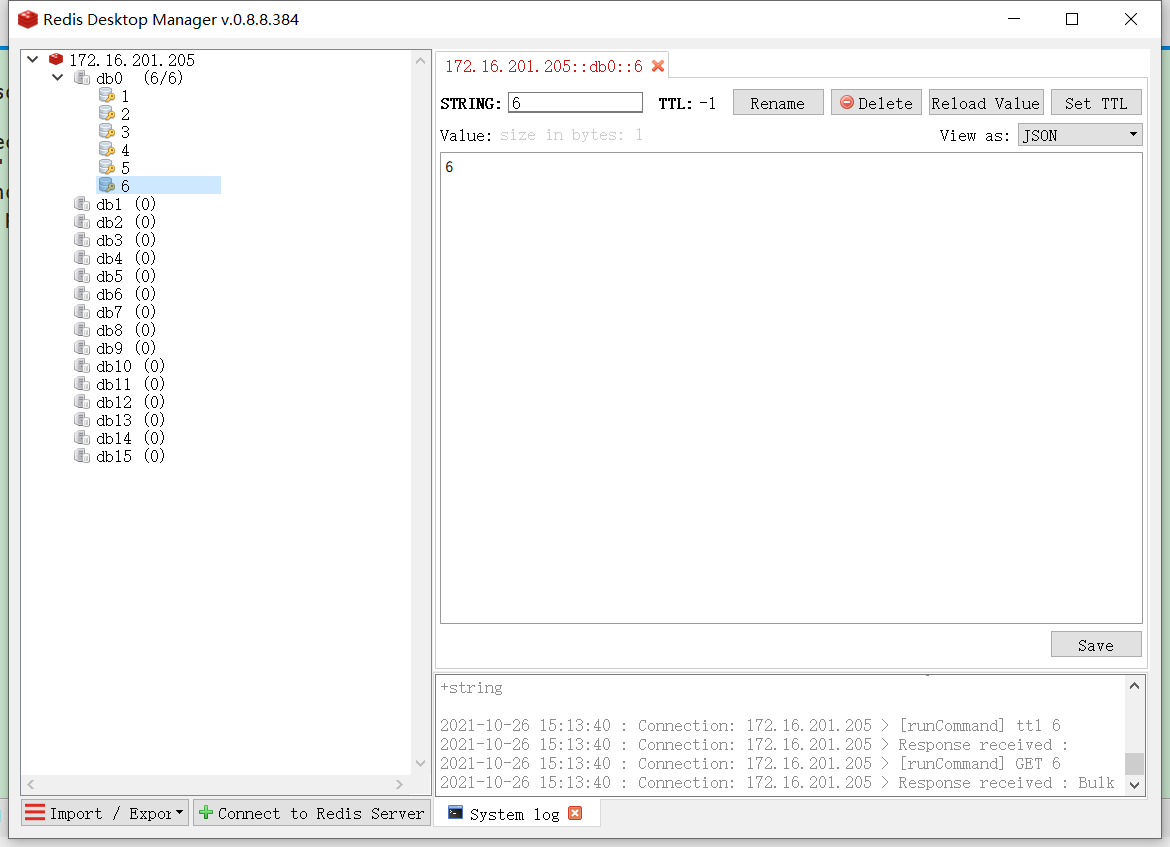

使用redis 客户端工具，写入几个KEY 测试

删除pod，在自动新建pod后，查询键值是否存在

root@k8s-master1:~#kubectlgetpods-nredis
NAMEREADYSTATUSRESTARTSAGE
redis-65f75db6bc-5skgr1/1Running05d20h
redis-65f75db6bc-75m8m1/1Running05d20h
redis-65f75db6bc-cp6cx1/1Running05d20h
root@k8s-master1:~#kubectldelete-nredispodredis-65f75db6bc-5skgr
pod\”redis-65f75db6bc-5skgr\”deleted
#删除pod后，根据副本数，又重新拉取新的pod生成
root@k8s-master1:~#kubectlgetpods-nredis
NAMEREADYSTATUSRESTARTSAGE
redis-65f75db6bc-tnnxp1/1Running054s
redis-65f75db6bc-75m8m1/1Running05d20h
redis-65f75db6bc-cp6cx1/1Running05d20h

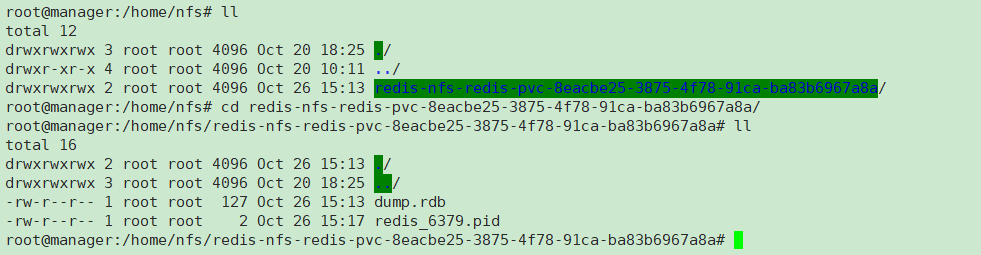

查看nfs共享目录下是否存在 dump.rdb

五、故障演练恢复

(1)数据备份

源redis配置有持久化，直接拷贝持久化目录下的dump.rdb

直接到持久化的目录下，拷贝走dump.rdb 文件

源redis不支持持久化，则进入容器生成dump.rdb并拷出

进入容器：kubectl exec -it redis-xxx /bin/bash -n redis

进入redis命令台：redis-cli

密码认证：auth 123

保存数据，生成dump.rdb文件：save

退出redis命令台：quit

退出容器：exit

从容器中取出数据到本地：kubectl cp -n redis Pod_Name:/data/dump.rdb ./

传输至远程主机：scp dump.rdb root@目标服务器:/目录

(2)数据恢复

停止redis,直接删除创建的deployment
拷贝dump.rdb至目标redis的持久化目录下(注：将覆盖目标redis的数据)
重启pod：kubectl apply -f redis-deployment.yml

#拷贝持久化目录下的dump.rbd文件到root下
cpdump.rdb/root
#停止redis,也就是删除deployment
root@k8s-master1:~/kubernetes/redis#kubectldelete-fredis-deployment.yml
deployment.apps\”redis\”deleted
root@k8s-master1:~/kubernetes/redis#kubectlgetpods-nredis
Noresourcesfoundinredisnamespace.
#拷贝dump.rdb至目标redis的持久化目录下
cp/root/dump.rdb/home/nfs/redis-nfs-redis-pvc-8eacbe25-3875-4f78-91ca-ba83b6967a8a
#重启pod
root@k8s-master1:~/kubernetes/redis#kubectlapply-fredis-deployment.yml
deployment.apps/rediscreated
root@k8s-master1:~/kubernetes/redis#kubectlgetpods-nredis
NAMEREADYSTATUSRESTARTSAGE
redis-65f75db6bc-5jx4m0/1Init:0/103s
redis-65f75db6bc-68jf50/1Init:0/103s
redis-65f75db6bc-b9gvk0/1Init:0/103s
root@k8s-master1:~/kubernetes/redis#kubectlgetpods-nredis
NAMEREADYSTATUSRESTARTSAGE
redis-65f75db6bc-5jx4m1/1Running020s
redis-65f75db6bc-68jf51/1Running020s
redis-65f75db6bc-b9gvk1/1Running020s
