云原生CI/CD框架Tekton国内部署方式

Tekton 是一款功能非常强大而灵活的 CI/CD 开源的云原生框架。致力于提供全功能、标准化的云原生 CI/CD 解决方案。【本文主要是通过流水线自动化的将tekton镜像同步到腾讯云仓库，并部署tekton】

应用镜像

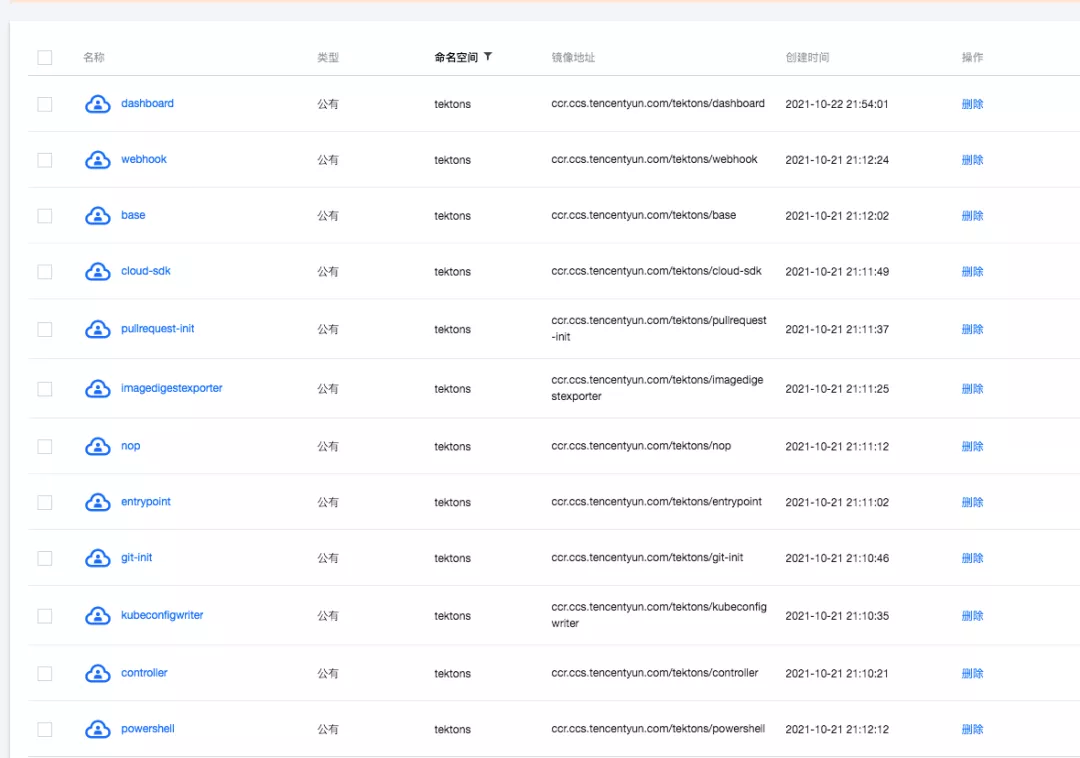

阿里云镜像仓库居然有限制…这次转到腾讯云镜像仓库了;ccr.ccs.tencentyun.com/tektons/dashboard

Pipeline

借助GitHub Actions:

同步镜像并生成镜像映射文件(json):
收集镜像映射文件为制品;

This is a basic workflow to help you get started with Actions
name: Get Tekton Images
env:
VERSION: v0.29.0
on:
push:
paths:
– \’.github/workflows/tekton.yaml\’
– \’tekton/**\’
jobs:
build:
runs-on: ubuntu-18.04
steps:
– uses: actions/checkout@v2
– name: build
run: |
curl https://storage.googleapis.com/tekton-releases/pipeline/previous/${{ env.VERSION }}/release.yaml -o release.yaml
grep -v \”#\” release.yaml | grep -v \”^$\” > release1.yaml ; sed -i \’s/\\-\\-\\-/###/g\’ release1.yaml
python3 tekton/get_tekton_images.py ${{ secrets.DOCKER_USER}} ${{ secrets.DOCKER_PASSWD}}
– uses: actions/upload-artifact@v2
with:
name: ${{ env.VERSION }}-tekton-images
path: tekton_images.json

部署文件解析

1.下载release部署yaml;

2.解析Deployments对象中的images;

a.tekton-pipelines-controller

b.tekton-pipelines-webhook

c.tekton-dashboard(最新tag)

gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/controller:v0.29.0@sha256:72f79471f06d096cc53e51385017c9f0f7edbc87379bf415f99d4bd11cf7bc2b
gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/kubeconfigwriter:v0.29.0@sha256:6d058f2203b9ab66f538cb586c7dc3b7cc31ae958a4135dd99e51799f24b06c9
gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/git-init:v0.29.0@sha256:c0b0ed1cd81090ce8eecf60b936e9345089d9dfdb6ebdd2fd7b4a0341ef4f2b9
gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/entrypoint:v0.29.0@sha256:66958b78766741c25e31954f47bc9fd53eaa28263506b262bf2cc6df04f18561
gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/nop:v0.29.0@sha256:6a037d5ba27d9c6be32a9038bfe676fb67d2e4145b4f53e9c61fb3e69f06e816
gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/imagedigestexporter:v0.29.0@sha256:e38dd0d32253fce5aaf1e501c0bc71facc3720564b7e97055921cc5390d612e0
gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/pullrequest-init:v0.29.0@sha256:d28202fb8b33a1d4c05f261ef8dcbcdcf3b469887d4dad256ce91f73c917420e
gcr.io/google.com/cloudsdktool/cloud-sdk@sha256:27b2c22bf259d9bc1a291e99c63791ba0c27a04d2db0a43241ba0f1f20f4067f
gcr.io/distroless/base@sha256:aa4fd987555ea10e1a4ec8765da8158b5ffdfef1e72da512c7ede509bc9966c4
mcr.microsoft.com/powershell:nanoserver@sha256:b6d5ff841b78bdf2dfed7550000fd4f3437385b8fa686ec0f010be24777654d6
gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/webhook:v0.29.0@sha256:46d5b90a7f4e9996351ad893a26bcbd27216676ad4d5316088ce351fb2c2c3dd

用Python编写一个数据解析脚本：

import yaml
import json
import sys
import os
class Tekton :
def __init__(self, file_name, registry_user, registry_passwd):
self.yaml_file = file_name
self.arg_imgs = [\”gcr.io/tekton-releases/github.com/tektoncd/dashboard/cmd/dashboard@sha256:95f71a2568ced67ec370b5360f88bec3280601908cac9e62dfbb801114480437\”]
self.split_str = \”###\”
self.deployments = [\”tekton-pipelines-controller\”, \”tekton-pipelines-webhook\”]
self.kind_type = \”Deployment\”
self.target_registry = \”ccr.ccs.tencentyun.com/tektons/\”
self.repos = [ \”controller\”, \”kubeconfigwriter\”, \”git-init\”,
\”entrypoint\”,\”nop\”,\”imagedigestexporter\”,
\”pullrequest-init\”, \”cloud-sdk\”, \”base\”, \”powershell\”, \”webhook\”]
self.result = []
self.registry_user = registry_user
self.registry_passwd = registry_passwd
def load_yaml(self, data):
content = yaml.load(data)
return content
def load_json(self, data):
content = json.loads(data)
return content
def get_images(self):
f = open(self.yaml_file, \’r\’).read()
for i in f.split(\”###\”)[:-1]:
try:
content = self.load_yaml(i.replace(\”###\”, \”\”))
if content[\”kind\”] == self.kind_type:
deploy_name = content[\”metadata\”][\”name\”]
# 获取image
if deploy_name in self.deployments:
img = content[\”spec\”][\”template\”][\”spec\”][\”containers\”][0][\”image\”]
self.arg_imgs.append(img)
# 获取参数中的images
if deploy_name == \”tekton-pipelines-controller\”:
arg_img = content[\”spec\”][\”template\”][\”spec\”][\”containers\”][0][\”args\”]
for a in arg_img:
if not a.startswith(\”-\”):
self.arg_imgs.append(a)
except Exception as e:
print(e)
return self.arg_imgs
def save_json_file(self, data, file_name):
for i in self.arg_imgs:
self.result.append({
\”s_image\”: i,
\”t_image\”: self.target_registry + i.split(\”/\”)[-1].split(\”@\”)[0]
})
newdata = json.dumps(self.result, indent=4)
a=open(file_name, \’w\’)
a.write(newdata)
a.close()
def sync_images(self):
f = open(\”tekton_images.json\”, \’r\’).read()
content = self.load_json(f)
docker_login_cmd = \”docker login -u {0} -p {1} {2}\”.format(
self.registry_user,
self.registry_passwd,
self.target_registry.split(\”/\”)[0])
os.system(docker_login_cmd)
for item in content:
print(\”[GetImages] {}\”.format(item))
docker_pull_cmd = \”docker pull {0}\”.format(item[\”s_image\”])
docker_tag_cmd = \”docker tag {0} {1}\”.format(item[\”s_image\”], item[\”t_image\”])
docker_push_cmd = \”docker push {0}\”.format(item[\”t_image\”])
os.system(docker_pull_cmd + \”&&\” + docker_tag_cmd + \”&&\” + docker_push_cmd )
print(\”[GetImagesDone] {}\”.format(item))
if __name__ == \’__main__\’:
tekton = Tekton(\”release1.yaml\”, sys.argv[1], sys.argv[2])
images = tekton.get_images()
tekton.save_json_file(images, \”tekton_images.json\”)
tekton.sync_images()

镜像映射文件

s_image 原始镜像名称， t_image 目标镜像名称; 这里使用腾讯云的镜像仓库;

[
{
\”s_image\”: \”gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/controller:v0.29.0@sha256:72f79471f06d096cc53e51385017c9f0f7edbc87379bf415f99d4bd11cf7bc2b\”,
\”t_image\”: \”ccr.ccs.tencentyun.com/tektons/controller:v0.29.0\”
},
{
\”s_image\”: \”gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/kubeconfigwriter:v0.29.0@sha256:6d058f2203b9ab66f538cb586c7dc3b7cc31ae958a4135dd99e51799f24b06c9\”,
\”t_image\”: \”ccr.ccs.tencentyun.com/tektons/kubeconfigwriter:v0.29.0\”
},
{
\”s_image\”: \”gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/git-init:v0.29.0@sha256:c0b0ed1cd81090ce8eecf60b936e9345089d9dfdb6ebdd2fd7b4a0341ef4f2b9\”,
\”t_image\”: \”ccr.ccs.tencentyun.com/tektons/git-init:v0.29.0\”
},
{
\”s_image\”: \”gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/entrypoint:v0.29.0@sha256:66958b78766741c25e31954f47bc9fd53eaa28263506b262bf2cc6df04f18561\”,
\”t_image\”: \”ccr.ccs.tencentyun.com/tektons/entrypoint:v0.29.0\”
},
{
\”s_image\”: \”gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/nop:v0.29.0@sha256:6a037d5ba27d9c6be32a9038bfe676fb67d2e4145b4f53e9c61fb3e69f06e816\”,
\”t_image\”: \”ccr.ccs.tencentyun.com/tektons/nop:v0.29.0\”
},
{
\”s_image\”: \”gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/imagedigestexporter:v0.29.0@sha256:e38dd0d32253fce5aaf1e501c0bc71facc3720564b7e97055921cc5390d612e0\”,
\”t_image\”: \”ccr.ccs.tencentyun.com/tektons/imagedigestexporter:v0.29.0\”
},
{
\”s_image\”: \”gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/pullrequest-init:v0.29.0@sha256:d28202fb8b33a1d4c05f261ef8dcbcdcf3b469887d4dad256ce91f73c917420e\”,
\”t_image\”: \”ccr.ccs.tencentyun.com/tektons/pullrequest-init:v0.29.0\”
},
{
\”s_image\”: \”gcr.io/google.com/cloudsdktool/cloud-sdk@sha256:27b2c22bf259d9bc1a291e99c63791ba0c27a04d2db0a43241ba0f1f20f4067f\”,
\”t_image\”: \”ccr.ccs.tencentyun.com/tektons/cloud-sdk\”
},
{
\”s_image\”: \”gcr.io/distroless/base@sha256:aa4fd987555ea10e1a4ec8765da8158b5ffdfef1e72da512c7ede509bc9966c4\”,
\”t_image\”: \”ccr.ccs.tencentyun.com/tektons/base\”
},
{
\”s_image\”: \”mcr.microsoft.com/powershell:nanoserver@sha256:b6d5ff841b78bdf2dfed7550000fd4f3437385b8fa686ec0f010be24777654d6\”,
\”t_image\”: \”ccr.ccs.tencentyun.com/tektons/powershell:nanoserver\”
},
{
\”s_image\”: \”gcr.io/tekton-releases/github.com/tektoncd/pipeline/cmd/webhook:v0.29.0@sha256:46d5b90a7f4e9996351ad893a26bcbd27216676ad4d5316088ce351fb2c2c3dd\”,
\”t_image\”: \”ccr.ccs.tencentyun.com/tektons/webhook:v0.29.0\”
},
{
\”s_image\”: \”gcr.io/tekton-releases/github.com/tektoncd/dashboard/cmd/dashboard@sha256:95f71a2568ced67ec370b5360f88bec3280601908cac9e62dfbb801114480437\”,
\”t_image\”: \”ccr.ccs.tencentyun.com/tektons/dashboard\”
}
]

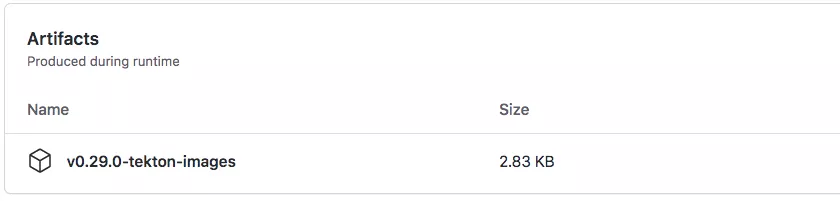

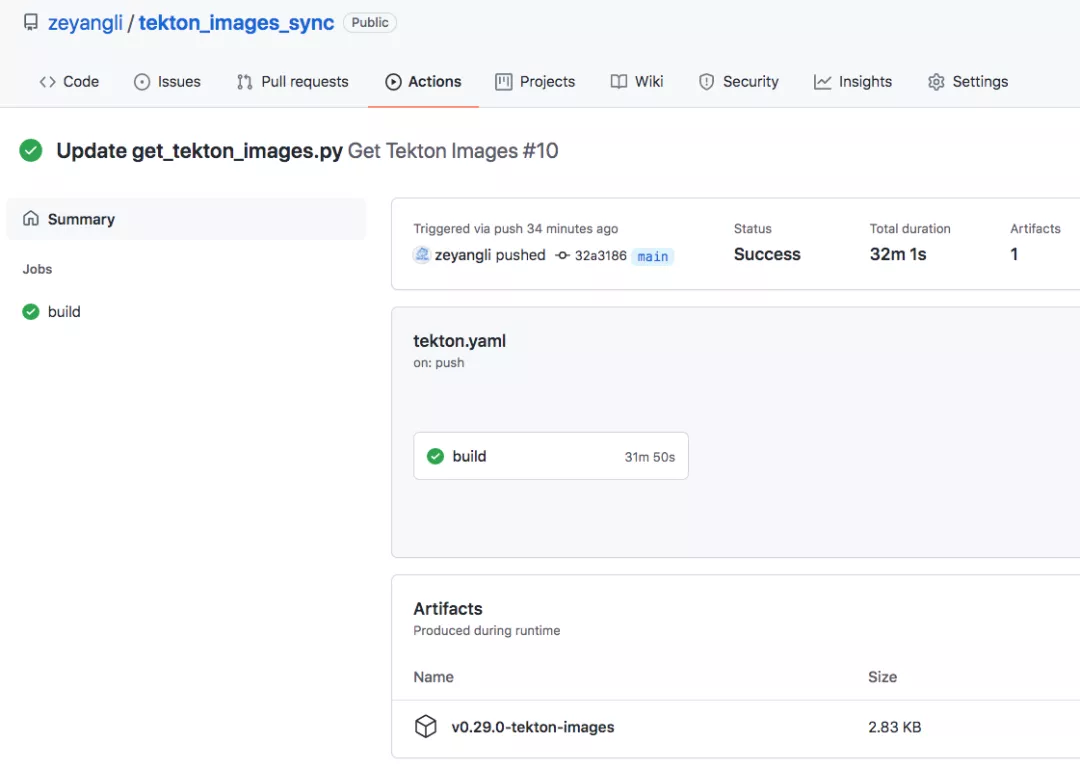

镜像映射文件可以在GitHubActions页面下载：

下载镜像脚本

解析上面生成的镜像文件，docker pull下载对应的镜像到本地;

import json
import os
class Tekton:
def __init__(self):
self.json_file = \”tekton_images.json\”
self.target_registry = \”ccr.ccs.tencentyun.com/tektons/\”
# self.registry_user = registry_user
# self.registry_passwd = registry_passwd
def load_json(self, data):
content = json.loads(data)
return content
def down_images(self):
f = open(self.json_file, \’r\’).read()
content = self.load_json(f)
# docker_login_cmd = \”docker login -u {0} -p {1} {2}\”.format(
# self.registry_user,
# self.registry_passwd,
# self.target_registry.split(\”/\”)[0])
for item in content:
print(\”[GetImages] {}\”.format(item[\”t_image\”]))
docker_pull_cmd = \”docker pull {0}\”.format(item[\”t_image\”])
# docker_tag_cmd = \”docker tag {0} {1}\”.format(item[\”t_image\”], item[\”s_image\”].split(\”@\”)[0])
os.system(docker_pull_cmd + \”&&\” + docker_tag_cmd )
print(\”[GetImagesDone] {}\”.format(item))
if __name__ == \’__main__\’:
t = Tekton().down_images()
