Java swing实现支持录音等功能的钢琴程序

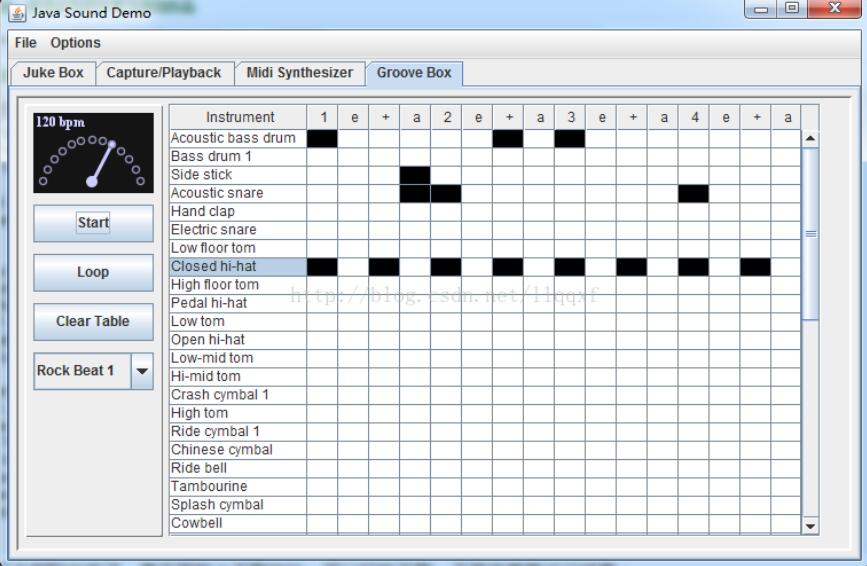

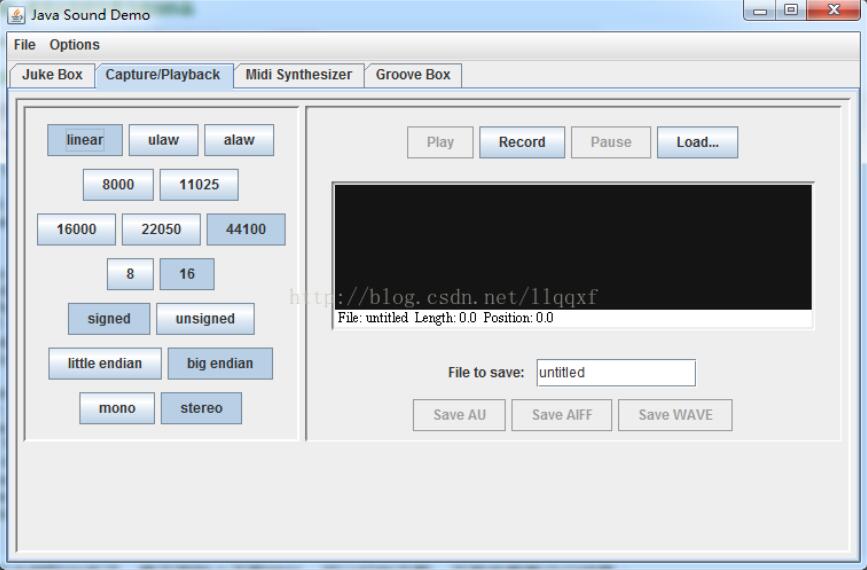

今天给大家介绍一下Java实现钢琴的小程序，程序虽小，功能挺多，支持循环播放，录音等功能，首先简单介绍下源码结构：

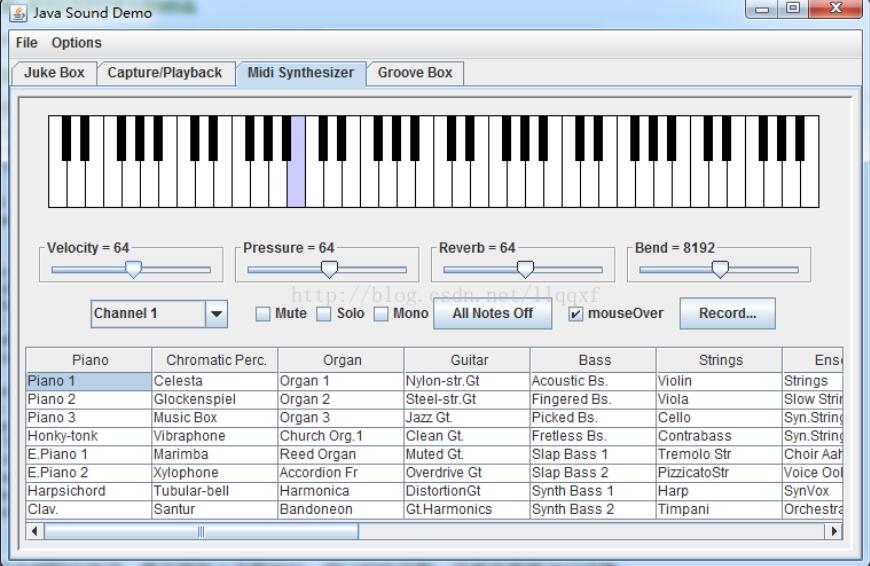

先看看钢琴界面实现，添加相应滴监听事件：

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

/*

* @(#)MidiSynth.java 1.15 99/12/03

*

* Sun grants you ("Licensee") a non-exclusive, royalty free, license to use,

* modify and redistribute this software in source and binary code form,

* provided that i) this copyright notice and license appear on all copies of

* the software; and ii) Licensee does not utilize the software in a manner

* which is disparaging to Sun.

*

* This software is provided "AS IS," without a warranty of any kind. ALL

* EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES, INCLUDING ANY

* IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR

* NON-INFRINGEMENT, ARE HEREBY EXCLUDED. SUN AND ITS LICENSORS SHALL NOT BE

* LIABLE FOR ANY DAMAGES SUFFERED BY LICENSEE AS A RESULT OF USING, MODIFYING

* OR DISTRIBUTING THE SOFTWARE OR ITS DERIVATIVES. IN NO EVENT WILL SUN OR ITS

* LICENSORS BE LIABLE FOR ANY LOST REVENUE, PROFIT OR DATA, OR FOR DIRECT,

* INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES, HOWEVER

* CAUSED AND REGARDLESS OF THE THEORY OF LIABILITY, ARISING OUT OF THE USE OF

* OR INABILITY TO USE SOFTWARE, EVEN IF SUN HAS BEEN ADVISED OF THE

* POSSIBILITY OF SUCH DAMAGES.

*

* This software is not designed or intended for use in on-line control of

* aircraft, air traffic, aircraft navigation or aircraft communications; or in

* the design, construction, operation or maintenance of any nuclear

* facility. Licensee represents and warrants that it will not use or

* redistribute the Software for such purposes.

*/

import java.awt.*;

import java.awt.event.*;

import javax.swing.*;

import javax.swing.border.*;

import javax.swing.table.*;

import javax.swing.event.*;

import javax.sound.midi.*;

import java.util.Vector;

import java.io.File;

import java.io.IOException;

/**

* Illustrates general MIDI melody instruments and MIDI controllers.

*

* @version @(#)MidiSynth.java 1.15 99/12/03

* @author Brian Lichtenwalter

*/

public class MidiSynth extends JPanel implements ControlContext {

final int PROGRAM = 192;

final int NOTEON = 144;

final int NOTEOFF = 128;

final int SUSTAIN = 64;

final int REVERB = 91;

final int ON = 0, OFF = 1;

final Color jfcBlue = new Color(204, 204, 255);

final Color pink = new Color(255, 175, 175);

Sequencer sequencer;

Sequence sequence;

Synthesizer synthesizer;

Instrument instruments[];

ChannelData channels[];

ChannelData cc; // current channel

JCheckBox mouseOverCB = new JCheckBox("mouseOver", true);

JSlider veloS, presS, bendS, revbS;

JCheckBox soloCB, monoCB, muteCB, sustCB;

Vector keys = new Vector();

Vector whiteKeys = new Vector();

JTable table;

Piano piano;

boolean record;

Track track;

long startTime;

RecordFrame recordFrame;

Controls controls;

public MidiSynth() {

setLayout(new BorderLayout());

JPanel p = new JPanel();

p.setLayout(new BoxLayout(p, BoxLayout.Y_AXIS));

EmptyBorder eb = new EmptyBorder(5,5,5,5);

BevelBorder bb = new BevelBorder(BevelBorder.LOWERED);

CompoundBorder cb = new CompoundBorder(eb,bb);

p.setBorder(new CompoundBorder(cb,eb));

JPanel pp = new JPanel(new BorderLayout());

pp.setBorder(new EmptyBorder(10,20,10,5));

pp.add(piano = new Piano());

p.add(pp);

p.add(controls = new Controls());

p.add(new InstrumentsTable());

add(p);

}

public void open() {

try {

if (synthesizer == null) {

if ((synthesizer = MidiSystem.getSynthesizer()) == null) {

System.out.println("getSynthesizer() failed!");

return;

}

synthesizer.open();

sequencer = MidiSystem.getSequencer();

sequence = new Sequence(Sequence.PPQ, 10);

} catch (Exception ex) { ex.printStackTrace(); return; }

Soundbank sb = synthesizer.getDefaultSoundbank();

if (sb != null) {

instruments = synthesizer.getDefaultSoundbank().getInstruments();

synthesizer.loadInstrument(instruments[0]);

}

MidiChannel midiChannels[] = synthesizer.getChannels();

channels = new ChannelData[midiChannels.length];

for (int i = 0; i < channels.length; i++) {

channels[i] = new ChannelData(midiChannels[i], i);

}

cc = channels[0];

ListSelectionModel lsm = table.getSelectionModel();

lsm.setSelectionInterval(0,0);

lsm = table.getColumnModel().getSelectionModel();

lsm.setSelectionInterval(0,0);

}

public void close() {

if (synthesizer != null) {

synthesizer.close();

}

if (sequencer != null) {

sequencer.close();

}

sequencer = null;

synthesizer = null;

instruments = null;

channels = null;

if (recordFrame != null) {

recordFrame.dispose();

recordFrame = null;

}

/**

* given 120 bpm:

* (120 bpm) / (60 seconds per minute) = 2 beats per second

* 2 / 1000 beats per millisecond

* (2 * resolution) ticks per second

* (2 * resolution)/1000 ticks per millisecond, or

* (resolution / 500) ticks per millisecond

* ticks = milliseconds * resolution / 500

*/

public void createShortEvent(int type, int num) {

ShortMessage message = new ShortMessage();

try {

long millis = System.currentTimeMillis() - startTime;

long tick = millis * sequence.getResolution() / 500;

message.setMessage(type+cc.num, num, cc.velocity);

MidiEvent event = new MidiEvent(message, tick);

track.add(event);

} catch (Exception ex) { ex.printStackTrace(); }

}

/**

* Black and white keys or notes on the piano.

*/

class Key extends Rectangle {

int noteState = OFF;

int kNum;

public Key(int x, int y, int width, int height, int num) {

super(x, y, width, height);

kNum = num;

}

public boolean isNoteOn() {

return noteState == ON;

}

public void on() {

setNoteState(ON);

cc.channel.noteOn(kNum, cc.velocity);

if (record) {

createShortEvent(NOTEON, kNum);

}

public void off() {

setNoteState(OFF);

cc.channel.noteOff(kNum, cc.velocity);

if (record) {

createShortEvent(NOTEOFF, kNum);

}

public void setNoteState(int state) {

noteState = state;

}

} // End class Key

/**

* Piano renders black & white keys and plays the notes for a MIDI

* channel.

*/

class Piano extends JPanel implements MouseListener {

Vector blackKeys = new Vector();

Key prevKey;

final int kw = 16, kh = 80;

public Piano() {

setLayout(new BorderLayout());

setPreferredSize(new Dimension(42*kw, kh+1));

int transpose = 24;

int whiteIDs[] = { 0, 2, 4, 5, 7, 9, 11 };

for (int i = 0, x = 0; i < 6; i++) {

for (int j = 0; j < 7; j++, x += kw) {

int keyNum = i * 12 + whiteIDs[j] + transpose;

whiteKeys.add(new Key(x, 0, kw, kh, keyNum));

}

for (int i = 0, x = 0; i < 6; i++, x += kw) {

int keyNum = i * 12 + transpose;

blackKeys.add(new Key((x += kw)-4, 0, kw/2, kh/2, keyNum+1));

blackKeys.add(new Key((x += kw)-4, 0, kw/2, kh/2, keyNum+3));

x += kw;

blackKeys.add(new Key((x += kw)-4, 0, kw/2, kh/2, keyNum+6));

blackKeys.add(new Key((x += kw)-4, 0, kw/2, kh/2, keyNum+8));

blackKeys.add(new Key((x += kw)-4, 0, kw/2, kh/2, keyNum+10));

}

keys.addAll(blackKeys);

keys.addAll(whiteKeys);

addMouseMotionListener(new MouseMotionAdapter() {

public void mouseMoved(MouseEvent e) {

if (mouseOverCB.isSelected()) {

Key key = getKey(e.getPoint());

if (prevKey != null && prevKey != key) {

prevKey.off();

}

if (key != null && prevKey != key) {

key.on();

}

prevKey = key;

repaint();

}

});

addMouseListener(this);

}

public void mousePressed(MouseEvent e) {

prevKey = getKey(e.getPoint());

if (prevKey != null) {

prevKey.on();

repaint();

}

public void mouseReleased(MouseEvent e) {

if (prevKey != null) {

prevKey.off();

repaint();

}

public void mouseExited(MouseEvent e) {

if (prevKey != null) {

prevKey.off();

repaint();

prevKey = null;

}

public void mouseClicked(MouseEvent e) { }

public void mouseEntered(MouseEvent e) { }

public Key getKey(Point point) {

for (int i = 0; i < keys.size(); i++) {

if (((Key) keys.get(i)).contains(point)) {

return (Key) keys.get(i);

}

return null;

}

public void paint(Graphics g) {

Graphics2D g2 = (Graphics2D) g;

Dimension d = getSize();

g2.setBackground(getBackground());

g2.clearRect(0, 0, d.width, d.height);

g2.setColor(Color.white);

g2.fillRect(0, 0, 42*kw, kh);

for (int i = 0; i < whiteKeys.size(); i++) {

Key key = (Key) whiteKeys.get(i);

if (key.isNoteOn()) {

g2.setColor(record ? pink : jfcBlue);

g2.fill(key);

}

g2.setColor(Color.black);

g2.draw(key);

}

for (int i = 0; i < blackKeys.size(); i++) {

Key key = (Key) blackKeys.get(i);

if (key.isNoteOn()) {

g2.setColor(record ? pink : jfcBlue);

g2.fill(key);

g2.setColor(Color.black);

g2.draw(key);

} else {

g2.setColor(Color.black);

g2.fill(key);

}

} // End class Piano

/**

* Stores MidiChannel information.

*/

class ChannelData {

MidiChannel channel;

boolean solo, mono, mute, sustain;

int velocity, pressure, bend, reverb;

int row, col, num;

public ChannelData(MidiChannel channel, int num) {

this.channel = channel;

this.num = num;

velocity = pressure = bend = reverb = 64;

}

public void setComponentStates() {

table.setRowSelectionInterval(row, row);

table.setColumnSelectionInterval(col, col);

soloCB.setSelected(solo);

monoCB.setSelected(mono);

muteCB.setSelected(mute);

//sustCB.setSelected(sustain);

JSlider slider[] = { veloS, presS, bendS, revbS };

int v[] = { velocity, pressure, bend, reverb };

for (int i = 0; i < slider.length; i++) {

TitledBorder tb = (TitledBorder) slider[i].getBorder();

String s = tb.getTitle();

tb.setTitle(s.substring(0, s.indexOf('=')+1)+s.valueOf(v[i]));

slider[i].repaint();

}

} // End class ChannelData

/**

* Table for 128 general MIDI melody instuments.

*/

class InstrumentsTable extends JPanel {

private String names[] = {

"Piano", "Chromatic Perc.", "Organ", "Guitar",

"Bass", "Strings", "Ensemble", "Brass",

"Reed", "Pipe", "Synth Lead", "Synth Pad",

"Synth Effects", "Ethnic", "Percussive", "Sound Effects" };

private int nRows = 8;

private int nCols = names.length; // just show 128 instruments

public InstrumentsTable() {

setLayout(new BorderLayout());

TableModel dataModel = new AbstractTableModel() {

public int getColumnCount() { return nCols; }

public int getRowCount() { return nRows;}

public Object getValueAt(int r, int c) {

if (instruments != null) {

return instruments[c*nRows+r].getName();

} else {

return Integer.toString(c*nRows+r);

}

public String getColumnName(int c) {

return names[c];

程序有点长，不全部贴出来了，最下面附上下载地址，可以打包下载，下面来看看运行结果：

以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持快网idc。

Java swing实现支持录音等功能的钢琴程序

相关文章

快网idc优惠网

相关文章

微信

快网idc优惠网

QQ交流群
