本文实例为大家分享了spring mvc配置bootstrap教程，供大家参考，具体内容如下
1.下载bootstrap
到下面的链接下载最新的 http://getbootstrap.com/，我下载的版本是bootstrap-3.3.7-dist
2.解压bootstrap-3.3.7-dist.zip,把整个文件夹copy到项目的中。我创建的是maven项目，我的bootstrap资源文件放在webapp\\res文件夹下。
bootstrap-3.3.7-dist本身没有包含jquery.js脚本文件，需要单独下载，下载地址http://jquery.com/download/。
具体文件目录结构请看下图：
3.修改web.xml,对客户端请求的静态资源，如js,css等，交由默认的servlet处理；*.tff,*.woff,*.woff2是bootstrap的font目录下的文件后缀。
?
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
|
<servlet-mapping>
<servlet-name>default</servlet-name>
<url-pattern>*.jpg</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>default</servlet-name>
<url-pattern>*.js</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>default</servlet-name>
<url-pattern>*.css</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>default</servlet-name>
<url-pattern>*.html</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>default</servlet-name>
<url-pattern>*.ttf</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>default</servlet-name>
<url-pattern>*.woff</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>default</servlet-name>
<url-pattern>*.woff2</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>springdispatcherservlet</servlet-name>
<!-- 可以应答所有请求，也就是将所有的请求都交给spring的dispatcherservlet来处理 -->
<url-pattern>/</url-pattern>
</servlet-mapping>
|

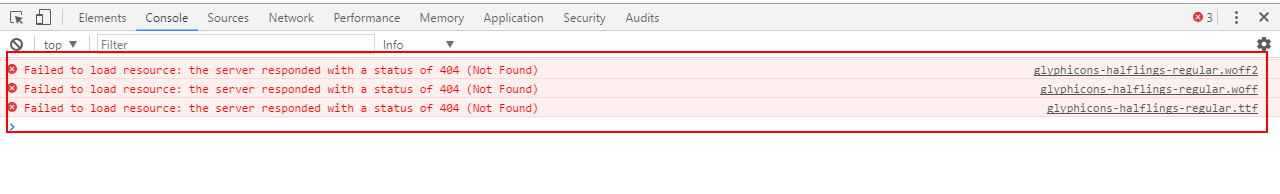

如果不添加，会报404错误，下面的报错的url和截图
http://localhost:8080/maven05/res/bootstrap-3.3.7-dist/fonts/glyphicons-halflings-regular.woff2

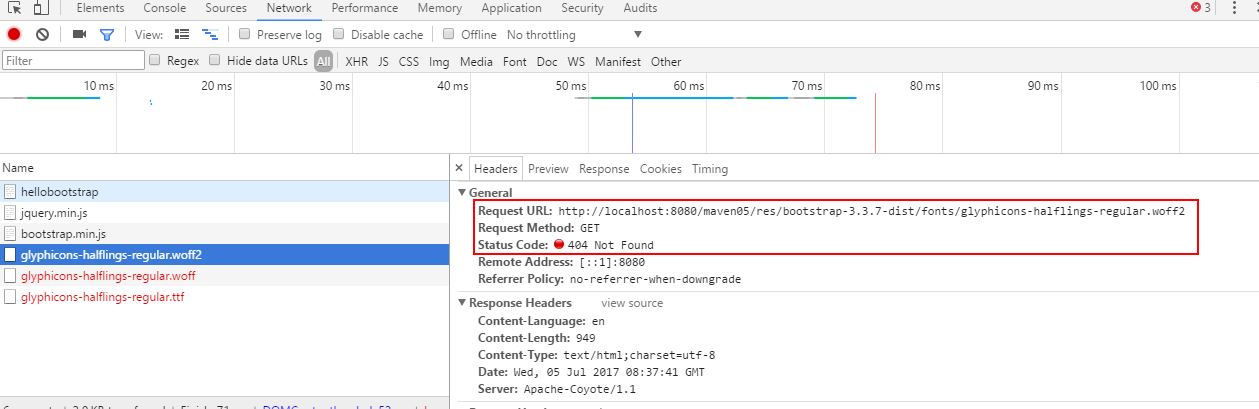

点击进去看详情
4.在web页面中引用bootstrap
这里没有使用cdn，直接引用本地文件
?
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
|
<%@ page language="java" contenttype="text/html; charset=utf-8"
pageencoding="utf-8"%>
<!doctype html public "-//w3c//dtd html 4.01 transitional//en" "http://www.w3.org/tr/html4/loose.dtd">
<html>
<head>
<title>insert title here</title>
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<!-- 引用本地资源 -->
<link rel="stylesheet"
href="res/bootstrap-3.3.7-dist/css/bootstrap.min.css">
<script
src="res/bootstrap-3.3.7-dist/js/jquery.min.js"></script>
<script
src="res/bootstrap-3.3.7-dist/js/bootstrap.min.js"></script>
<!-- 引用cdn资源 -->
<!-- <link rel="stylesheet"
href="http://cdn.static.runoob.com/libs/bootstrap/3.3.7/css/bootstrap.min.css">
<script
src="http://cdn.static.runoob.com/libs/jquery/2.1.1/jquery.min.js"></script>
<script
src="http://cdn.static.runoob.com/libs/bootstrap/3.3.7/js/bootstrap.min.js"></script> -->
</head>
<body>
<p>
<button type="button" class="btn btn-default">
<span class="glyphicon glyphicon-sort-by-attributes"></span>
</button>
<button type="button" class="btn btn-default">
<span class="glyphicon glyphicon-sort-by-attributes-alt"></span>
</button>
<button type="button" class="btn btn-default">
<span class="glyphicon glyphicon-sort-by-order"></span>
</button>
<button type="button" class="btn btn-default">
<span class="glyphicon glyphicon-sort-by-order-alt"></span>
</button>
</p>
<button type="button" class="btn btn-default btn-lg">
<span class="glyphicon glyphicon-user"></span> user
</button>
<button type="button" class="btn btn-default btn-sm">
<span class="glyphicon glyphicon-user"></span> user
</button>
<button type="button" class="btn btn-default btn-xs">
<span class="glyphicon glyphicon-user"></span> user
</button>
</body>
</html>
|
运行效果
5.如果使用cdn，很简单，直接在web页面引用即可，不需要配置web.xml
?
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
|
<%@ page language="java" contenttype="text/html; charset=utf-8"
pageencoding="utf-8"%>
<!doctype html public "-//w3c//dtd html 4.01 transitional//en" "http://www.w3.org/tr/html4/loose.dtd">
<html>
<head>
<title>insert title here</title>
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<!-- 引用本地资源 -->
<!-- <link rel="stylesheet"
href="res/bootstrap-3.3.7-dist/css/bootstrap.min.css">
<script
src="res/bootstrap-3.3.7-dist/js/jquery.min.js"></script>
<script
src="res/bootstrap-3.3.7-dist/js/bootstrap.min.js"></script> -->
<!-- 引用cdn资源 -->
<link rel="stylesheet"
href="http://cdn.static.runoob.com/libs/bootstrap/3.3.7/css/bootstrap.min.css">
<script
src="http://cdn.static.runoob.com/libs/jquery/2.1.1/jquery.min.js"></script>
<script
src="http://cdn.static.runoob.com/libs/bootstrap/3.3.7/js/bootstrap.min.js"></script>
</head>
<body>
<p>
<button type="button" class="btn btn-default">
<span class="glyphicon glyphicon-sort-by-attributes"></span>
</button>
<button type="button" class="btn btn-default">
<span class="glyphicon glyphicon-sort-by-attributes-alt"></span>
</button>
<button type="button" class="btn btn-default">
<span class="glyphicon glyphicon-sort-by-order"></span>
</button>
<button type="button" class="btn btn-default">
<span class="glyphicon glyphicon-sort-by-order-alt"></span>
</button>
</p>
<button type="button" class="btn btn-default btn-lg">
<span class="glyphicon glyphicon-user"></span> user
</button>
<button type="button" class="btn btn-default btn-sm">
<span class="glyphicon glyphicon-user"></span> user
</button>
<button type="button" class="btn btn-default btn-xs">
<span class="glyphicon glyphicon-user"></span> user
</button>
</body>
</html>
|
以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持快网idc。
