jenkins中如何集成commander应用的完整步骤

前言

jenkins 是一款流行的开源持续集成（continuous integration）工具，广泛用于项目开发，具有自动化构建、测试和部署等功能。

最近参加公司的集成测试平台的开发，在开发中遇到了不少问题，两个星期的迭代也即将完成，在这也用这篇博客记录下开发中的问题，供读者参考

公司的应用较多，所以需要了解这几种应用在jenkins中如何做构建，我自己参与的有两种commander的应用，一种是大数据类的，一个是我们服务端架构组的scala应用

1、大数据应用bigdata

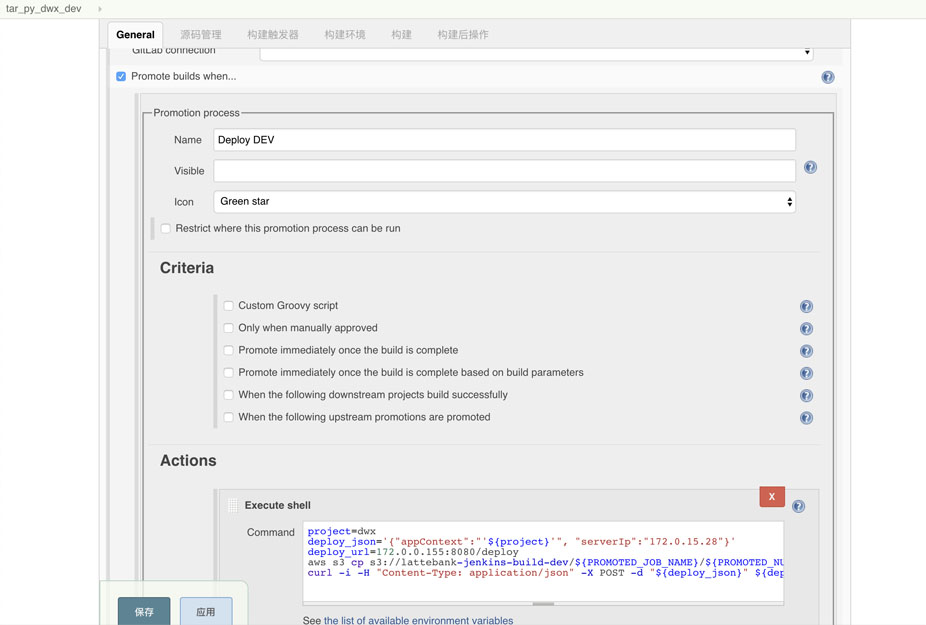

配置如下：

配置文件对应的xml文件：通过crul获取xml配置文件：http://host/job/tar_py_dwx_dev/config.xml

<project>

<actions/>

<description/>

<keepdependencies>false</keepdependencies>

<properties>

<com.dabsquared.gitlabjenkins.connection.gitlabconnectionproperty plugin="gitlab-plugin@1.5.5">

<gitlabconnection/>

</com.dabsquared.gitlabjenkins.connection.gitlabconnectionproperty>

<hudson.plugins.promoted__builds.jobpropertyimpl plugin="promoted-builds@3.1">

<activeprocessnames>

<string>deploy dev</string>

</activeprocessnames>

</hudson.plugins.promoted__builds.jobpropertyimpl>

</properties>

<scm class="hudson.plugins.git.gitscm" plugin="git@3.8.0">

<configversion>2</configversion>

<userremoteconfigs>

<hudson.plugins.git.userremoteconfig>

<url>ssh://git@172.0.10.182:10022/bigdata/dwx.git</url>

<credentialsid>84f4be19-ea8d-4271-8cfb-42af8f507285</credentialsid>

</hudson.plugins.git.userremoteconfig>

</userremoteconfigs>

<branches>

<hudson.plugins.git.branchspec>

<name>*/develop</name>

</hudson.plugins.git.branchspec>

</branches>

<dogeneratesubmoduleconfigurations>false</dogeneratesubmoduleconfigurations>

<submodulecfg class="list"/>

<extensions/>

</scm>

<assignednode>!macmini</assignednode>

<canroam>false</canroam>

<disabled>false</disabled>

<blockbuildwhendownstreambuilding>false</blockbuildwhendownstreambuilding>

<blockbuildwhenupstreambuilding>false</blockbuildwhenupstreambuilding>

<triggers>

<hudson.triggers.scmtrigger>

<spec>h/5 * * * *</spec>

<ignorepostcommithooks>false</ignorepostcommithooks>

</hudson.triggers.scmtrigger>

</triggers>

<concurrentbuild>false</concurrentbuild>

<builders>

<hudson.tasks.shell>

<command>

project=dwx1 cd ${workspace} tar zcvf ${project}.tar.gz * aws s3 cp ${project}.tar.gz s3://lattebank-jenkins-build-dev/${job_base_name}/${build_number}/ --region cn-north-1 rm -rf ${project}.tar.gz

</command>

</hudson.tasks.shell>

</builders>

<publishers/>

<buildwrappers/>

</project>

从xml中获取的信息有点和图中的配置文件有点对应不上

对于promotion的脚本在xml配置文件中是无法获取的，这时候就有一个问题，这种api是无法获取到promotion的的脚本，同时这也给我们的工作带来了极大的挑战，那也意味着单纯的通过这种方法是无法实现commander应用的部署，和通过平台的方式去直接操作jenkins的配置

但经过查询相关的api并不能找到相关的内容，经过不懈的努力，终于找到了和promote build 插件相关的api

查询：http://host/job/jobname/promotion/process/promotionname/config.xml

这个接口能获取到它的xml文件，但是并不能对该配置文件进行增加和修改

对此我自己封装了一些方法：

/**

* @author chenlang

* date 2018/5/7

*/

@slf4j

public class jenkinspromotionutils {

private static final string sub_path_promotion_coommand = "/hudson.plugins.promoted__builds.promotionprocess";

private static final string sub_path_build = "/buildsteps";

private static final string sub_path_builder_shell_command = "/hudson.tasks.shell/command";

private static final string path_promotion_command = sub_path_promotion_coommand + sub_path_build + sub_path_builder_shell_command;

private static string create_promotion_json =

"{'properties':{'stapler-class-bag':'true','hudson-plugins-promoted_builds-jobpropertyimpl':{'promotions':{'activeitems':{'name':'%s','isvisible':'','icon':'star-gold','hasassignedlabel':false,'assignedlabelstring':'','conditions':{'stapler-class-bag':'true'}}}}}}"

;

private static final string content_type = "application/x-www-form-urlencoded";

public static void

updatepromotionshell(document jobconfigdocument, string jobname, jenkinspromotionclient jenkinspromotionclient, string promotionshell, string path)

throws ioexception, documentexception {

if (stringutils.isblank(promotionshell)) {

return;

}

string promotionname = getpromotionname(jobconfigdocument, path);

document document = jenkinspromotionclient.getjobpromotionxml(jobname, promotionname);

document.selectsinglenode(path_promotion_command).settext(promotionshell);

jenkinspromotionclient.updatejob(jobname, promotionname, document.asxml());

}

public static void

createpromotionshell(document jobconfigdocument, string tmpjobname, string jobname, string promotionshell, string path, jenkinspromotionclient jenkinspromotionclient)

throws ioexception, documentexception {

if (stringutils.isblank(promotionshell)) {

return;

}

string promotionname = getpromotionname(jobconfigdocument, path);

document document = jenkinspromotionclient.getjobpromotionxml(tmpjobname, promotionname);

document.selectsinglenode(path_promotion_command).settext(promotionshell);

map<string, string> map = maps.newhashmap();

map.put("content-type", content_type);

map.put("json", string.format(create_promotion_json, promotionname));

try {

jenkinspromotionclient.createjob(jobname, map);

} catch (exception e) {

log.error("初创promotion时失败" + e);

}

jenkinspromotionclient.createjob(jobname, promotionname, document.asxml());

}

public static string getpromotionname(document jobconfigdocument, string path) {

return jobconfigdocument.selectsinglenode(path).gettext();

}

package cn.caijiajia.phoenix.service.jenkins;

import com.offbytwo.jenkins.client.jenkinshttpclient;

import com.offbytwo.jenkins.client.util.encodingutils;

import org.dom4j.document;

import org.dom4j.documentexception;

import org.dom4j.documenthelper;

import org.springframework.beans.factory.annotation.autowired;

import org.springframework.stereotype.component;

import java.io.ioexception;

import java.util.map;

/**

* @author chenlang

* date 2018/5/4

*/

@component

public class jenkinspromotionclient {

@autowired

private jenkinshttpclient jenkinshttpclient;

public jenkinspromotionclient() {

}

/**

* 获取job的promotion配置文件

*

* @param jobname job名称

* @param promotionname promotion名称

* @return

* @throws ioexception

*/

public document getjobpromotionxml(string jobname, string promotionname) throws ioexception, documentexception {

return documenthelper.parsetext(this.getjobxml(jobname, promotionname));

}

/**

* 更新job

*

* @param jobname

* @param promotionname

* @param jobxml

* @throws ioexception

*/

public void updatejob(string jobname, string promotionname, string jobxml) throws ioexception {

this.jenkinshttpclient.post_xml(this.tojobbaseurl(jobname, promotionname) + "/config.xml", jobxml, true);

}

/**

* 添加job脚本

*

* @param jobname

* @param jobxml

* @throws ioexception

*/

public void createjob(string jobname, string promotionname, string jobxml) throws ioexception {

this.jenkinshttpclient.post_xml(this.tojobbaseurl(jobname, promotionname) + "/config.xml", jobxml, true);

}

/**

* 添加promotion的job

*

* @param jobname

* @param map

* @throws ioexception

*/

public void createjob(string jobname, map map) throws ioexception {

this.jenkinshttpclient.post_form("/job/" + encodingutils.encode(jobname) + "/configsubmit?", map, false);

}

private string getjobxml(string jobname, string promotionname) throws ioexception {

return this.jenkinshttpclient.get(this.tojobbaseurl(jobname, promotionname) + "/config.xml");

}

private string tojobbaseurl(string jobname, string promotionname) {

return "/job/" + encodingutils.encode(jobname) + "/promotion/process/" + promotionname;

}

/**

* promotion脚本的构建

* @param jobname

* @param promotionname

* @param version

* @param isfirstbuild

* @throws ioexception

*/

public void build(string jobname,string promotionname,integer version,boolean isfirstbuild) throws ioexception{

if (isfirstbuild) {

this.jenkinshttpclient.post("/job/"+ encodingutils.encode(jobname) + "/"+version+"/promotion/forcepromotion?name="+promotionname+"&json=%7b%7d&submit=force promotion");

} else {

this.jenkinshttpclient.post("/job/"+ encodingutils.encode(jobname) + "/"+version+"/promotion/"+promotionname+"/build?json=%7b%7d&submit=re-execute promotion");

}

其中的方法封装了对promote build插件中关于配置的增删改查，以及promotion脚本的构建
