Springboot集成Spring Security实现JWT认证的步骤详解

1 简介

Spring Security作为成熟且强大的安全框架，得到许多大厂的青睐。而作为前后端分离的SSO方案，JWT也在许多项目中应用。本文将介绍如何通过Spring Security实现JWT认证。

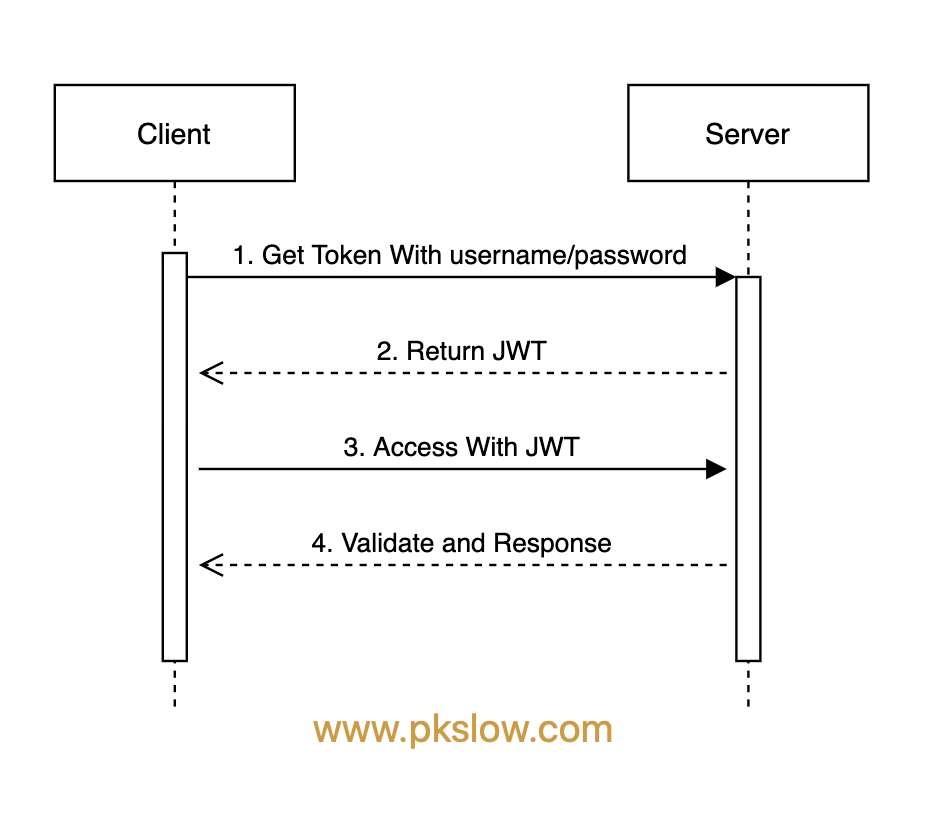

用户与服务器交互大概如下：

客户端获取JWT，一般通过POST方法把用户名/密码传给server；
服务端接收到客户端的请求后，会检验用户名/密码是否正确，如果正确则生成JWT并返回；不正确则返回错误；
客户端拿到JWT后，在有效期内都可以通过JWT来访问资源了，一般把JWT放在请求头；一次获取，多次使用；
服务端校验JWT是否合法，合法则允许客户端正常访问，不合法则返回401。

2 项目整合

我们把要整合的Spring Security和JWT加入到项目的依赖中去：

<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-security</artifactId>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt</artifactId>
<version>0.9.1</version>
</dependency>

2.1 JWT整合

2.1.1 JWT工具类

JWT工具类起码要具有以下功能：

根据用户信息生成JWT；
校验JWT是否合法，如是否被篡改、是否过期等；
从JWT中解析用户信息，如用户名、权限等；

具体代码如下：

@Component
public class JwtTokenProvider {
@Autowired JwtProperties jwtProperties;
@Autowired
private CustomUserDetailsService userDetailsService;
private String secretKey;
@PostConstruct
protected void init() {
secretKey = Base64.getEncoder().encodeToString(jwtProperties.getSecretKey().getBytes());
}
public String createToken(String username, List<String> roles) {
Claims claims = Jwts.claims().setSubject(username);
claims.put("roles", roles);
Date now = new Date();
Date validity = new Date(now.getTime() + jwtProperties.getValidityInMs());
return Jwts.builder()//
.setClaims(claims)//
.setIssuedAt(now)//
.setExpiration(validity)//
.signWith(SignatureAlgorithm.HS256, secretKey)//
.compact();
}
public Authentication getAuthentication(String token) {
UserDetails userDetails = this.userDetailsService.loadUserByUsername(getUsername(token));
return new UsernamePasswordAuthenticationToken(userDetails, "", userDetails.getAuthorities());
}
public String getUsername(String token) {
return Jwts.parser().setSigningKey(secretKey).parseClaimsJws(token).getBody().getSubject();
}
public String resolveToken(HttpServletRequest req) {
String bearerToken = req.getHeader("Authorization");
if (bearerToken != null && bearerToken.startsWith("Bearer ")) {
return bearerToken.substring(7);
}
return null;
}
public boolean validateToken(String token) {
try {
Jws<Claims> claims = Jwts.parser().setSigningKey(secretKey).parseClaimsJws(token);
if (claims.getBody().getExpiration().before(new Date())) {
return false;
}
return true;
} catch (JwtException | IllegalArgumentException e) {
throw new InvalidJwtAuthenticationException("Expired or invalid JWT token");
}
}
}

工具类还实现了另一个功能：从HTTP请求头中获取JWT。

2.1.2 Token处理的Filter

Filter是Security处理的关键，基本上都是通过Filter来拦截请求的。首先从请求头取出JWT，然后校验JWT是否合法，如果合法则取出Authentication保存在SecurityContextHolder里。如果不合法，则做异常处理。

public class JwtTokenAuthenticationFilter extends GenericFilterBean {
private JwtTokenProvider jwtTokenProvider;
public JwtTokenAuthenticationFilter(JwtTokenProvider jwtTokenProvider) {
this.jwtTokenProvider = jwtTokenProvider;
}
@Override
public void doFilter(ServletRequest req, ServletResponse res, FilterChain filterChain)
throws IOException, ServletException {
HttpServletRequest request = (HttpServletRequest) req;
HttpServletResponse response = (HttpServletResponse) res;
try {
String token = jwtTokenProvider.resolveToken(request);
if (token != null && jwtTokenProvider.validateToken(token)) {
Authentication auth = jwtTokenProvider.getAuthentication(token);
if (auth != null) {
SecurityContextHolder.getContext().setAuthentication(auth);
}
}
} catch (InvalidJwtAuthenticationException e) {
response.setStatus(HttpStatus.UNAUTHORIZED.value());
response.getWriter().write("Invalid token");
response.getWriter().flush();
return;
}
filterChain.doFilter(req, res);
}
}

对于异常处理，使用@ControllerAdvice是不行的，应该这个是Filter，在这里抛的异常还没有到DispatcherServlet，无法处理。所以Filter要自己做异常处理：

catch (InvalidJwtAuthenticationException e) {
response.setStatus(HttpStatus.UNAUTHORIZED.value());
response.getWriter().write("Invalid token");
response.getWriter().flush();
return;
}

最后的return不能省略，因为已经要把输出的内容给Response了，没有必要再往后传递，否则报错

java.lang.IllegalStateException: getWriter() has already been called

2.1.3 JWT属性

JWT需要配置一个密钥来加密，同时还要配置JWT令牌的有效期。

@Configuration
@ConfigurationProperties(prefix = "pkslow.jwt")
public class JwtProperties {
private String secretKey = "pkslow.key";
private long validityInMs = 3600_000;
//getter and setter
}

2.2 Spring Security整合

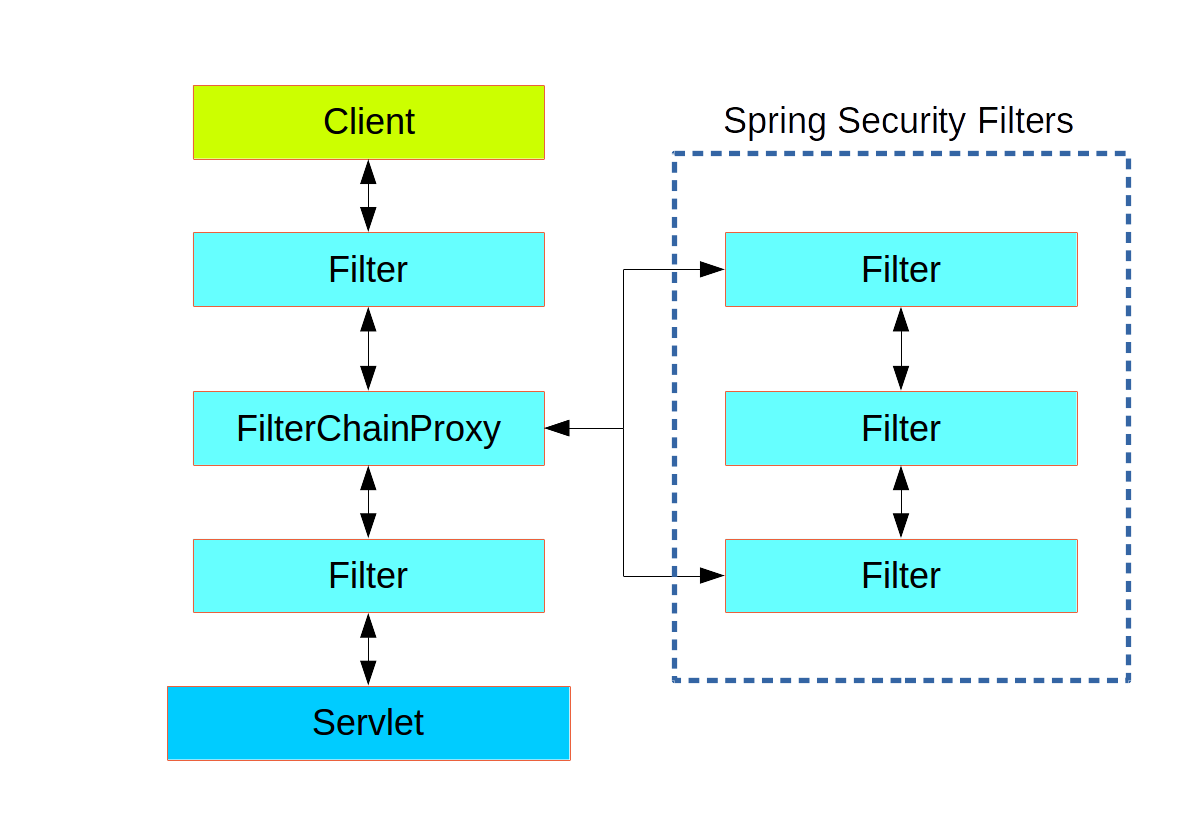

Spring Security的整个框架还是比较复杂的，简化后大概如下图所示：

它是通过一连串的Filter来进行安全管理。细节这里先不展开讲。

2.2.1 WebSecurityConfigurerAdapter配置

这个配置也可以理解为是FilterChain的配置，可以不用理解，代码很好懂它做了什么：

@Configuration
public class SecurityConfig extends WebSecurityConfigurerAdapter {
@Autowired
JwtTokenProvider jwtTokenProvider;
@Bean
@Override
public AuthenticationManager authenticationManagerBean() throws Exception {
return super.authenticationManagerBean();
}
@Bean
public PasswordEncoder passwordEncoder() {
return NoOpPasswordEncoder.getInstance();
}
@Override
protected void configure(HttpSecurity http) throws Exception {
http
.httpBasic().disable()
.csrf().disable()
.sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS)
.and()
.authorizeRequests()
.antMatchers("/auth/login").permitAll()
.antMatchers(HttpMethod.GET, "/admin").hasRole("ADMIN")
.antMatchers(HttpMethod.GET, "/user").hasRole("USER")
.anyRequest().authenticated()
.and()
.apply(new JwtSecurityConfigurer(jwtTokenProvider));
}
}

这里通过HttpSecurity配置了哪些请求需要什么权限才可以访问。

/auth/login用于登陆获取JWT，所以都能访问；
/admin只有ADMIN用户才可以访问；
/user只有USER用户才可以访问。

而之前实现的Filter则在下面配置使用：

public class JwtSecurityConfigurer extends SecurityConfigurerAdapter<DefaultSecurityFilterChain, HttpSecurity> {
private JwtTokenProvider jwtTokenProvider;
public JwtSecurityConfigurer(JwtTokenProvider jwtTokenProvider) {
this.jwtTokenProvider = jwtTokenProvider;
}
@Override
public void configure(HttpSecurity http) throws Exception {
JwtTokenAuthenticationFilter customFilter = new JwtTokenAuthenticationFilter(jwtTokenProvider);
http.exceptionHandling()
.authenticationEntryPoint(new JwtAuthenticationEntryPoint())
.and()
.addFilterBefore(customFilter, UsernamePasswordAuthenticationFilter.class);
}
}

2.2.2 用户从哪来

通常在Spring Security的世界里，都是通过实现UserDetailsService来获取UserDetails的。

@Component
public class CustomUserDetailsService implements UserDetailsService {
private UserRepository users;
public CustomUserDetailsService(UserRepository users) {
this.users = users;
}
@Override
public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
return this.users.findByUsername(username)
.orElseThrow(() -> new UsernameNotFoundException("Username: " + username + " not found"));
}
}

对于UserRepository，可以从数据库中读取，或者其它用户管理中心。为了方便，我使用Map放了两个用户：

@Repository
public class UserRepository {
private static final Map<String, User> allUsers = new HashMap<>();
@Autowired
private PasswordEncoder passwordEncoder;
@PostConstruct
protected void init() {
allUsers.put("pkslow", new User("pkslow", passwordEncoder.encode("123456"), Collections.singletonList("ROLE_ADMIN")));
allUsers.put("user", new User("user", passwordEncoder.encode("123456"), Collections.singletonList("ROLE_USER")));
}
public Optional<User> findByUsername(String username) {
return Optional.ofNullable(allUsers.get(username));
}
}

3 测试

完成代码编写后，我们来测试一下：

（1）无JWT访问，失败

curl http://localhost:8080/admin
{"timestamp":"2021-02-06T05:45:06.385+0000","status":403,"error":"Forbidden","message":"Access Denied","path":"/admin"}
$ curl http://localhost:8080/user
{"timestamp":"2021-02-06T05:45:16.438+0000","status":403,"error":"Forbidden","message":"Access Denied","path":"/user"}

（2）admin获取JWT，密码错误则失败，密码正确则成功

$ curl http://localhost:8080/auth/login -X POST -d '{"username":"pkslow","password":"xxxxxx"}' -H 'Content-Type: application/json'
{"timestamp":"2021-02-06T05:47:16.254+0000","status":403,"error":"Forbidden","message":"Access Denied","path":"/auth/login"}
$ curl http://localhost:8080/auth/login -X POST -d '{"username":"pkslow","password":"123456"}' -H 'Content-Type: application/json'
eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJwa3Nsb3ciLCJyb2xlcyI6WyJST0xFX0FETUlOIl0sImlhdCI6MTYxMjU5MDYxNCwiZXhwIjoxNjEyNTkxMjE0fQ.d4Gi50aaOsHHqpM0d8Mh1960otnZf7rlE3x6xSfakVo

（3）admin带JWT访问/admin，成功；访问/user失败

$ curl http://localhost:8080/admin -H 'Authorization: Bearer eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJwa3Nsb3ciLCJyb2xlcyI6WyJST0xFX0FETUlOIl0sImlhdCI6MTYxMjU5MDYxNCwiZXhwIjoxNjEyNTkxMjE0fQ.d4Gi50aaOsHHqpM0d8Mh1960otnZf7rlE3x6xSfakVo'
you are admin
$ curl http://localhost:8080/user -H 'Authorization: Bearer eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJwa3Nsb3ciLCJyb2xlcyI6WyJST0xFX0FETUlOIl0sImlhdCI6MTYxMjU5MDYxNCwiZXhwIjoxNjEyNTkxMjE0fQ.d4Gi50aaOsHHqpM0d8Mh1960otnZf7rlE3x6xSfakVo'
{"timestamp":"2021-02-06T05:51:23.099+0000","status":403,"error":"Forbidden","message":"Forbidden","path":"/user"}

（4）使用过期的JWT访问，失败

$ curl http://localhost:8080/admin -H 'Authorization: Bearer eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJwa3Nsb3ciLCJyb2xlcyI6WyJST0xFX0FETUlOIl0sImlhdCI6MTYxMjU5MDQ0OSwiZXhwIjoxNjEyNTkwNTA5fQ.CSaubE4iJcYATbLmbb59aNFU1jNCwDFHUV3zIakPU64'
Invalid token

4 总结

代码请查看：https://github.com/LarryDpk/pkslow-samples

以上就是Springboot集成Spring Security实现JWT认证的步骤详解的详细内容，更多关于Springboot集成Spring Security的资料请关注快网idc其它相关文章！
